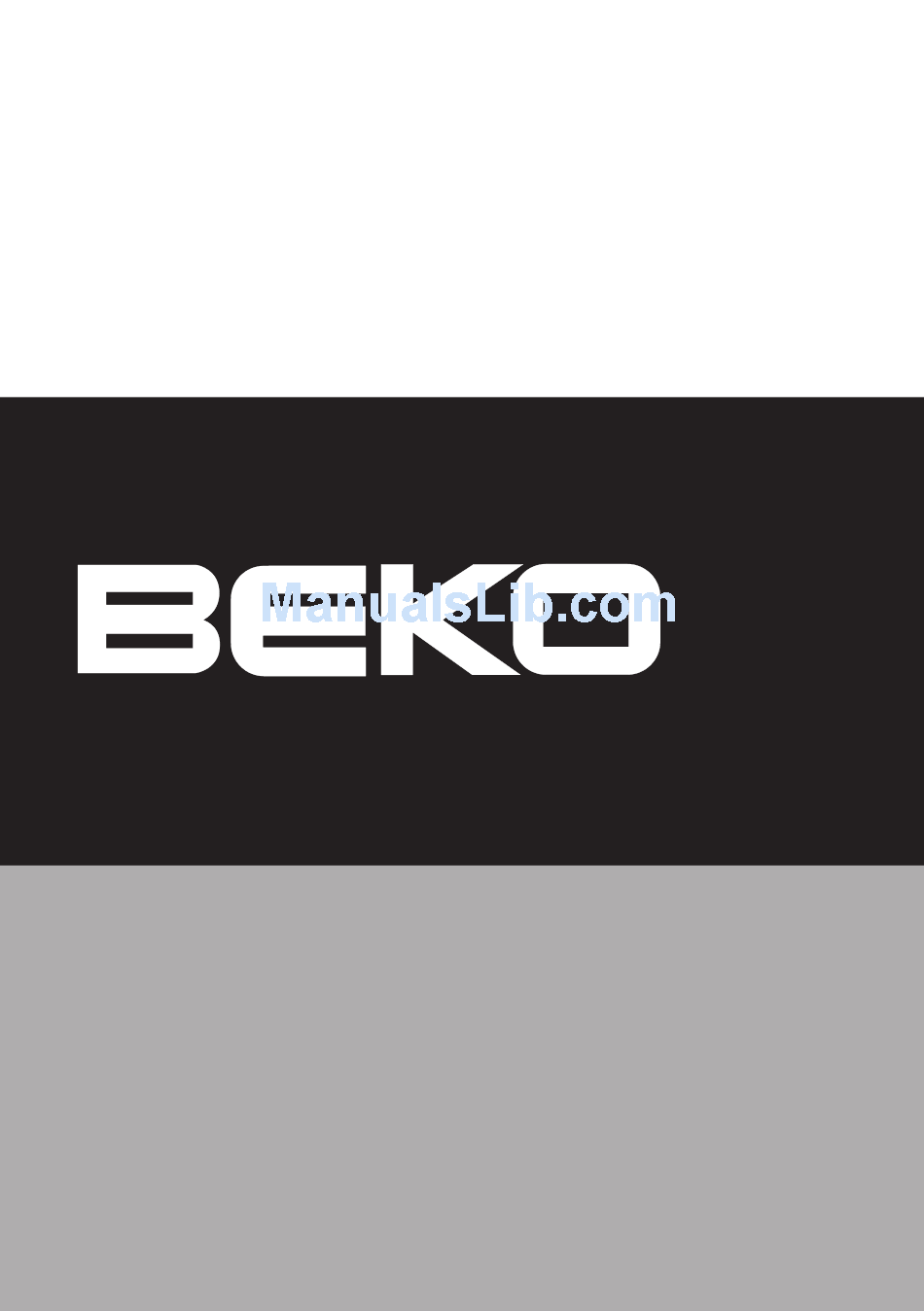

Page 1: Washing Machine
Washing Machine WML 15065 J WML 15085 J WML 15105 J... - Page 2 Please read this manual first! Dear Customer, We hope that your product which has been manufactured in modern facilities and passed through a strict quality control procedure will give you the best results. Therefore, we advise you to read through this manual carefully before using your product and keep it for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Your Washing Machine Changing the program after the program has started Overview Child-proof lock Specifications Ending the program through canceling 2 Warnings End of Program General Safety First Use 6 Quick instructions for Intended use daily use Safety instructions If there are children in your house... -
Page 4: Your Washing Machine
Overview 1 - Detergent Drawer 4 - Control Panel 2 - Door 5 - Filter Cap 3 - Top Lid 6 - Height-adjustable feet... -
Page 5: Specifications
Specifications Models WML 15065 J WML 15085 J WML 15105 J Maximum dry laundry capacity (kg) Height (cm) Width (cm) Depth (cm) Net Weight (kg) Electricity (V/Hz.) 230 V / 50hz 230 V / 50hz 230 V / 50Hz Total Current (A) Total Power (W) 2200 2200 2200 Spinning cycle (rpm max.) 1000 Specifications of this appliance may change without notice to improve the quality of the product. -
Page 6: Warnings
Warnings Please read the following information. for 3 seconds to cancel the program Otherwise, there may be the risk of set in your machine before calling personal injury or material damage. the authorized service. Moreover, any warranty and reliability First Use commitment will become void. • To prepare your machine for General Safety washing, carry out your first washing • Never place your machine on a process without loading your carpet covered floor. Otherwise,... -
Page 7: Safety Instructions
companies that produce detergents putting yours and other’s lives in for your machine. danger. • This appliance is not intended for • For malfunctions that cannot use by persons (including children) be solved by information in the with reduced physical, sensory operating manual: or mental capabilities, or lack of Turn off the machine, unplug it, turn experience and knowledge, unless off the water tap and contact an they have been given supervision... -
Page 8: Installation
Installation C Keep the transportation safety Removing packaging bolts in a safe place to reuse when reinforcement the washing machine needs to be Tilt the machine to remove the moved again in the future. packaging reinforcement. Remove the C Never move the appliance without packaging reinforcement by pulling the the transportation safety bolts ribbon. -
Page 9: Connecting To The Water Supply
Connecting to the water supply. Important: • The water supply pressure required to run the machine must be 1-10 bar (0,1 – 1,0 MPa). Attach a pressure-reducing valve if the water pressure is higher. • Models with a single water inlet • Connect the special hoses supplied should not be connected to the with the machine to the water intake hot water tap. -
Page 10: Electrical Connection
• In case the hose is elevated B The appliance must not be operated after laying it on the floor level or unless it is repaired! There is the risk close to the ground (less than of electric shock! 40 cm above the ground), water Destroying the packaging discharge becomes more difficult and the laundry may come out wet. material Therefore, the heights described in Packaging material can be dangerous to... -
Page 11: Initial Preparations For Washing
Initial preparations for washing Sorting the laundry • Empty pockets and remove all foreign objects such as coins, pens • Sort the laundry according to type and paper clips. If possible, turn of fabric, color, and degree of soiling pockets out and brush. and permissible water temperature. • Place small items like infants’ Always follow the advice on the socks and nylon stockings, etc. -
Page 12: Loading Door
Following weights are given as Detergent, softener and other examples. cleaning agents Add detergent and softener before Laundry type Weight (gr.) starting the washing programme. Bathrobe 1200 Never open the detergent dispenser Napkin drawer while the washing programme is Duvet cover running! Bed Sheet When using a programme without... - Page 13 package. Detergent quantity for prewashing 1/2 measure for main washing 1 measure an additional 1/2 with hard water measure Softener Put the softener into the softener compartment of the detergent dispenser. • Use the proportions recommended on the packet. • Never exceed the (> max <) level marking; otherwise, the softener will be wasted without being used. • If the softener has lost its fluidity, dilute dense softener with water before placing it in the detergent drawer.
-
Page 14: Selecting A Program And Operating Your Machine
Selecting a Program and Operating Your Machine Control panel 7 - On/Off Button 8 - Door Indicator * 9 - Program Follow-up Indicator 10 - Spin Speed Adjustment Knob * 11 - Temperature Adjustment Knob * 12 - Program Selection Knob 13 - Auxiliary Function Keys 14 - Start/Pause/Cancel Button * According to your machine’s model... -
Page 15: Turning The Machine On
Turning the machine on choosing a program. C Always select the lowest required You can prepare the machine for temperature. Higher temperature program selection by pressing the means higher power consumption. the “On/Off” button. When the “On/ C For further program details, see, Off” button is pressed, the “Lid” light “Program Selection Table” illuminates indicating that the door is unlocked. Press the “On/Off” button Main programs again to shut down the machine. -
Page 16: Spin Speed Selection
washing movements and does not make speed selection knob, the machine will intermediate spinning compared to the spin in the maximum possible rpm in the synthetic program. It must be used for default setting of the selected program. clothes for which sensitive washing is recommended. -
Page 17: Program Selection And Consumption Table
Program selection and consumption table Programme Cottons 1.65 • • • • • • Cottons 60** 0.95 • • • • • • Cottons 0.69 • • • • • • Synthetics 0.92 • • • • • • Synthetics 0.56 •... -
Page 18: Auxiliary Functions
Auxiliary functions Cancel” button for 3 sec. • In the machines equipped with spin Auxiliary function selection keys speed selection knob or button, you • Desired auxiliary function depending can spin by selecting the desired on the program is selected. spin speed and press “Start/Pause/ • Some combinations cannot be Cancel” button. selected together. • As for machines not equipped with • Warning signal on the selected a spin speed selection knob, you... -
Page 19: Changing The Program After The Program Has Started
The “Wash” light on the program follow- rotating the program knob. up indicator illuminates when “Start/ Press “Start/Pause/Cancel” button to Pause/Cancel” button is pressed after start the program. selecting the washing program. The “Program finished” lamp illuminates C The program which is selected and the “Wash” light will fade when the first will go on even if the program program comes to an end. The “Lid” selection button is moved and light flashes. Meanwhile, the door will another program mode is selected stay locked for your safety and when it... -
Page 20: Child-Proof Lock
Laundry may be added or taken out by process is over and the “Lid” light opening the door. If the “Lid” lamp does will start flashing. not light up continuously at the end of • “Lid” lamp will light up continuously this time, the water level in the machine when the door is unlocked. You can is not suitable and laundry cannot be select and start a new program. added. You can resume the program • If the program is cancelled in the by pressing the “Start/Pause/Cancel”... -
Page 21: Quick Instructions For Daily Use
Quick instructions for daily use Preparation 1. Turn the tap on completely. Check if C Machine allows adding more laundry the hoses are connected tightly. during a later step only if the water 2. Place the laundry in the machine. level is low enough to open the 3. Add detergent and softener. loading door or if the temperature in the machine is low enough. - Page 22 3. Set the spin speed if spin speed adjustment is available on your machine. 4. Press “Start/Pause/Cancel” button. After the program is finished 1. “Program finished” lamp will light up on the program follow-up indicator. The lid can be opened after 2 minutes when the “Program Finished” and “Lid” lamps light up continuously. 2. Press the On/Off button to shut down the machine. 3.
-
Page 23: Cleaning And Care
Cleaning and care C Foreign metal substances in your Detergent drawer machine can cause rust stains. In Remove any powder residue buildup in such cases: the drawer. To do this; Clean the drum with a stainless steel 1. Press the dotted point on the cleaning agent. Never use steel wool siphon in the softener compartment or wire wool. -
Page 24: Draining Any Remaining Water And Cleaning The Pump Filter
• If the filters are very dirty, you can pull them out by means of pliers and clean them. • Take out the filters on the flat ends of the water intake hoses together with the gaskets and clean thoroughly under streaming water. • Replace the gaskets and filters carefully and tighten the hose nuts If it is composed of one piece, hold it by hand. - Page 25 replace the plug, pour the water out, then resume the draining process. • After draining process is completed, replace the plug into the end of the hose and fit the hose back into its place. If your product is not supplied with an emergency drain hose, do the following as shown in the figure below: • Place a large container in front of the filter to receive water flowing from...
-
Page 26: Troubleshooting
Solution suggestions for problems Cause Explanation / Suggestion Programme cannot be started or selected. Machine may have switched to Bring your machine to factory settings by turning self protection mode due to an the programme selection knob. (see, Ending the infrastructure problem (such as line programme through Cancelling) voltage, water pressure, etc.). Water in the machine. There may be some water in your machine when you receive it. This is It is not harmful to your machine. - Page 27 The door is jammed. - Water level might be above the lower level of the door. - Machine might be heating up the water or it may be at the spinning - Run either the “Pump” or “Spin” programme. cycle. - Wait until the process is over. - Due to an electrical mechanism, - Wait until the process is over.
- Page 28 It continuously washes. Remaining time does not count down. - The machine will wait until there is sufficient In the case of a paused countdown amount of water to avoid poor washing results due while taking in water: to lack of water. Then the timer will start to count - Timer will not countdown until the down.
- Page 29 - Washing performance is poor: Oily stains appear on laundry. - Washing performance is poor: Bad odour - Such odours and bacteria layers are formed on the drum as a result of continuous washing at lower temperatures and/or in short programmes. - Oily accumulations on the drum may - Leave the detergent dispenser drawer as well have stuck to the laundry. as the loading door of the machine ajar after each - Oily accumulations on the drum may washing.
- Page 30 Clothes do not smell like the softener. - If the water hardness is higher, using insufficient amount of detergent can cause the laundry to become stiff in time. Use appropriate amount of detergent according to the water hardness. - Insufficient amount of detergent used. - If detergent is put in the prewash compartment - The detergent was placed into the although prewash cycle is not selected, machine...
- Page 31 The plug might not be plugged in the mains Plug should be checked. outlet. Machine does Fuse may have blown. Fuse should be checked. work. No light is on. Electricity may be cut off. Power should be checked. The “On/Off” button might This button must be pressed. have not been pressed. The machine did not start after the...
