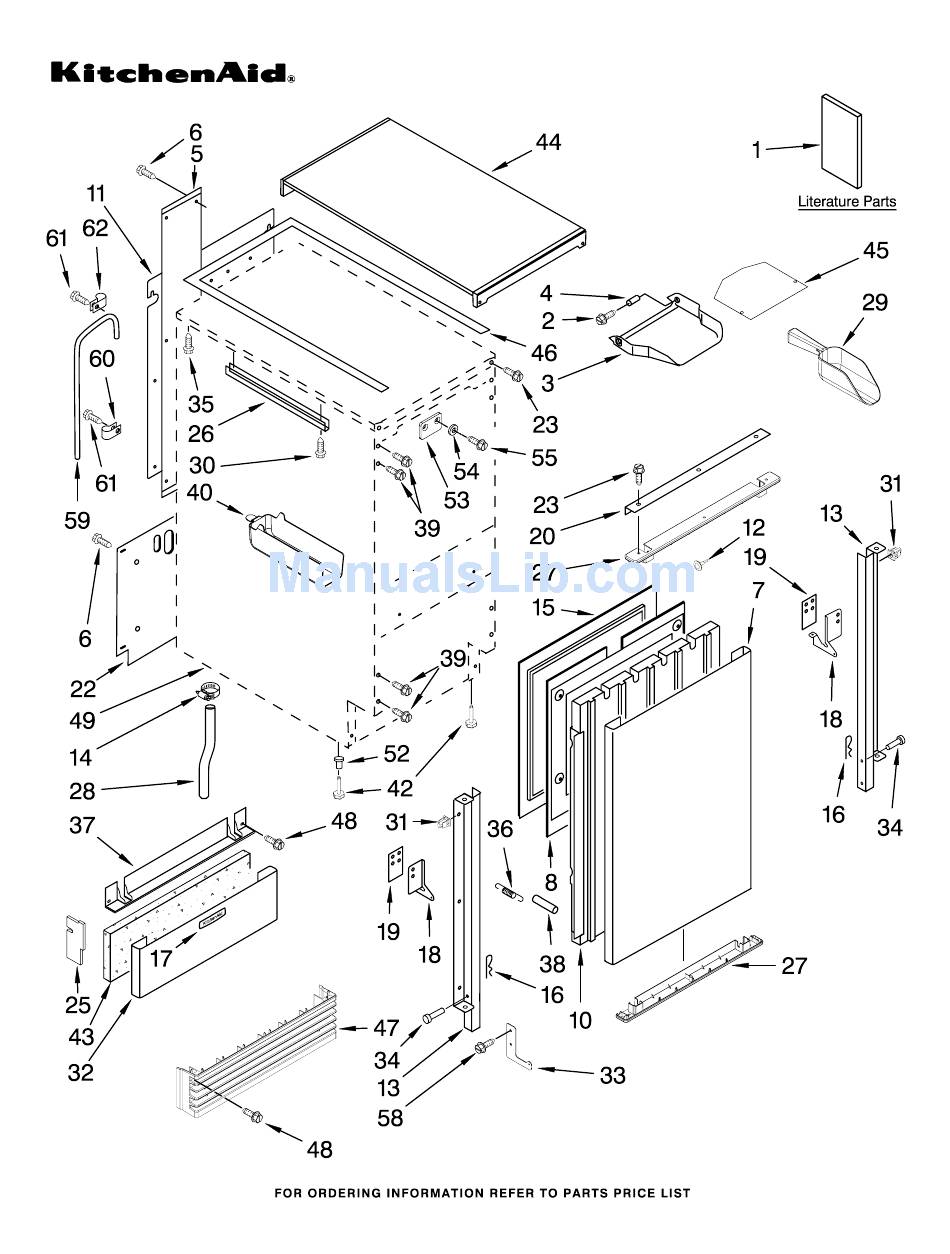

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS18PNTW1, KUIS18PNTB1 (White) (Black) 5−09 Litho In U.S.A. (rrm) (psw) Part No. W10165877 Rev. A...
- Page 2 941839 Hole Plug Bracket, Door 2217466 (Left Side) 2217465 (Right Side) 489503 Clamp 2217295 Gasket, Door 2208535 Clip Nameplate W10046670 White W10046640 Black For Models: KUIS18PNTW1, KUIS18PNTB1 (White) (Black) Illus. Part DESCRIPTION Hinge 2208425 (Left Side) 2208426 (Right Side) 2208401 Shim, Hinge...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS18PNTW1, KUIS18PNTB1 (White) (Black) W10165877...
- Page 4 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS18PNTW1, KUIS18PNTB1 (White) (Black) Illus. Part DESCRIPTION 1 W10159841 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water 5 W10218037 Evaporator 2313705 Pump, Drain 2313851 Tube, Reservoir Pump 2172593 Tube, Water Fill...
-
Page 5: Pump Parts
W10165877 PUMP PARTS For Models: KUIS18PNTW1, KUIS18PNTB1 (White) (Black) Illus. Part DESCRIPTION 2313628 Pump−Recirculating 3400884 Screw 8−18 x 5/8 2185677 Cover, Pump 2313844 Bracket, Connector Assembly 2313627 Bracket−Pump 2313643 Sensor−Water Level 2310092 Wiring Harness Main To Pump 2313702 Pump Assembly... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS18PNTW1, KUIS18PNTB1 (White) Illus. Part DESCRIPTION 1 W10139127 Box, Control 2310139 Transformer 2304122 Assembly, Switch (ALSO ORDER #4) 2313693 Overlay 5 W10122069 Control Board 2149705 Switch, Plunger Grid/ Light 2187585 Wire Assy−Active Overlay Jumper 745362 Bulb... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS18PNTW1, KUIS18PNTB1 (White) (Black) W10165877... - Page 8 UNIT PARTS For Models: KUIS18PNTW1, KUIS18PNTB1 (White) (Black) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2188935 Blade, Fan 2315558 Motor & Mounting Plate Assembly 5 W10139121 Wiring Harness, Complete Unit (Includes Power Cord) 304392 Screw 8−18 x 1/2...
-
Page 9: Optional Parts
W10165877 OPTIONAL PARTS For Models: KUIS18PNTW1, KUIS18PNTB1 (White) (Black) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs. 3/16" x 7") 479976 Kit, Insulation (5 Pcs.
