Control Contractor 40 Series in-ceiling loudspeakers
include Euroblock locking input connectors that allow the
system to be "pre-wired".

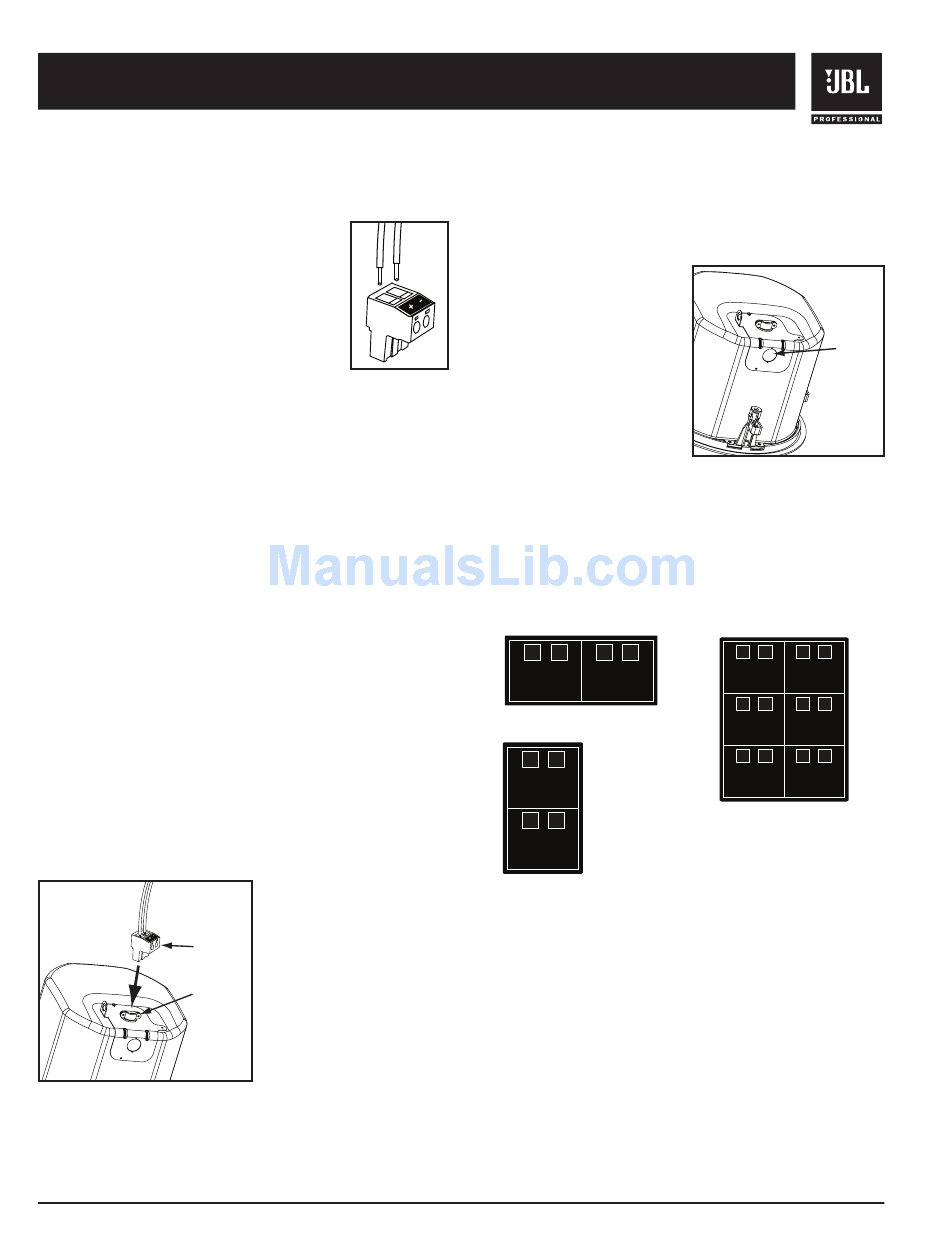

Connecting the Wiring to the Euroblock
-- Connect the wiring to the removable
locking connector that is INCLUDED with
the speaker by stripping the insulation
back about 5 mm (about 3/16 inch),
inserting the bare end of wire into the
connector and screwing down the hold-
down screw until tight using a small
flatblade screwdriver. Tighten any unused
screws to avoid vibration. Using terminal
block connectors allows the system to be pre-wired before
final installation of the product.
When wiring Control Contractor 40 Series loudspeakers,
always use proper electrical wiring practices in accordance
with your area's building codes and regulations.
Connecting the Input Terminal Block on Control
Contractor 40 Series Loudspeakers -- The input terminal
cover on all Control Contractor 40 Series are fitted with
a conduit connector for securing wiring conduit to and
from the unit. To wire the unit:
1. Loosen the screw on top of the input terminal cover and
then remove (and save) the input terminal cover screw on
the side of the can.
2. Swing open the input terminal cover and remove the
-
+
+
euroblock connector.
Loop
Loop
IN
IN
Thru
Thru
3. Insert the bare ends of wire into the Euroblock connector
and secure the wires with the hold-down screws. (see
Connecting the Wiring to the Euroblock)
Euroblock
Connector
Conduit
Connector
WIRING INSTRUCTIONS
2-pin Connector
-
4. Loosen the conduit
connector on the input
terminal cover and insert
the
wired
euroblock
connector
through
-
-
+
+
the conduit connector
Sat 3
Sat 4
opening.
Connect
the euroblock to the
+
-
+
-
matching receptacle.
Sat 1
Sat 2
+
-
+
-
Loop
Loop
IN
IN
Thru
Thru
5. Close the input terminal cover and tighten the terminal cover
screws.
6. Allowing sufficient strain relief slack for the input wiring and
re-tighten the conduit connector on the terminal cover.
NOTE: The
input
terminal
cover on Control Contractor 40
Series loudspeakers includes
a .75 in (19 mm) knockout for
an additional conduit clamp.
This knockout point can be
used in addition to the conduit
connector located on the top of
the can and is useful for wiring
loop-thru runs or when access
is limited on the top of the can .
+
-
IN
IN
Guide to Connection Pins on Control 40 Loudspeakers -- There
are two (2) removable locking input connectors with two (2)
terminals on each for the Control 42C, Control 47C/T, Control
47LP and Control 47HC and six (6) terminals on the Control
40CS/T. The pin functions are listed on the label located on the
can.
Control 42C:
+
-
+
-
Loop
Loop
IN
IN
Thru
Thru
Control 45C/T, 47C/T, LP & HC:
+
-
IN
IN
+
-
Loop
Loop
Thru
Thru
To wire Control 40 Series loudspeakers simply connect the
positive wire to the "+" pin and connect the negative wire to
the "-" pin. The "IN" pins are paralled to the "LOOP THRU" pins (+
and - respectively) inside the loudspeaker. The "Loop Thru" pins
allow a parallel connection to an additional loudspeaker.
To select the operating mode or desired output tap of the
loudspeaker, simply rotate the tap selector switch located on
the front of the baffle to the desired setting.
Note: Both 70V/(100V) connections and low impedance
connections are made via the same input pins. When using the
transformer tap selections, be sure that the power amplifier is
set on 70V/(100V) mode and the leads feeding the system are
connected to 70V/(100V) outputs on the amplifier.
JBL Professional Control Contractor 40 Series
Knockout
+
-
Loop
Loop
Thru
Thru
Control 40CS/T:
+
-
+
-
Sat 3
Sat 4
+
-
+
-
Sat 1
Sat 2
+
-
+
-
Loop
Loop
IN
IN
Thru
Thru
-
-
+
+
Sat 3
Sat 4
-
-
+
+
Sat 1
Sat 2
+
-
+
-
Loop
Loop
IN
IN
Thru
Thru
+
I
+
Lo
Th
+
-
IN
IN
+
-
Loop
Loop
Thru
Thru
5
