KitchenAid KUIC18PNTS2 Parts List

Ice cube maker (stainless steel)
Hide thumbs Also See for KUIC18PNTS2:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: Use and Care Manual

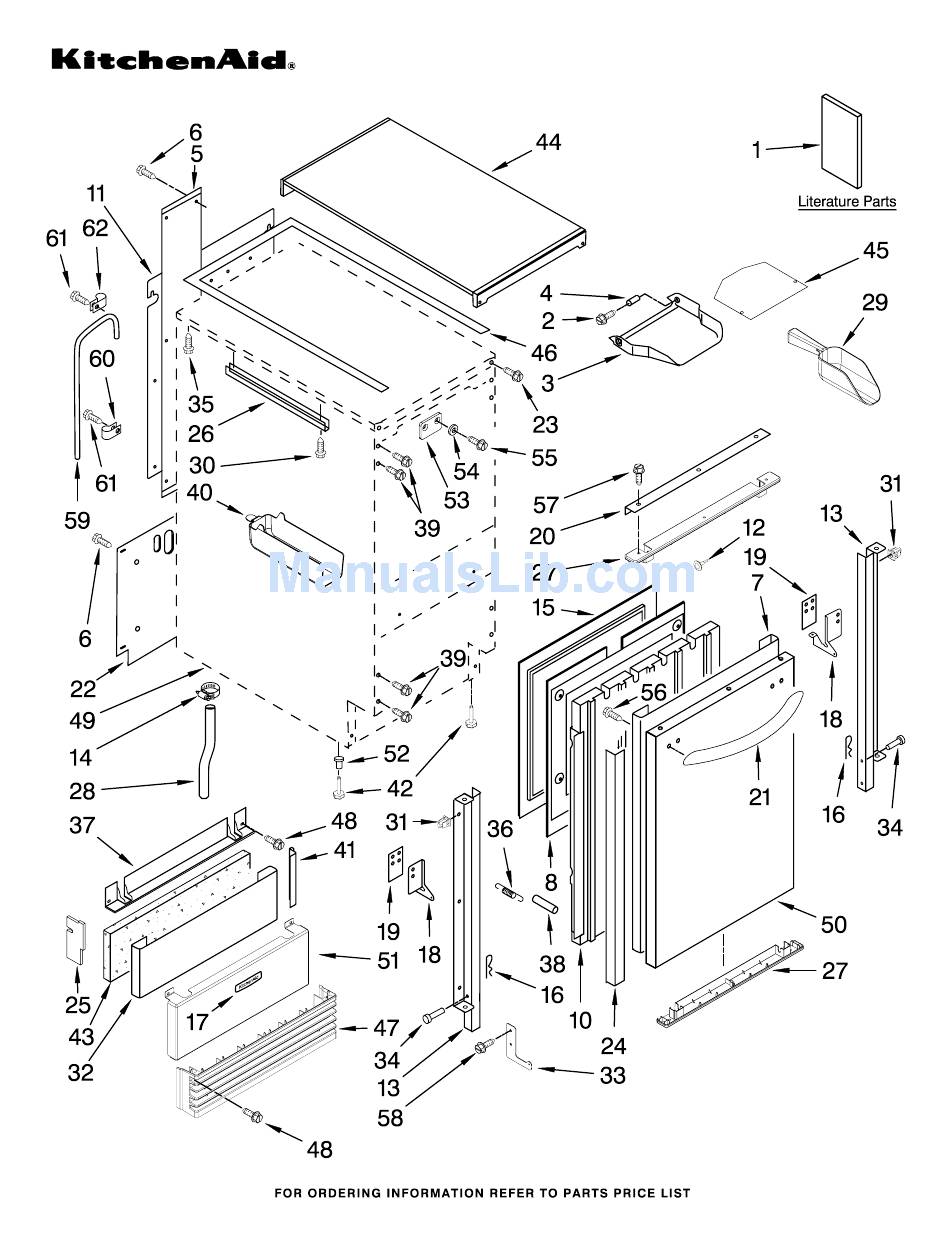

CABINET LINER AND DOOR PARTS
ICE CUBE
MAKER
For Models: KUIC18PNTS2
(Stainless Steel)
10−08 Litho In U.S.A. (rrm) (psw)
Part No. W10238958 Rev.A
1

Advertisement

loading

Related Manuals for KitchenAid KUIC18PNTS2

Summary of Contents for KitchenAid KUIC18PNTS2

  • Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIC18PNTS2 (Stainless Steel) 10−08 Litho In U.S.A. (rrm) (psw) Part No. W10238958 Rev.A...
  • Page 2 2217465 (Right Side) 489503 Clamp 2217295 Gasket, Door 2208535 Clip 17 W10046610 Nameplate Hinge 2208425 (Left Side) 2208426 (Right Side) For Models: KUIC18PNTS2 (Stainless Steel) Illus. Part DESCRIPTION 2208401 Shim, Hinge 2208452B Handle, Icemaker 9872207S Handle, Bar 22 W10136200 Assembly,...
  • Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIC18PNTS2 (Stainless Steel) W10238958...
  • Page 4 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIC18PNTS2 (Stainless Steel) Illus. Part DESCRIPTION 1 W10217917 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water 2217269 Evaporator 2313705 Pump, Drain 2313851 Tube, Reservoir Pump 2172593 Tube, Water Fill...

  • Page 5: Pump Parts

    W10238958 PUMP PARTS For Models: KUIC18PNTS2 (Stainless Steel) Illus. Part DESCRIPTION 2313628 Pump−Recirculating 3400884 Screw 8−18 x 5/8 2185677 Cover, Pump 2313844 Bracket, Connector Assembly 2313627 Bracket−Pump 2313643 Sensor−Water Level 2310092 Wiring Harness Main To Pump 2313702 Pump Assembly...

  • Page 6: Control Panel Parts

    CONTROL PANEL PARTS For Models: KUIC18PNTS2 (Stainless Steel) Illus. Part DESCRIPTION 2185738 Box, Control 2310139 Transformer 2304122 Assembly, Switch (ALSO ORDER #4) 2313693 Overlay 5 W10141364 Control Board 2149705 Switch, Plunger Grid/ Light 2187585 Wire Assy−Active Overlay Jumper 745362 Bulb...

  • Page 7: Unit Parts

    UNIT PARTS For Models: KUIC18PNTS2 (Stainless Steel) W10238958...
  • Page 8 304392 Screw 8−18 x 1/2 7 W10136195 Compressor (Includes Illus. 11 & 23) A201435 Clip, Mounting A201441 Shim (4) 2185960 Clamp (Power Cord) UNIT PARTS For Models: KUIC18PNTS2 (Stainless Steel) Illus. Part DESCRIPTION Grommet (4) 2217318 Production 4387558 Service 2208415 Tube, Process...

  • Page 9: Optional Parts

    W10238958 OPTIONAL PARTS For Models: KUIC18PNTS2 (Stainless Steel) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs. 3/16" x 7") 479976 Kit, Insulation (5 Pcs.
