FEATURES AND CONTROLS

NOTICE: Read this OPERATOR'S MANUAL and OPERATOR SAFETY before operating your snow thrower. Compare the illustrations with your
SNOW THROWER to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.
A
D
C
I
STOP

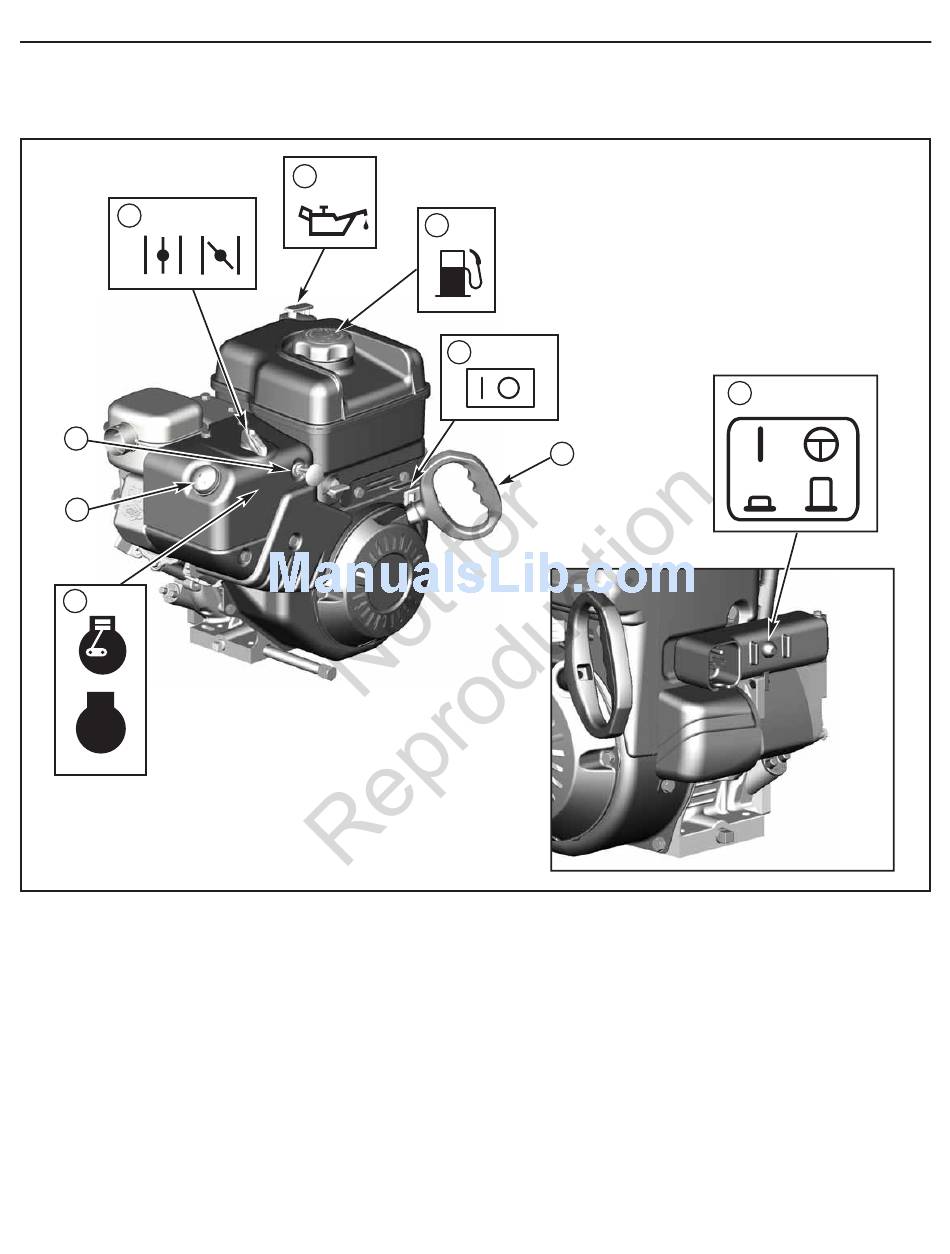

Engine Controls
ENGINE CONTROLS
A. Choke Control Knob — Used to start a cold engine (see Figure 2).
B. Electric Start Button — Used to start the engine using the electric
starter.
C. Primer Button — Used to inject fuel directly into the carburetor
manifold to ensure fast starts in cool weather.
D. Safety Key — Must be inserted to start engine. Pull out to stop. Do
not turn safety key.
E. Starter Cord Handle — Used to start the engine manually.
F. ON/OFF Switch — Used to start and stop the engine.
H
G
F
ENGINE AND SNOW THROWER CONTROLS
10
E
G. Fuel Tank and Cap — Fill the fuel tank to approximately 1-1/2 in.
(38 mm) below the top of the neck to allow for fuel expansion.
H. Oil Fill Cap (Extended Dipstick)
SNOW THROWER CONTROLS
A. Speed Select Lever — Allows the operator to use one of six (6)
forward and two (2) reverse speeds (see Figure 3). To shift, move
speed select lever to desired position.
NOTICE: Do not move speed select lever while Traction
Drive Clutch is engaged. This may result in severe damage
to drive system.
B
Figure 2
