Zte MF93D User Manual

LEGAL INFORMATION
Copyright © 2013 ZTE CORPORATION.
All rights reserved.
MF93D
No part of this publication may be excerpted, reproduced, translated or
Let's go
utilized in any form or by any means, electronic or mechanical, includ-
ing photocopying and microfilm, without the prior written permission of
Getting started with your device. ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to
make modifications on print errors or update specifications without prior
notice.
Version No. : R1.0
Edition Time : 2013.04
NOTE:
Do not use the device in an enclosed environment or where heat dis-
sipation is poor. Prolonged work in such space may cause excessive
ZTE CORPORATION
heat and raise ambient temperature, which may lead to automatic shut-
NO. 55, Hi-tech Road South, ShenZhen, P.R.China down of the device for your safety. In the case of such event, cool the
Postcode: 518057
device in a well-ventilated place before turning on for normal use.
1 2
Getting to Know Your Device
Connect to the Internet automatically.

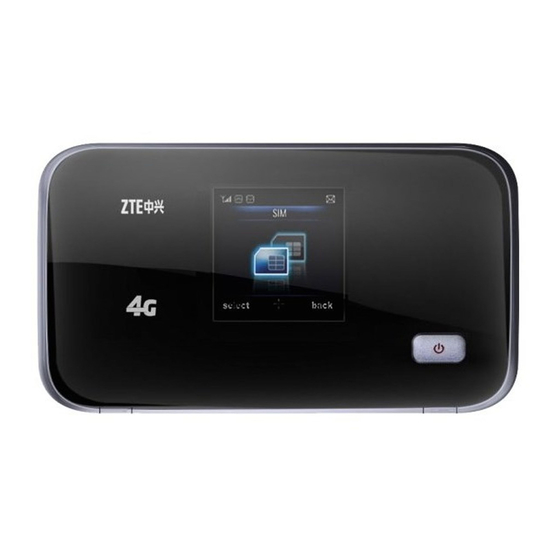

Appearance
Connect to the Internet manually.
The following figure is only for your reference. The actual product may
be different.
Roaming network indication.
 External Antenna Connector New message received.
 Micro USB Port
Wi-Fi Status and number of the connected users.
 OLED Screen
 Power Switch
Battery power indication.
 (U)SIM Card Slot
Connection Scenario
 RESET Button / microSD Card Slot
 WPS Button Your device supports two methods to go to Internet and supports multi-
NOTES:
clients for surfing on the Internet at the same time. The following figure
• microSD logo is a trademark of SD Card Association. is only for your reference.
• 4G Mode: Use your (U)SIM card to access the Internet.
• Please use the original external antenna if necessary.
Indicators
When the device is powered on, the following icons will appear on the
OLED screen, with the corresponding indicates listed in the table be-
low:
Icon Indication
Network signal strength.
Network type. 2G, 3G, 4G icon will appear on the OLED • Internet Wi-Fi Mode: Your device will connect to other WLAN de-
2G/3G/4G
screen according to the network being connected. vice (hotspot device, wireless router, etc.) via Wi-Fi to access the
3 4
Internet. The WLAN device has already connected to the Internet. NOTE:
NOTE: Do not pull the cover rudely, as it is connected with the device.
The subnet must be deferent between your device and other WLAN 2) Insert the microSD card into the microSD slot. The following picture
device. shows the correct inserting direction. You will hear a click when the
microSD card locks in place.
Installing Your Device
3) Close the microSD card cover.
1. Insert the SIM card.
Connecting to Your Device
Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initialize.
2. Use your normal Wi-Fi application on the client to search for the
available wireless networks.
IMPORTANT: Your device does not support Micro/Nano or any other
nonstandard SIM cards. To avoid device damage, please do not use
them.
2. Insert the microSD card.
1) Open the microSD card cover.
5 6
NOTE: Please set the client to obtain an IP address automatically refer-
ring to the chapter "Configuring Your PC", and then the client will get an
IP address like "192.168.0.100".
3. Select the SSID of your device, and then click Connect. The follow-
ing picture is only for your reference.
Via USB Cable
1. Connect to the device.
4. Input the password, and then click Connect.
2. Power on your device.
3. The OS detects and recognizes new hardware and finishes the in-
stallation automatically.
NOTE:
NOTE: If the Windows operating system does not launch installation
• There may require the password for Wi-Fi connection, please check
automatically, you can run the installation program in path of My Com-
the label on your device to get the default.
puter > ZTEMODEM.
• Double press the WPS button, and then the SSID and Wi-Fi key
4. Wait a moment, and then the client will connect to your device suc-
will display on the OLED screen.
cessfully.
5. Wait a moment, and then the client will connect to your device suc-
Accessing the Internet
cessfully.
7 8
4G Mode
After the client connected to your device successfully, you can access
the Internet in the Automatic or Manual mode. The default mode is
Automatic.
Mode Operations
Your device will connect to the Internet automatically,
Automatic
and your clients can surf on the Internet directly.
Login the webGUI configuration page, and select Set-
Manual tings > Network Settings > Dial-up Settings > Man-
ual, and then click Home > Connect / Disconnect.
NOTE:
If you want to modify the detailed parameters of your device, please
login the webGUI configuration page by visiting http://192.168.0.1 or
http://m.home. The default password is admin.
Internet Wi-Fi Mode
1. Login the webGUI configuration page.
2. Select Settings > Internet Wi-Fi.
3. Set the Internet Wi-Fi Switch and Preferred Network, and then
click Apply.
NOTE:
You need to Enable the Internet Wi-Fi Switch and select Wi-Fi.
9
