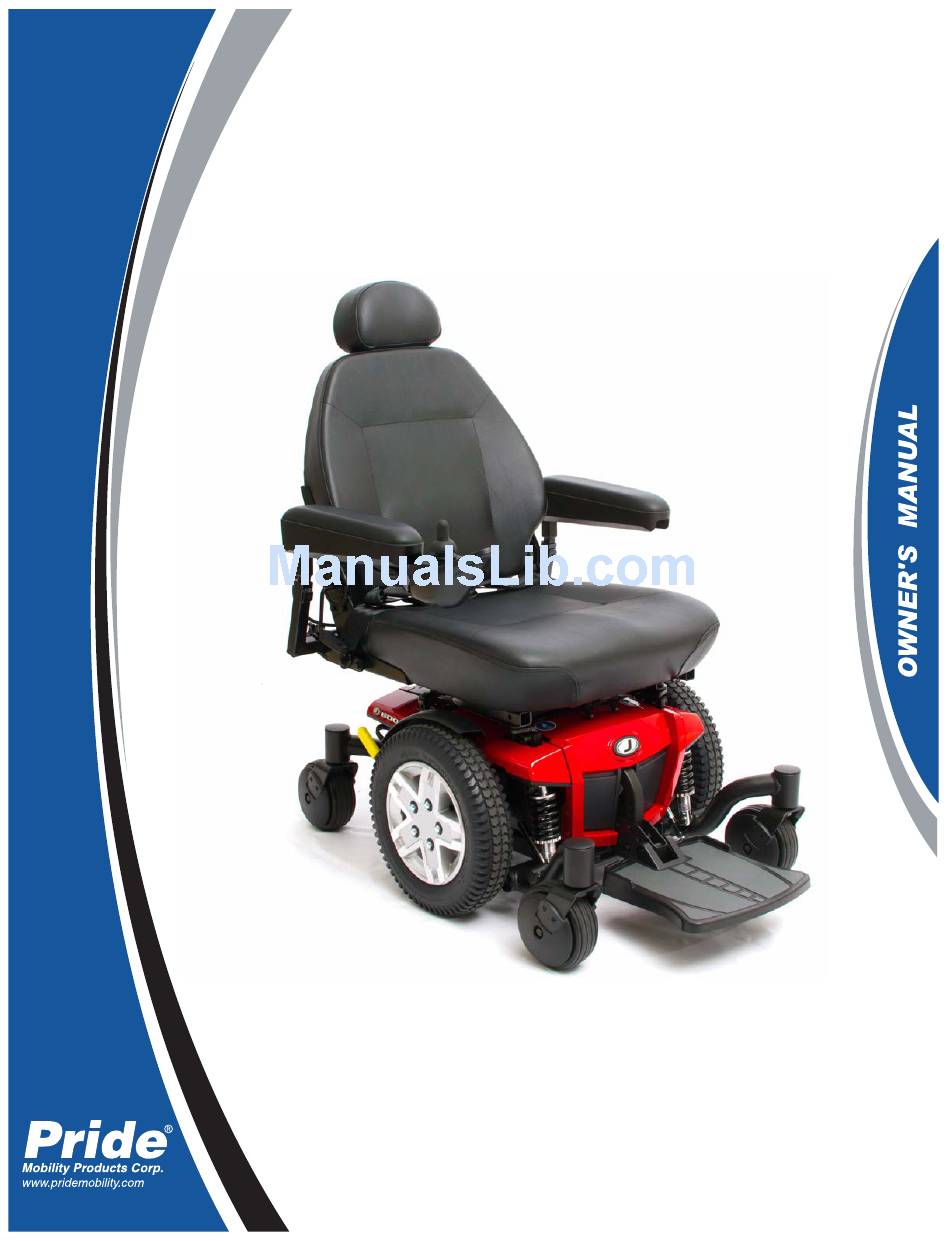

- Page 1 JAZZY 600 ES...
- Page 2 NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements. NOTE: This product meets IPX4 classification (IEC 60529). NOTE: The Jazzy 600 ES and its components are not made with natural rubber latex. Consult with the man- ufacturer regarding any after-market accessories.
-
Page 3: Table Of Contents
VII. CARE AND MAINTENANCE ......................27 LANGUAGE USAGE This owner’s manual is intended for distribution in all English-speaking countries where Pride Power Chairs are sold. We have chosen to compose this manual using language and spelling common to the USA. Since we recog- nize that not all English-speaking countries use the same words or spellings, please refer to the following chart for some common word variations that may be encountered throughout this manual. -
Page 4: Introduction
Pride to enhance or preserve the safe use of this product. - Page 5 RESNA WC/Vol. 4, Section 19 for transport of an occupied power chair in a motor vehicle. Indicates that power chair with a similar label is not rated for occupied transit. Class II Equipment Manufactured in MAIN FRAME Power chair information label Jazzy 600 ES www.pridemobility.com...
-
Page 6: General Guidelines
Pre-Ride Safety Check Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before each use to make sure your power chair operates smoothly and safely. - Page 7 ARMREST ARMREST JOYSTICK CONTROLLER SEAT BASE POWER BASE ASSEMBLY CASTER WHEEL MANUAL FREEWHEEL LEVER DRIVE WHEEL SPRING SHOCK/ GAS DAMPER FRONT RIGGING LOCATION (FOOT PLATFORM SHOWN) CASTER WHEEL Figure 1. The Jazzy 600 ES Power Chair Jazzy 600 ES www.pridemobility.com...
- Page 8 LEVER SUSPENSION SPRING Figure 2. The Jazzy 600 ES Power Base PROHIBITED! The spring tension on your power chair was factory set to meet the needs of the demographic majority of users. Do not adjust the tension of any spring on your power chair.
- Page 9 If the circuit trips, allow your power chair to “rest” for approximately one minute. Next, push in the circuit breaker button, turn on the controller, and con- tinue normal operation. If the main circuit breaker continues to trip repeatedly, contact your authorized Pride Provider.
- Page 10 WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. MANUAL FREEWHEEL LEVER MANUAL FREEWHEEL LEVER Figure 4. Freewheel Mode (Drive Disengaged) Figure 5. Drive Mode (Drive Engaged) www.pridemobility.com Jazzy 600 ES...
-
Page 11: Initial Assembly
Replacement nylon insert lock nuts are available at local hardware stores or through your authorized Pride Provider. ARMREST ANGLE ADJUSTMENT CONTROLLER POSITION SEAT HEIGHT/ANGLE ADJUSTMENT FOOT PLATFORM ANGLE ADJUSTMENT FOOT PLATFORM HEIGHT/DEPTH ADJUSTMENT Figure 6. Jazzy 600 ES Assembly View Jazzy 600 ES www.pridemobility.com... - Page 12 I V . A S S E M B L Y ARMREST ANGLE ADJUSTMENT SEAT INSTALLATION CONTROLLER POSITION SEAT HEIGHT ADJUSTMENT FOOT PLATFORM ADJUSTMENT Figure 7. Jazzy 600 ES Assembly View (United Kingdom Occupied Transit Securement System Shown) www.pridemobility.com Jazzy 600 ES...
-
Page 13: Your Power Chair
Use correct tie- down points for controller harness to prevent harness from getting caught in the drive tires, pinched in the seat frame, or damaged when passing through doorways. Figure 9. Controller Harness Routing on a Synergy Seat Jazzy 600 ES www.pridemobility.com... - Page 14 7. Secure the controller harness to the armrest Figure 10. Seat Installation–UK Occupied Transit receiver with wire ties. See figure 11. Securement System WIRE TIES TO POWER BASE Figure 11. Controller Harness Routing on a Contour Seat www.pridemobility.com Jazzy 600 ES...
- Page 15 14. MANDATORY! The power chair should used indicated manufacturer’s instructions. have any questions about the proper use of your power chair, contact your Quantum Rehab Provider. SECUREMENT BRACKETS Figure 13. Transit System Securement Brackets–UK Occupied Transit Jazzy 600 ES www.pridemobility.com...
- Page 16 I V . A S S E M B L Y FRONT OF VEHICLE Figure 14. Unoccupied Transit System Securement Points www.pridemobility.com Jazzy 600 ES...
-
Page 17: Comfort Adjustments
WARNING! The center of gravity of your power chair was factory set to a position that meets the needs of the demographic majority of users. Your authorized Pride Provider has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products or your authorized Pride Provider. - Page 18 9. Reinstall the seat. 10. Reconnect the controller connector(s) to the power base. 11. Reinstall the rear shroud. SEAT PLATE SEAT INTERFACE MOUNTING BRACKET HARDWARE Figure 16. Seat Height Adjustment–UK Occupied Transit www.pridemobility.com Jazzy 600 ES...
-
Page 19: Seat Position
3. Reinstall the adjusting screws to each seat hinge and tighten. ARMREST KNOB Armrest Width Adjustment You can change each armrest’s width independently of the other. Figure 18. Seatback/Armrest Adjustment NOTE: Changing the armrest width may increase the overall width of your power chair. Jazzy 600 ES www.pridemobility.com... -
Page 20: Armrest Height Adjustment
11. Secure the controller harness to the armrest with wire ties. See figure 11. NOTE: If your power chair is equipped with a Specialty Seat, Synergy Seat, or TRU-Balance Power Position- ing System, refer to the information provided in supplemental manuals provided with your seating system. www.pridemobility.com Jazzy 600 ES... - Page 21 Figure 21. Positioning Belt Adjustment approved by the vehicle manufacturer. WARNING! The positioning belt should be secured at all times. Never allow the positioning belt to hang or drag on the floor as it may become entangled. Jazzy 600 ES www.pridemobility.com...
- Page 22 MANDATORY! Inspect the positioning belt for loose parts or damage, including tears, worn spots, bent hardware, damaged latch mechanisms, dirt or debris, before each use of the power chair. If you discover a problem, contact your authorized Pride Provider for maintenance and repair.
-
Page 23: Batteries And Charging
V I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING The Jazzy 600 ES uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level. Deep-cycle batteries are designed to handle a longer and deeper discharge. - Page 24 We do not recommend using other types of chargers (e.g., an automotive battery charger). NOTE: Your power chair’s charger will not operate after the batteries have been discharged to nearly zero voltage. If this happens, call your authorized Pride Provider for assistance. How often must I charge the batteries? Many factors come into play when deciding how often to charge the batteries.
- Page 25 Your power chair will be ready each morning to give you a full day’s service. It is recommended that you charge the batteries at least 8 to 14 hours after daily use. Pride recommends that you charge the batteries for an additional 4 hours after the battery charger indicates that charging is complete.
- Page 26 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.pridemobility.com Jazzy 600 ES...
-
Page 27: Care And Maintenance
3. Check the joystick operation and the brakes before using your power chair again. 4. If any inconsistencies are found, take your power chair to an authorized Pride Provider. Power chairs that are frequently exposed to sources of water, such as incontinence, should be inspected often for corrosion and electronic components may need to be replaced frequently. -
Page 28: Daily Checks
Check the rubber boot around the base of the joystick for damage. Visu- ally inspect the boot. Do not handle or try to repair it. See your authorized Pride Provider if there is a problem. -
Page 29: Cleaning And Disinfection
Your power chair must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorized Pride Provider for information on proper disposal of power chair packaging, metal frame components, plastic components, electronics, batteries, neoprene, silicone, and polyurethane materials. -
Page 30: Battery Replacement
Nylon insert lock nuts should not be reused as it may cause damage to the nylon insert, resulting in a less secure fit. Replacement nylon insert lock nuts are available at local hardware stores or by contacting your authorized Pride Provider. Battery Replacement A battery wiring diagram is printed on a decal located on the front cover. - Page 31 CONNECT RED WIRES TO RED POSITIVE (+) TERMINAL POSTS. CONNECT BLACK WIRES TO BLACK NEGATIVE (-) TERMINAL POSTS. QUICK RELEASE BATTERY CONNECTORS FRONT COVER BATTERY WIRING DIAGRAM LABEL RELEASE HANDLES FRONT BATTERY REAR BATTERY Figure 24. Battery Installation Jazzy 600 ES www.pridemobility.com...
-
Page 32: Corrective Maintenance
When to See Your Authorized Pride Provider for Service The following symptoms could indicate a serious problem with your power chair. If necessary, contact your authorized Pride Provider. When calling, have the model number, serial number, nature of the problem, and the error code if available. - Page 33 N O T E S Jazzy 600 ES www.pridemobility.com...
- Page 34 N O T E S www.pridemobility.com Jazzy 600 ES...
- Page 36 Jazzy 600 ES Product Serial #...
