Summary of Contents for Pride Jazzy Select

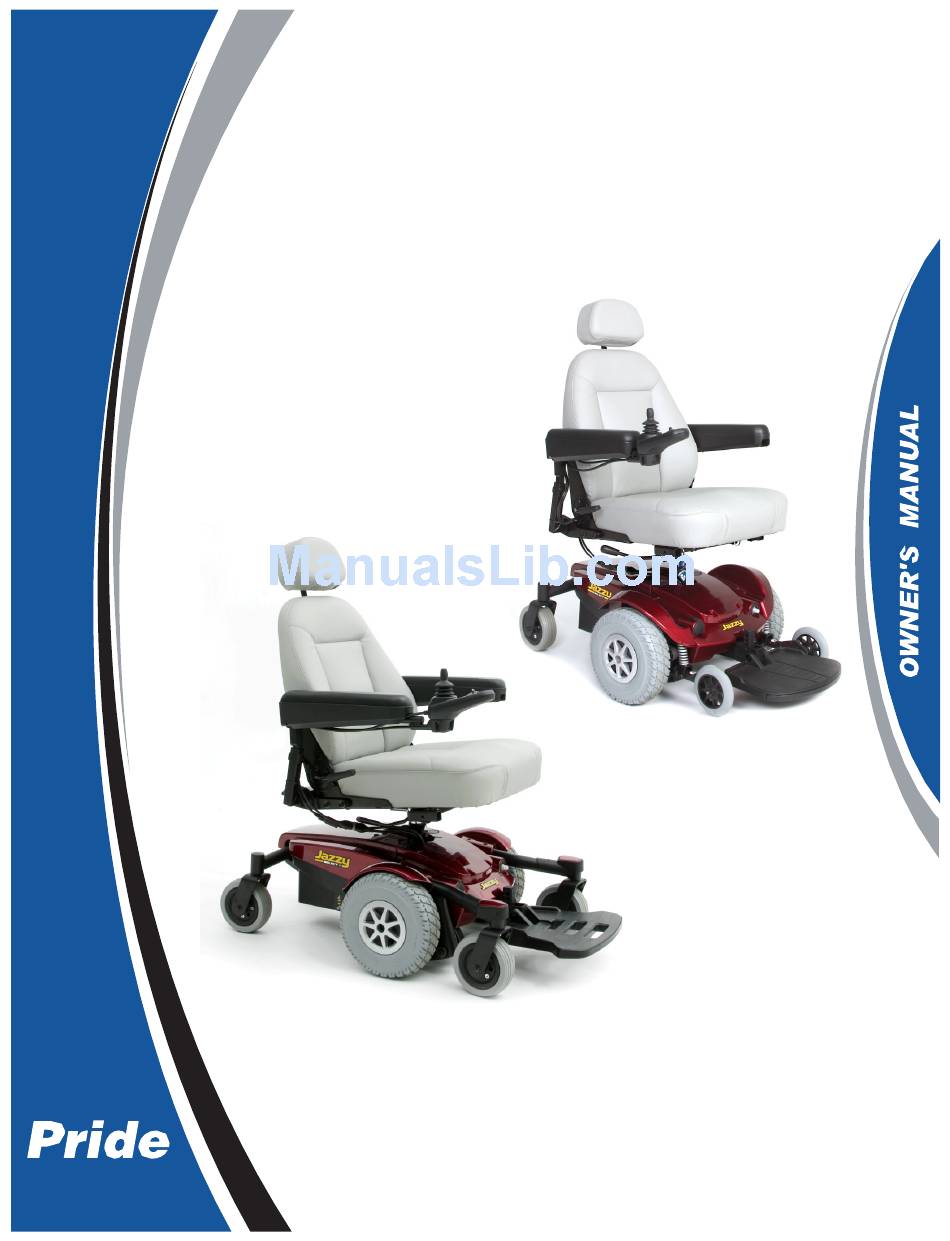

- Page 1 S E R I E S How a Power Chair should FEEL! ™ Jazzy Select Jazzy Select 6 Including Models: Jazzy Select and Jazzy Select 6 21 Healey Road • Dandenong, 3175 • Victoria, Australia Mobility Products Australia Pty. Ltd. www.pridemobility.com ACN# 088 609 661...
- Page 2 S A F E T Y G U I D E L I N E S WARNING! An authorised Pride Provider or a qualified technician must perform the initial setup of this power chair and must perform all of the procedures in this manual.
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION ........................... 4 SAFETY ..............................5 III. YOUR POWER CHAIR ......................17 ASSEMBLY ..........................22 COMFORT ADJUSTMENTS ....................24 VI. BATTERIES AND CHARGING ................... 31 VII. CARE AND MAINTENANCE ....................35 VIII. WARRANTY ........................... 42 Jazzy Select Series www.pridemobility.com... -
Page 4: Introduction
Pride to enhance or preserve the safe use of this product. -
Page 5: Safety
Use correct tie-down points for controller harness to prevent the harness from getting caught in the drive tyres or pinched in the seat frame. Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and store in a clean and dry condition. Jazzy Select Series www.pridemobility.com... - Page 6 Removal of grounding prong can create an electrical hazard. If necessary, properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access. Wear safety goggles. Corrosive chemicals contained in battery. Do not remove the anti-tip wheels. www.pridemobility.com Jazzy Select Series...
- Page 7 Connect Red wire to Red Positive (+) Terminal Post Connect Black wire to Black Negative (–) Terminal Post Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Jazzy Select Series www.pridemobility.com...
- Page 8 S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your authorised Pride Provider for information on proper disposal and recycling of your Pride product and its packaging. Disposal and recycling - Contact your authorised Pride Provider for information on proper disposal and recycling of your Pride product and its packaging.
-
Page 9: General Guidelines
Pride products. Pre-Ride Safety Check Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before each use to make sure your power chair operates smoothly and safely. - Page 10 Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations.
- Page 11 Doing so could cause instability in your power chair. Most handicap public access ramps are required to have a maximum slope of 10.5% (6°). Therefore, Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed 10.5% (6°).
- Page 12 Your power chair is designed to provide optimum stability under normal driving conditions—dry, level surfaces composed of concrete, blacktop, or tarmac. However, Pride recognises that there will be times when you will encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil, grass, and gravel. Feel free to use your power chair safely on lawns and in park areas.
- Page 13 Motor Vehicle Transport Pride recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The power chair should be stowed in the boot of a car or in the back of a truck or van with batteries removed and properly secured.
- Page 14 Never reach, lean, or bend while driving your power chair. If it is absolutely necessary to reach, lean, or bend while seated on your power chair, it is important to maintain a stable centre of gravity and keep the power chair from tipping. Pride recommends that the power chair user determine his/her personal limitations and practice bending and reaching in the presence of a qualified healthcare professional.
- Page 15 Always have an attendant or health- care professional present while learning to properly transfer yourself. To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following tasks be- fore attempting a transfer: Turn off the power to the controller.
- Page 16 I I . S A F E T Y WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your power chair, although the power chair has passed the necessary testing requirements for cigarette smoking. You must adhere to the following safety guidelines if you decide to smoke cigarettes while seated in your power chair.
-
Page 17: Your Power Chair
THE JAZZY SELECT SERIES POWER CHAIR The Jazzy Select Series Power Chair has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/ brake assemblies, two drive wheels, two batteries, and wiring harnesses. - Page 18 Jazzy Select 6: Active-Trac with Mid-Wheel 6 Technology Drive Wheels: 25.4 cm, solid Caster Wheels: Jazzy Select: 15.24 cm, solid, rear-mounted Jazzy Select 6: 15.24 cm, solid, front- and rear-mounted Anti-tip Wheels Jazzy Select only: 12.7 cm, solid, front-mounted Maximum Speed: Up to 6.44 km/h Range: Up to 24.14 km...
- Page 19 REAR SHROUD SEAT POST FRONT COVER MAIN CIRCUIT BREAKER CONTROLLER HARNESS Figure 6. The Jazzy Select Power Base XLR OFF-BOARD CHARGING HARNESS MAIN CIRCUIT BREAKER REAR SHROUD CONTROLLER HARNESS Figure 7. The Jazzy Select 6 Power Base Jazzy Select Series www.pridemobility.com...
- Page 20 Power Module: Provides connection between the controller and the motors, batteries, and off-board charger port. XLR OFF-BOARD CHARGER CONTROLLER CONNECTOR HARNESS CONNECTOR BATTERY CONNECTORS MOTOR CONNECTORS MAIN CIRCUIT BREAKER BATTERY CONNECTORS Figure 8. Jazzy Select Series Electrical Components (Jazzy Select 6 Shown) www.pridemobility.com Jazzy Select Series...
- Page 21 If a lever is difficult to move in either direction, slightly rock the power chair back and forth. The lever should then move to the desired position. WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. FREEWHEEL LEVER FREEWHEEL LEVER Figure 9. Drive Mode (Drive Engaged) Figure 10. Freewheel Mode (Drive Disengaged) Jazzy Select Series www.pridemobility.com...
-
Page 22: Assembly
Nylon insert lock nuts should not be reused as it may cause damage to the nylon insert, resulting in a less secure fit. Replacement nylon insert lock nuts are available at local hardware stores or through your authorised Pride Provider. Seat Installation It may be necessary to install the seat either prior to initial operation or after transporting your power chair. - Page 23 Figure 12. Quick Release Fastener Operation 3. Rotate the lever until it is in the fully closed position. NOTE: If the lever will not rotate to the fully closed position, then turn the nut anticlockwise one-quarter or one-half turn. Jazzy Select Series www.pridemobility.com...
-
Page 24: Comfort Adjustments
NOTE: If your power chair is equipped with an optional seating system, please refer to the information pro- vided in separate manuals. WARNING! If your power chair was configured by your authorised Pride Provider, please consult your healthcare professional before changing the seat position or making any other adjustment. - Page 25 2. Loosen the locking nut. 3. Turn the adjusting screw to raise the front of the armrest or to lower the front of the armrest. 4. Tighten the locking nut to lock the adjusting screw into place. Jazzy Select Series www.pridemobility.com...
- Page 26 10. Route the controller and XLR off-board charger harness along the seat frame and secure with wire ties. See figure 11. 11. Plug the controller and XLR off-board charger connectors into the power base. See figure 6 or 7. www.pridemobility.com Jazzy Select Series...
- Page 27 1. Flip up the foot platform and locate the adjustment screw. 2. Turn the adjustment screw to raise or lower the front of FOOT the foot platform. PLATFORM BRACKET ADJUSTMENT SCREW Figure 17. Jazzy Select 6 Foot Platform Adjustment Jazzy Select Series www.pridemobility.com...
- Page 28 1. Remove the two adjustment screws from the side of Figure 19. Elevating Leg Rests each leg rest extension. 2. Slide the leg rest up or down to the desired length. 3. Reinstall the two adjustment screws. www.pridemobility.com Jazzy Select Series...
- Page 29 You can compensate for this by having your authorised Pride Provider make a small adjustment to the pre-programmed deceleration setting in the controller or by moving the seat assembly farther to the back of your power chair.
- Page 30 MANDATORY! Inspect the positioning belt for loose or damaged parts before each use of the power chair. If you discover a problem, contact your authorised Pride Dealer for maintenance and repair. www.pridemobility.com Jazzy Select Series...
-
Page 31: Batteries And Charging
PROHIBITED! Do not allow unsupervised children to play near the power chair while the batteries are charging. Pride recommends that you do not charge the batteries while the power chair is occupied. - Page 32 4. Plug the off-board charger into the electrical outlet. NOTE: If it is a Pride off-board charger, then there are two lights in it. The red light indicates that power to the off-board charger is on. The green light indicates that the batteries are fully charged. If it is not a Pride off- board charger, then follow the instructions supplied by the manufacturer.
- Page 33 We work closely with our battery manufacturer to provide a battery that best suits your power chair’s specific demands. Fresh batteries arrive regularly at Pride and are promptly shipped with a full charge. During shipping, the batteries encoun- ter temperature extremes that may influence initial performance. Heat robs the charge from the battery, and cold slows the power available and extends the time needed to recharge the battery (just as with a car battery).
- Page 34 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.pridemobility.com Jazzy Select Series...
-
Page 35: Care And Maintenance
M A I N T E N A N C E CARE AND MAINTENANCE Your Jazzy Select is a sophisticated power chair. Like any motorised vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your authorised Pride Provider. Preventive mainte- nance is very important. - Page 36 Yearly Checks Take your power chair to your authorised Pride Provider for yearly maintenance, especially if you use your power chair on a daily basis. This helps ensure that your power chair is functioning properly and helps prevent future complications.
- Page 37 Your power chair must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorised Pride Provider for information on proper disposal of power chair packaging, metal frame components, plastic components, electronics, and batteries.
- Page 38 WARNING! The batteries in your power chair should only be serviced or replaced by an authorised Pride Provider or a qualified technician. WARNING! Do not replace batteries when seat is occupied. WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that much weight, be sure to get help.
- Page 39 M A I N T E N A N C E CORRECT CONNECTION INCORRECT REAR CONNECTION SHROUD CONTROLLER COVER SHROUD YELLOW THUMBSCREWS REAR BATTERY FRONT BATTERY SIDE COVER Figure 24. Battery Installation (Seat Removed for Clarity) Jazzy Select Series www.pridemobility.com...
- Page 40 When to See Your Authorised Pride Provider for Service The following symptoms could indicate a serious problem with your power chair. If necessary, contact your authorised Pride Provider. When calling, have the model number, serial number, nature of the problem, and the error code if available. Motor noise...
- Page 41 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your authorised Pride Provider. Jazzy Select Series...
-
Page 42: Warranty
ONE-YEAR LIMITED WARRANTY Your Pride Power Chair is fully guaranteed for twelve (12) months from the date of purchase against faults arising due to defects in manufacture or materials. This warranty does not detract from, but is in addition to your legal rights. - Page 44 Quality Control - Jazzy Select Series Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Jazzy Select Jazzy Select 6 Date Inspected Inspector *INFMANU3522* Product Serial #...
