Summary of Contents for Universal Remote Complete control
-
Page 1: Operating Your System
Operating Your System With The KP-900 Wireless Keypad/Remote... - Page 2 It involves an intimate knowledge of how the components interact and exact details on the proper sequences of control. Only a Complete Control dealer has the requisite experience and training to quickly and effectively customize a remote control for true automated operation.
-
Page 3: Table Of Contents
Displaying the Setup Screen Selecting from the Setup Screen Setting the LCD Light Settings Sound Volume System Settings Version Information Displays Factory Default Specifications Contact Universal Remote Control Limited Warranty Statement End User Agreement Information to the User Warning Notes: Your Activities... -
Page 4: Congratulations

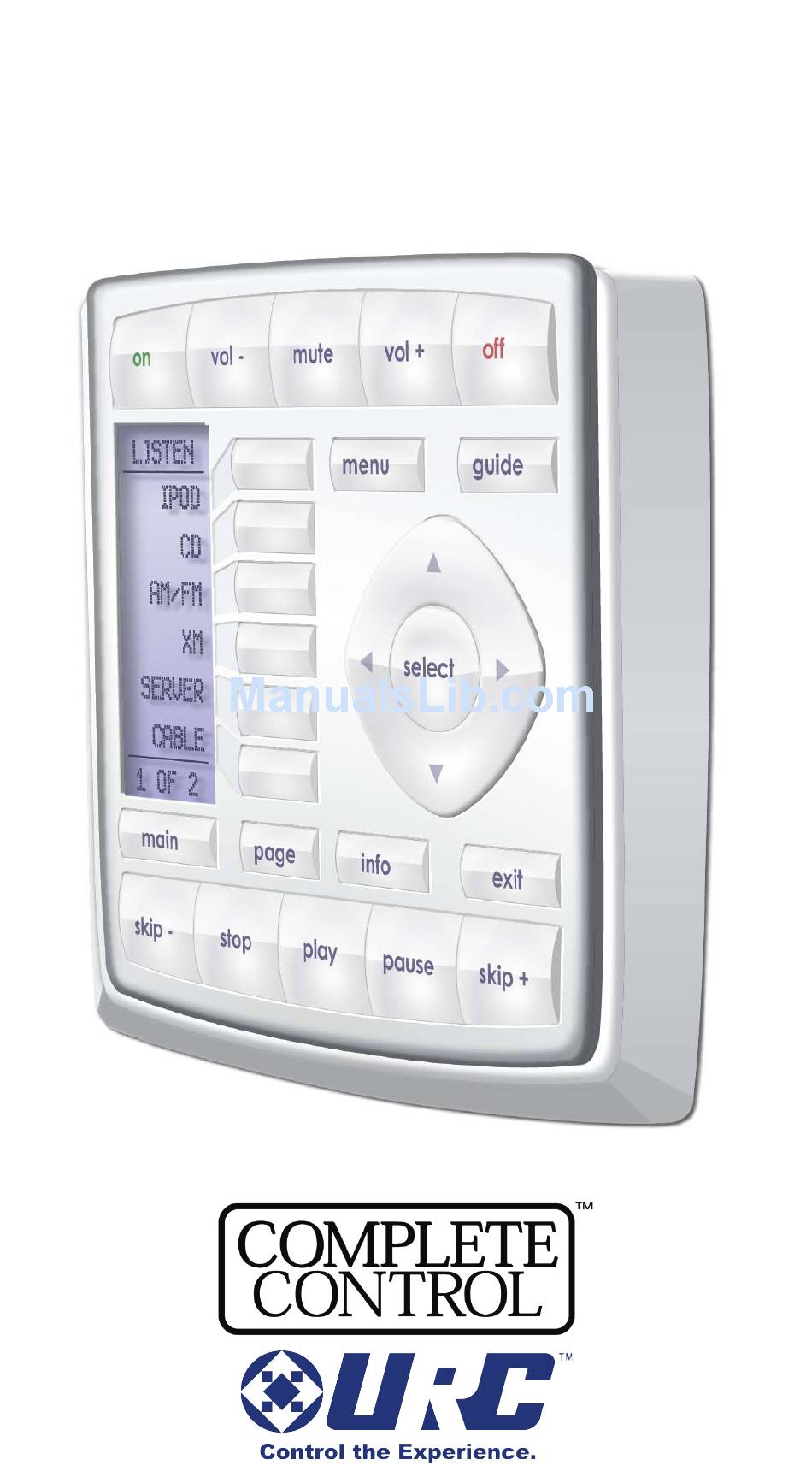

KP-900 O WNERS ANUAL Congratulations! You’ve purchased a unique wireless control. The KP-900 can be used as both a wall mounted keypad and as a hand-held remote control. The KP-900 achieves a magnificent combination of power and flexibility, simplifying and automating operation of even the most complex home theater system. -
Page 5: Optional Rf "No Rules" Operation
ANUAL Optional RF “No Rules” Operation In combination with a Complete Control RF Base Station, the KP-900 can control your system without being in line-of-sight of the equipment. On the wall or off, that means that you never need to point the KP-900. -
Page 6: Relocating The Wall Bracket
KP-900 O WNERS ANUAL Relocating the Wall Bracket A professional installer has the expertise and materials to mount the KP- 900 to any kind of wall material. The KP-900 includes a wall bracket, four screws and four plastic caps to conceal the screwheads. The included screws may not be appropriate for your walls. -
Page 7: Programmable Only By A Urc Certified Professional Installer
KP-900 O WNERS ANUAL Programmable only by a URC Certified Professional To fully automate your audio/video system, the programmer must have detailed knowledge of each component as well as how the system is connected and operated. Only a trained and certified professional audio/video installer can install a KP-900 remote control in a timely and efficient manner. -
Page 8: Selecting A New "Activity
KP-900 O WNERS ANUAL Selecting a New “Activity” The KP-900’s MAIN button displays the activities you can control with your KP-900. When you want to listen to the radio or to a CD, touch the MAIN button and select what you would like to listen to. Your installer will have programmed the button you pressed to totally con- figure your system to watch or listen to whatever you selected. -
Page 9: Using The Kp-900 To Control An "Activity
KP-900 O WNERS ANUAL Using the KP-900 to Control an “Activity” Once you’ve selected a new activity, the KP-900 displays the title of the activity at the top of the screen. Below the title, the LCD displays the cus- tomized names of any special features you need for the activity. All the hard buttons of the KP-900 have now changed to functions optimized for this activity. -
Page 10: Displaying The Setup Screen
KP-900 O WNERS ANUAL Displaying the Setup Screen You can adjust the settings of the KP-900 whenever you like by pressing and holding both the MAIN and the SELECT buttons at the same time for three seconds. When you do, the screen will change to the SETUP screen. If you do not press any button on the SETUP screen within 30 seconds, the KP-900 will time out and automatically return to normal operation. -
Page 11: Setting The Lcd
KP-900 O WNERS ANUAL Setting the LCD With these settings, you can set the KP-900 to constantly display the LCD when not in use, or show a blank screen when not in use. Additionally, you can control the contrast of the screen and the color of the backlighting. To activate the LCD On/Off setting, press this button. - Page 12 KP-900 O WNERS ANUAL Setting LCD Contrast You can adjust the contrast of the LCD screen using the LEFT and RIGHT arrow keys once the LCD contrast screen has been selected (shown on the previous page). The current CONTRAST is displayed here via a bar graph.
-
Page 13: Light Settings
KP-900 O WNERS ANUAL Light Settings You can adjust the backlighting of the remote in two additional ways: 1. You can turn on/off the LCD and the hard button backlighting. 2. You can select the amount of time the lighting stays on after the last button press from a range of values between 10 seconds and 90 seconds. -
Page 14: System Settings
KP-900 O WNERS ANUAL System Settings You can set your KP-900 to display the Low Battery warning at a power level between 0% and 20% (in 5% increments). The Power bar indicates avail- able power with Black. Press here to adjust the battery warning level. -
Page 15: Factory Default
KP-900 O WNERS ANUAL Factory Default Warning! This should only be done in preparation for a new PC Editor ses- sion, your configuration will be completely erased. It will be neccessary to reinstall the original configuration file using a windows PC equipped with KP-900 Editor and a copy of the original file. -
Page 16: Specifications
KP-900 O WNERS ANUAL Specifications Memory - 4 Megabits of Flash Memory (for User Configuration) Devices and Pages: Flexible, typically supports up to 400 completely filled pages (standard IR commands). Pages can be distributed into up to 255 devices. Learning Capability - Standard frequencies (15kHz to 460kHz) Macro Capability - Up to 255 steps each, however nesting is allowed, thus real macro length is unlimited. -
Page 17: Limited Warranty Statement
Limited Warranty Statement 1. Limited Warranty and Disclaimers Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects in material and workmanship under normal usage for one (1) year from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America. - Page 18 KP-900 O WNERS ANUAL WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER PROVISIONS HEREIN, WARRANTY DOES NOT COVER: (I) DAMAGE FROM MISUSE, NEGLECT OR ACTS OR NATURE, (II) MODIFICATIONS, (III) INTEGRATION WITH THIRD PARTY CONTENT (IV) BEYOND THE WARRANTY PERIOD AND/ OR FAILURE TO FOLLOW URC WARRANTY CLAIM PROCEDURE.
-
Page 19: End User Agreement
KP-900 O WNERS ANUAL programmable remotes or any of our Total Control® whole-house equipment online means buying equipment that does not have a URC’s limited warranty. Such equipment is not eligible for URC tech support or software support, either. 2. URC’S Limitations of Liability IN NO EVENT SHALL URC BE LIABLE FOR INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY KIND OR LOSS OF PROFITS OR BUSINESS OPPORTUNITY, EVEN IF URC IS ADVISED... -
Page 20: Information To The User
KP-900 O WNERS ANUAL Information To The User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter- ference in a residential installation. -
Page 21: Warning
KP-900 O WNERS ANUAL Warning The keypad portion of this product contains magnets. Magnets may interfere with the operation of certain devices including but not limited to the following: (a) Medical devices such as pacemakers. Do not place this device on or near your body if you have such a device implanted in you. -
Page 22: Notes: Your Activities
KP-900 O WNERS ANUAL Your Activities Describe the inputs you must set to watch or listen to TV, DVD etc. in your home entertainment system. Activity (Watch TV, Watch DVD etc.) TV Input Audio Input Page 19... - Page 23 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0063A Rev02...
