Flymo Micro Lite User Instructions page 6

Adjusting the Cutting Height & Cutting System Maintenance
• THERE ARE 2 CUTTING HEIGHTS
• Height of cut is adjusted by turning over the cut-
ting head.
• Disconnect from the mains electricity supply and
wait until the cutting head has stopped rotating.
Turn your product upside down.
To Remove the Cutting Head and Fan (K)
1. Hold the fan firmly and twist the cutting head anti-
clockwise as illustrated.
2. Hold the cutting head in the centre and remove as
illustrated.
3. Hold fan in the centre and remove as illustrated.
4. Inspect for damage and clean as necessary.
To Refit the Fan and the Cutting Head (L)
1. Replace the fan as illustrated.
2. Replace the cutting head, adjusting the height of
cut as required.
3. Hold the fan firmly and twist the cutting head
clockwise, as illustrated.
IMPORTANT
ENSURE FAN AND CUTTING HEAD ARE COR-
RECTLY LOCATED
• Always handle the plastic cutters with care - sharp
edges could cause injury. USE GLOVES.
Checking your Cutting System (M)
• The cutting system must be kept in good condi-
tion and inspected before and after use.
• Disconnect from the mains electricity supply and
wait until the cutting head has stopped rotating.
Turn your product upside down.
1. Visually check cutting head for wear. Replace if
damaged.
2. Visually check plastic cutters for wear and replace
when necessary.
3. Plastic cutters should be straight. Replace if bent
or twisted.
Replacing Plastic cutters
• Use only genuine Flymo replacement plastic cut-
ters specified for this product. These are available
from all Husqvarna UK Ltd. Service Centres and
major retail outlets.
• Plastic cutters must be replaced in pairs to retain
balance.
• Two plastic cutters of the same type should be fitted.
• Never fit a steel bar blade to this product.
• To Replace Plastic Cutters
• Disconnect from the mains electricity supply and
wait until the cutting head has stopped rotating.
Turn your product upside down.
1. Push plastic cutter towards centre of cutting disc.
Lift plastic cutter away from cutting head. (N)
2. If the plastic cutter is broken during use - lever
cutter out of the slot, and dispose of carefully.
3. Fit new plastic cutters into the slots at each side
of the cutting head and pull into place. (P)
• IMPORTANT
ENSURE PLASTIC CUTTERS ARE CORRECTLY
LOCATED.

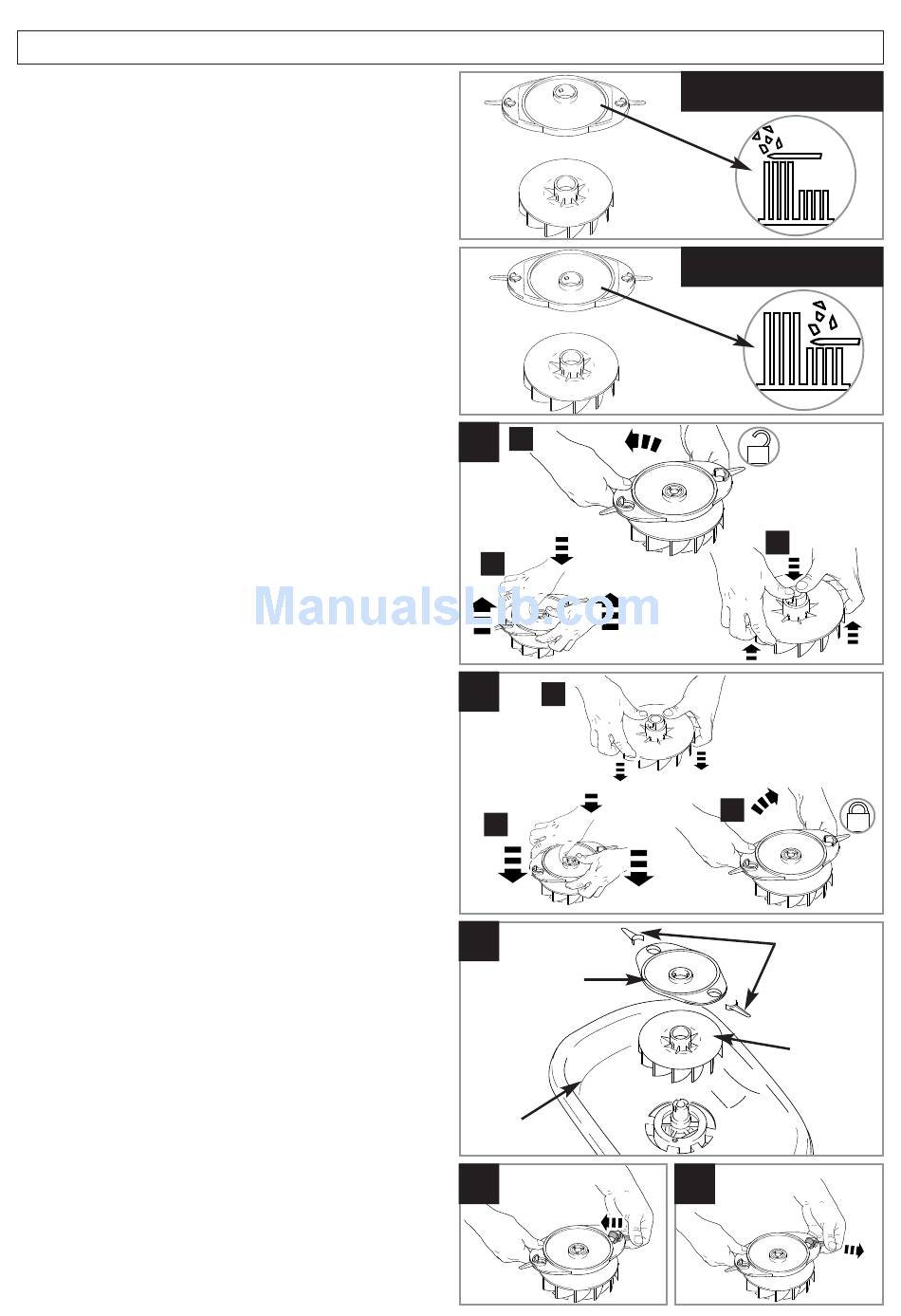

K
