Learning more about the camera (“Help Guide”) “Help Guide” is an on-line manual. Refer to it for in-depth instructions on the many functions of the camera. 1 Access the Sony support page. http://www.sony.net/SonyInfo/Support/ 2 Select your country or region. 3 Search for the model name of your camera within the support page.

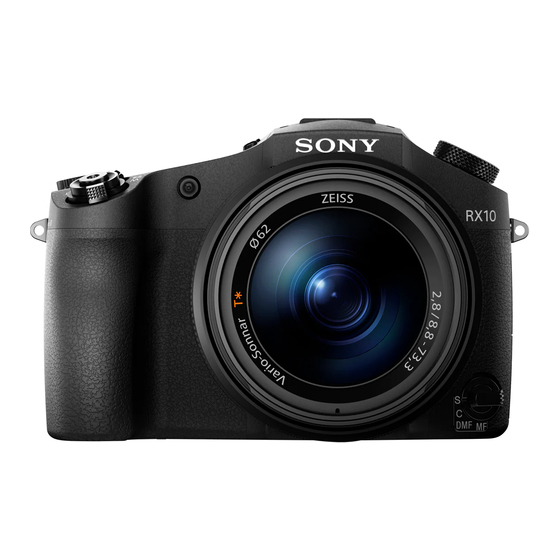

Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product. Model No. WW808143 (DSC-RX10) Serial No. _____________________________ Model No.
• Do not handle damaged or leaking lithium ion batteries. • Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack. • Keep the battery pack out of the reach of small children.
The number below is for the FCC related matters only. Regulatory Information Declaration of Conformity Trade Name: SONY Model No.: WW808143 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part15 of the FCC Rules. Operation is subject to the...
For EU product compliance: Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany Hereby, Sony Corporation, declares that this WW808143 Digital Still Camera is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/...
Page 7
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
Checking the supplied items The number in parentheses indicates the number of pieces. • Camera (1) • Rechargeable Battery Pack NP-FW50 (1) • Micro USB Cable (1) • AC Adaptor AC-UB10/UB10B/UB10C/UB10D (1) • Power Cord (mains lead) (not supplied in the USA and Canada) (1) •...
Identifying parts K Mode dial (Auto Mode)/ (Program Auto)/ (Aperture Priority)/ (Shutter Priority)/ (Manual Exposure)/ 1/2 (Memory recall)/ (Movie)/ (Sweep Panorama)/ (Scene Selection) L Hook for Shoulder Strap M Focus mode dial N Aperture ring A ON/OFF (Power) switch B Shutter button C For shooting: W/T (zoom) lever For viewing: (Index) lever/...
Page 10
J Memory card slot L For shooting: AEL (AE lock) K Memory card cover button For viewing: (Playback L Access lamp zoom) button M For shooting: Fn (Function) button For viewing: (Send to Smartphone) button (Delete/In-Camera Guide) button (Playback) button A MENU button B Speaker C m (Microphone) jack...
* For details on compatible accessories for the multi interface shoe, visit the • Touch the mark when you Sony web site, or consult your Sony connect the camera to a dealer or local authorized Sony smartphone equipped with the service facility.
Inserting the battery pack Battery eject lever Open the cover. Insert the battery pack. • While pressing the battery eject lever, insert the battery pack as illustrated. Make sure that the battery eject lever locks after insertion. • Closing the cover with the battery inserted incorrectly may damage the camera.
Charging the battery pack For customers in the USA and Canada Charge lamp Power cord Lit: Charging (Mains lead) Off: Charging finished Flashing: For customers in countries/regions Charging error or other than the USA and Canada charging paused temporarily because the camera is not within the proper temperature range Connect the camera to the AC Adaptor (supplied),...
• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket). • Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied) and AC Adaptor (supplied). • Power is not supplied during shooting/playback if the camera is connected to a wall outlet with the supplied AC adaptor.
Charging by connecting to a computer The battery pack can be charged by connecting the camera to a computer using a micro USB cable. To a USB jack Notes • Note the following points when charging via a computer: – If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases.
Page 16
• The number of images that can be recorded is for shooting under the following conditions: – Using Sony “Memory Stick PRO Duo” (Mark2) media (sold separately) – The battery pack is used at an ambient temperature of 25°C (77°F).
Inserting a memory card (sold separately) Ensure the notched corner faces correctly. Open the cover. Insert the memory card (sold separately). • With the notched corner facing as illustrated, insert the memory card until it clicks into place. Close the cover.
Memory cards that can be used Memory card For still images For movies Memory Stick XC-HG Duo Memory Stick PRO Duo (Mark2 only) Memory Stick PRO-HG Duo Memory Stick Micro (M2) (Mark2 only) SD memory card (Class 4 or faster) SDHC memory card (Class 4 or faster) SDXC memory card...
Setting the clock ON/OFF (Power) Control wheel Select items: Set: Set the ON/OFF (Power) switch to ON. Date & Time setting is displayed when you turn on the camera for the first time. • It may take time for the power to turn on and allow operation. Check that [Enter] is selected on the screen, then press z on the control wheel.
Shooting still images/movies Shutter button W/T (zoom) Mode dial lever : Auto Mode W: zoom out : Movie T: zoom in MOVIE Shooting still images Press the shutter button halfway down to focus. When the image is in focus, a beep sounds and the z or indicator lights.
Viewing images W: zoom out T: zoom in Control wheel Select images: B (next)/b (previous) (Playback) or turn the control (Delete) wheel Set: z Press the (Playback) button. Selecting next/previous image Select an image by pressing B (next)/b (previous) on the control wheel or by turning the control wheel.
Introduction of other functions Other functions can be operated using the control wheel, MENU button, etc. MENU Control dial Control wheel Fn (Function) Control wheel DISP (Display Contents): Allows you to change the screen display. z (Eye AF): Focuses on a person’s eyes when you press the button. Shoot images by pressing the shutter button while z is being pressed.
Menu Items (Camera Settings) Image Size Selects the size of still images. Aspect Ratio Selects the aspect ratio for still images. Quality Sets the image quality for still images. Panorama: Size Selects the size of panoramic images. Panorama: Direction Sets the shooting direction for panoramic images. File Format Selects the movie file format.
Page 24
Sets noise reduction processing for high-sensitivity High ISO NR shooting. Sets the function to track subject and continue Lock-on AF focusing. Selects to detect faces and adjust various settings Smile/Face Detect. automatically. Sets to automatically release the shutter when a smile is detected. Soft Skin Effect Sets the Soft Skin Effect and the effect level.
Page 25
(Custom Settings) Zebra Displays stripes to adjust brightness. MF Assist Displays an enlarged image when focusing manually. Sets the length of time the image will be shown in an Focus Magnif. Time enlarged form. Sets a grid line display to enable alignment to a Grid Line structural outline.
Page 26
Sets whether to record a shooting date on the still Write Date image. Customizes the functions displayed when the Fn Function Menu Set. (Function) button is pressed. Custom Key Settings Assigns a desired function to the button and dial. Sets the zooming function of the manual ring. When Zoom Func.
Page 27
(Playback) Delete Deletes an image. Sets the way in which images are grouped for View Mode playback. Image Index Displays multiple images at the same time. Display Rotation Sets the playback direction of the recording image. Slide Show Shows a slide show. Rotate Rotates the image.
Page 28
PAL/NTSC Selector By changing the TV format of the device, shooting in (only for 1080 50i a different movie format is possible. compatible models) Demo Mode Sets demonstration playback of a movie to on or off. Sets the resolution when the camera is connected to HDMI Resolution an HDMI TV.
Page 29
Installing “PlayMemories Home” You can install “PlayMemories Home” from the following URL: www.sony.net/pm/ Notes • An Internet connection is required to install “PlayMemories Home”. • An Internet connection is required to use “PlayMemories Online” or other network services.
Page 30
Installing “PlayMemories Home” on a computer Using the Internet browser on your computer, go to the following URL, and then click [Install] t [Run]. www.sony.net/pm/ Follow the instructions on the screen to complete the installation. • For details on “PlayMemories Home”, refer to the following PlayMemories Home support page (English only): http://www.sony.co.jp/pmh-se/...
Page 31
Installing “Image Data Converter” Download the software from the following URL and install it on your computer. Windows: http://www.sony.co.jp/imsoft/Win/ Mac: http://www.sony.co.jp/imsoft/Mac/ Viewing “Image Data Converter Guide” For details on how to use “Image Data Converter,” refer to the “Image Data Converter Guide.”...
Number of still images and recordable time of movies The number of still images and recordable time may vary depending on the shooting conditions and the memory card. Still images Image Size]: L: 20M When [ Aspect Ratio] is set to [3:2]* Capacity 2 GB Quality...
• The recordable time of movies varies because the camera is equipped with VBR (Variable Bit-Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording. The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.
Page 34
• Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images. • In sandy or dusty places Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired.
Page 35
No guarantee in the case of damaged content or recording failures Sony cannot provide a guarantee in the case of failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.
File format: [Viewfinder] Still images: JPEG (DCF, Exif, Type: Electronic viewfinder MPF Baseline) compliant, RAW Total number of dots: (Sony ARW 2.3 Format), DPOF 1 440 000 dots compatible Frame coverage: 100% Movies (AVCHD format): Magnification: 0.70 × (35 mm-format AVCHD format Ver.
Page 37
Eye point: Approx. 23 mm from the [Wireless LAN] eyepiece, 21.5 mm from the Supported standard: IEEE 802.11 b/g/n –1 eyepiece frame at –1 m (diopter) Frequency: 2.4GHz Diopter adjustment: Supported security protocols: WEP/ –1 –1 –4.0 m to +3.0 m (diopter) WPA-PSK/WPA2-PSK Configuration method: WPS (Wi-Fi...
Page 38
• Wi-Fi, the Wi-Fi logo, Wi-Fi PROTECTED SET-UP are registered • The following marks are trademarks trademarks of the Wi-Fi Alliance. of Sony Corporation. • The N Mark is a trademark or , “Cyber-shot,” registered trademark of NFC Forum, “Memory Stick XC-HG Duo,”...
Page 40
中文 (繁體字) 關於相機的詳細資訊 ( “說明指南” ) “說明指南”是線上使用說明書。關於相機各種功能的 深入使用說明,請參考此書。 1 進入 Sony 服務網頁。 http://www.sony.net/SonyInfo/Support/ 2 選擇您的國家或地區。 3 搜尋服務網頁內您相機的型號名稱。 • 查看您相機底部的型號名稱。 檢視指南 本相機配備有內建的使用指南。 MENU (刪除) 相機指南 相機會顯示 MENU 項目與設定值的解釋。 1 按一下 MENU 按鈕或 Fn (功能)按鈕。 2 選擇您要的項目,然後按 (刪除)按鈕。...
Page 44
認識各部件 K 模式轉盤 (自動模式)/ (程式自動)/ (光圈優先)/ (快門速度優先)/ (手動曝光)/ 1/2 (記憶回復)/ (動態影像)/ (全景攝影)/ (場景選擇) L 肩帶掛勾 M 對焦模式轉盤 N 光圈環 A ON/OFF (電源)開關 B 快門按鈕 C 用來拍攝:W/T (變焦)桿 用來觀看: (索引)桿 / 播放變焦桿 D 自拍定時器指示燈 /AF 照明器 E 光圈指標 F 鏡頭 G 手動對焦環 在自動對焦模式中,您可以使...
Page 45
K 記憶卡蓋 L 存取指示燈 A 光圈按鍵開關 拍攝動態影像時,將光圈按鍵 • 開關設定為 OFF。如果您在拍 A MENU 按鈕 攝動態影像時,將光圈按鍵開 B 揚聲器 關設定為 ON 變更光圈值,會 記錄光圈環的聲音。 C m (麥克風)插孔 B Wi-Fi 感應器 (內建) 連接外接麥克風時,相機會從 • 內部麥克風切換到外接麥克 (N 標記) 風。如果外接麥克風是屬於插 當您將相機與配備 NFC 功能的 • 入式電源的供電類型,麥克風 智慧型手機連接時,請按一下 的電源由相機供應。 標記。...
Page 46
G 電池蓋 H 三腳架安裝孔 請使用螺絲長度在 5.5 公釐以 • 下的三腳架。否則無法將相機 牢靠地固定住,而且可能會對 相機造成損壞。 * 如需多介面接座相容配件的詳情, 請造訪 Sony 網站,或詢問您的 Sony 經銷商或當地授權的 Sony 服 務設施。您也可以使用與配件接腳 相容的配件。不保證其他製造商配 件的操作。...
檔案格式儲存。 • 您可以顯示並比較以本相機拍攝的 RAW 影像 /JPEG 影像。 • 您可以用五種等級將影像分級。 • 您可以設定色彩標籤。 安裝 “Image Data Converter” 從下列 URL 下載軟體,並將其安裝在您的電腦上。 Windows:http://www.sony.co.jp/imsoft/Win/ Mac:http://www.sony.co.jp/imsoft/Mac/ 檢視 “Image Data Converter 指南” 若需使用 “Image Data Converter”的詳情,請參閱 “Image Data Converter 指南” 。 Windows 系統: 點選 [開始] t [所有程式] t [Image Data Converter]...
