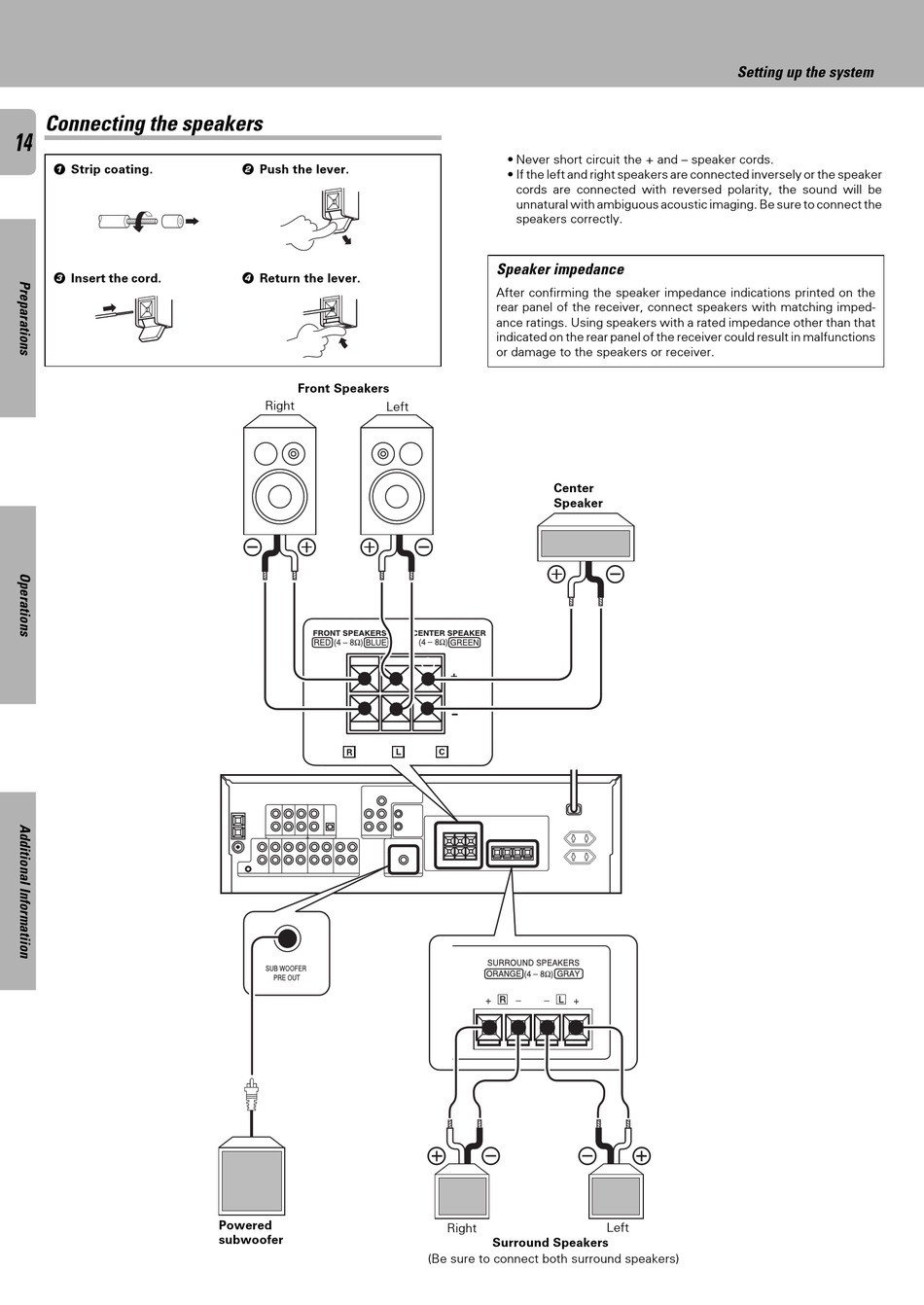

Connecting the speakers

14
1 Strip coating.
3 Insert the cord.
2 Push the lever.
4 Return the lever.
Front Speakers
Right
Left
Powered
subwoofer
• Never short circuit the + and – speaker cords.
• If the left and right speakers are connected inversely or the speaker
cords are connected with reversed polarity, the sound will be
unnatural with ambiguous acoustic imaging. Be sure to connect the
speakers correctly.
Speaker impedance
After confirming the speaker impedance indications printed on the
rear panel of the receiver, connect speakers with matching imped-
ance ratings. Using speakers with a rated impedance other than that
indicated on the rear panel of the receiver could result in malfunctions
or damage to the speakers or receiver.
Center
Speaker
Right
Surround Speakers
(Be sure to connect both surround speakers)
Setting up the system
Left
