Introducing the HP Switch 2224

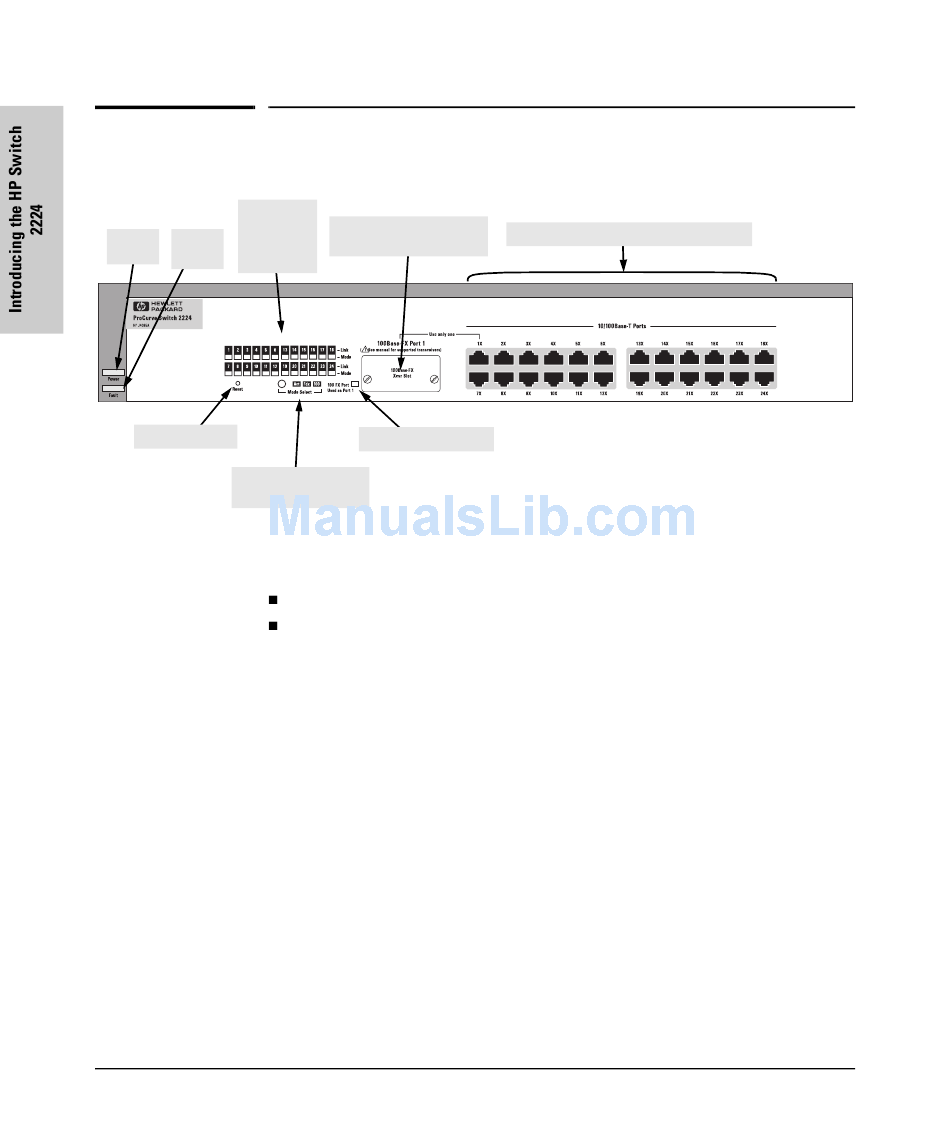

Front of the Switch

Front of the Switch
Link and
Mode LEDs
Power Fault
for each
LED LED
port

Reset button

Mode Select button
and indicator LEDs

Network Ports

Reset Button
This button is used to reset the switch while it is powered on. This action clears
any temporary error conditions that may have occurred, and executes the
switch self test.
1-2
Slot for
100Base-FX Transceiver
Port 1 indicator LED
24 auto-sensing 10/100Base-TX ports
one transceiver module slot for installing the 100Base-FX transceiver
module (HP J3193B)
10/100Base-TX RJ-45 ports
