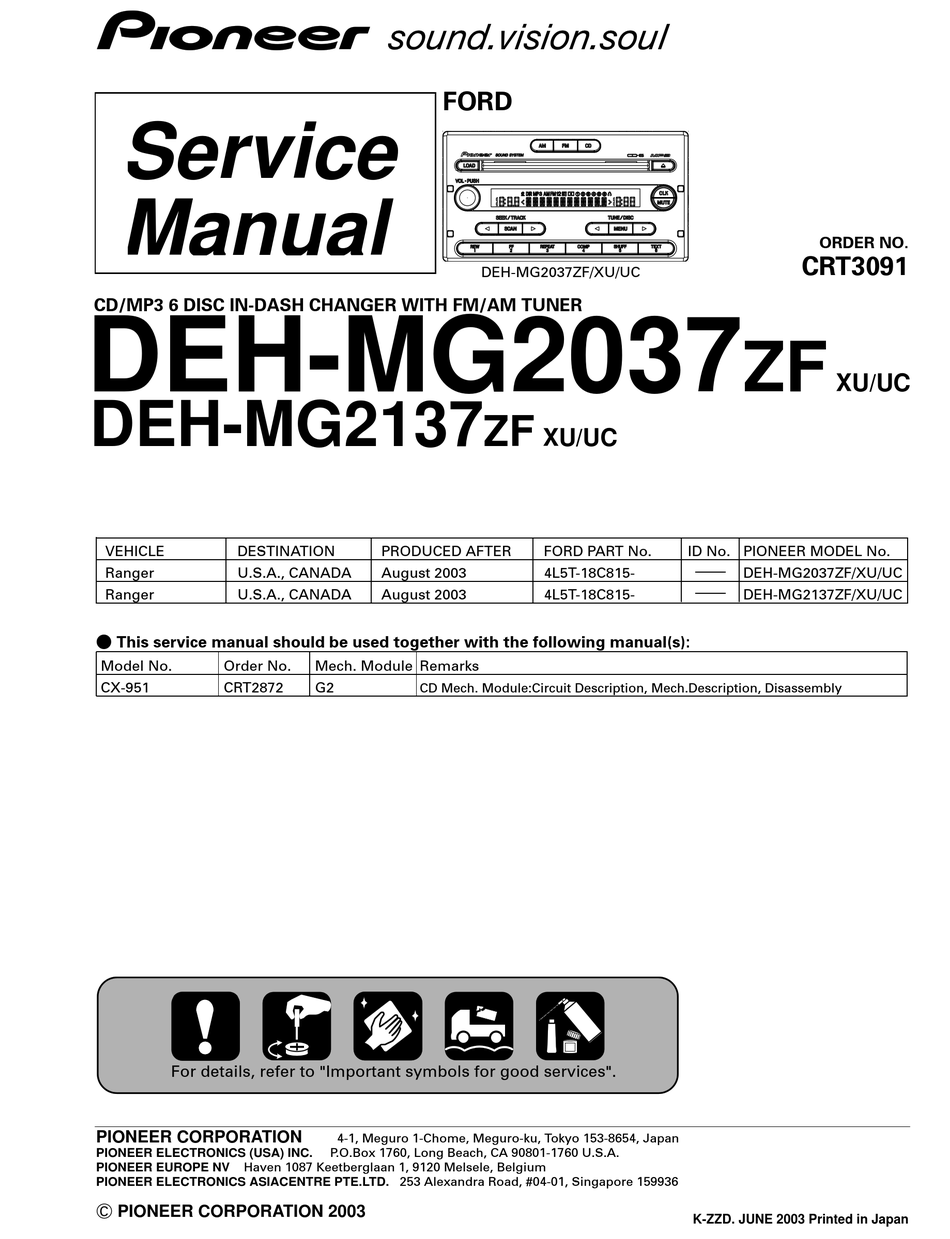

Page 1
PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2003 K-ZZD. JUNE 2003 Printed in Japan...
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. DEH-MG2037ZF/XU/UC...
IF interference ................95dB or more Image interference..............45dB or more Stereo Separation...............25dB or more(400Hz) AM tuner Frequency..................530-1710 kHz S/N 20dB useable sensibility .............33dBµ 6dB S/N 50dB +10dB, -6dB Distortion..................1.0% or less IF interference ................75dB or more Image interference..............60dB or more DEH-MG2037ZF/XU/UC...
Page 8
(2) CONTRAST TABLE DEH-MG2037ZF/XU/UC and DEH-MG2137ZF/XU/UC are constructed the same except for the following: Part No. Mark No. Symbol and Description DEH-MG2037ZF/XU/UC DEH-MG2137ZF/XU/UC 21 Mother Unit CWM8234 CWM8235 23 Screw BPZ26P080FTC Not used 33 Connector(CN703) CKX1067 Not used 36 Holder...
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or "ELECTRICAL PARTS LIST". Large size SCH diagram Guide page Detailed page CN411 FM:-22.5dBs AM:-33.0dBs CD:-1.0dBs CD:+0.0dBs (0dBs 1kHz) FM:-1.5dBs AM:-11.0dBs CD:+7.0dBs CN902 FAN MOTOR M871 CXM1283 SYSTEM CONTROLLER CN901 DEH-MG2037ZF/XU/UC...
Page 19
MOTHER UNIT FM:+24.5dBs AM:+13.0dBs POWER AMP CD:+33.0dBs DEH-MG2037ZF NOTE : Symbol indicates a resistor. Decimal points for resistor No differentiation is made between chip resistors and and capacitor fixed values discrete resistors. are expressed as : ← Symbol indicates a capacitor.
M3 CXC1143 RF AMP, CD MP3 DECOD DIGITAL SE PROCESSO CN41 CN14 CN31 PU UNIT(SERVICE)(PX1MP3) ELEVATION MOTOR M2 CXC1145 CAMEOK PCB UNIT CAMLOAD (LED) LOAD1 LOAD2 PCB UNIT CN13 (LOAD) M1 CXC1144 3+3ch DRIVER C D E F G H DEH-MG2037ZF/XU/UC...
Page 27
SIGNAL LINE FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE RF AMP, CD DECODER, MP3 DECODER, DIGITAL SERVO/ DATA PROCESSOR CONTROL UNIT(G2BM) MECHANISM CONTROLLER DEH-MG2037ZF/XU/UC...
For further information for respective destinations, be sure to check with the schematic dia- gram. 2.Viewpoint of PCB diagrams Capacitor Connector CAR HARNESS Not used SIDE A SIDE B P.C.Board Chip Part M871 FAN MOTOR DEH-MG2037ZF/XU/UC...
Page 37
SIDE A CAR HARNESS CN411 CN902 CN901 FRONT DEH-MG2037ZF/XU/UC...
Page 58
Unit Number : CWX2613 CKSSYB104K10 Unit Name : PCB Unit(SIDE) CKSSYB473K10 CKSSYB104K10 MISCELLANEOUS CKSRYB152K50 CKSSYB104K10 Spring Switch(CAMCLMP) CSN1052 CCSSCK2R0C50 Semi-fixed 1kΩ(B) CCP1338 CKSSYB104K10 RESISTORS CKSSYB103K16 CCSSCH680J50 CCSSCH470J50 RS1/16S562J RS1/16S562J CKSSYB682K25 RS1/10S391J CKSSYB104K10 RS1/10S391J CKSSYB104K10 RS1/16S0R0J 47µF/6.3V CCH1436 CEV221M4 RS1/16S0R0J DEH-MG2037ZF/XU/UC...
Page 59
Unit Number : CWX2760 Unit Name : PCB Unit MISCELLANEOUS BA6849FS Switch(HOME) CSN1057 Switch(CLAMP) CSN1057 RESISTORS RS1/16S221J RS1/16S221J RS1/10SR47J CAPACITORS CKSRYB104K16 Miscellaneous Parts List Motor Unit(CAMGEAR) CXC1144 Motor Unit(ELEVATION) CXC1145 Motor Unit(-A)(CRG) CXC1143 Variable Resistor 10kΩ CCW1023 PU Unit(PX1MP3)(Service) CXX1600 DEH-MG2037ZF/XU/UC...
*1) Note that the test mode is cancelled in the system microcomputer by switching the ACC OFF and ON, but that it is not in the CD microcomputer. Use the reset function for complete cancellation of the test mode. DEH-MG2037ZF/XU/UC...
• If you press the UP or DOWN for the focus search in the test mode, you must turn the power off immedi- ately. (Otherwise, the lens will be forced to stick to the top or bottom, potentially resulting in the burning of the actuator.) DEH-MG2037ZF/XU/UC...
Page 62
Single TR (91),0dB, and the factory setting respectively. Note: When you pressed the [SEEK UP] or [SEEK DOWN] key during the Focus Search, you must turn the power off immediately (otherwise, the lens can stick resulting in actuator damages). DEH-MG2037ZF/XU/UC...
Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the aver- age angle. • Hint Reloading the disc changes the clamp position and may decrease the "wobble". DEH-MG2037ZF/XU/UC...
3. LIFT durability test (Current disc <-> Door Open) At any position between CAM2P and CAM3P (display: 05, 07), press the 5 key. 4. ELV durability test (ELV1F <-> 6F) At the CAM1P position (display: 01), press the 5 key. DEH-MG2037ZF/XU/UC...
Page 66
MFWDTO ELV motor FWD time-out error during CAMRST operation CAMRST Err 0x91 0x92 MREVTO ELV motor REV time-out error during CAMRST operation MOVERCNT 0x93 Over-count error during CAMRST operation 0x94 MSPDERR The claws do not close during CAMRST operation. DEH-MG2037ZF/XU/UC...
Page 67
Lock NG after servo close New test mode 0x42 Sub code NG after servo close 0x43 New test mode Not applicable to the G2 mechanism. The claw SW value at the occurrence of error The rotation rate does not satisfy the spec. DEH-MG2037ZF/XU/UC...
- PCL output In the normal operation mode (the ACC switched ON, the standby mode cancelled), shift the TESTIN terminal to H. The clock signal is output from the CLKOUT terminal (Pin 39). The frequency of the clock signal is 32.768kHz. DEH-MG2037ZF/XU/UC...
Release the latch. Release the latch. Release the latch. Release the latch. Release the latch and then remove the Grille Assy. Grille Assy Fig.1 Removing the Frame (Fig.2) Remove the four screws and then remove the Frame. Frame Fig.2 DEH-MG2037ZF/XU/UC...
Page 70
Disconnect the connector and then remove the Chassis Unit. Chassis Unit Fig.3 Removing the Mother Unit (Fig.4) Remove the three screws. Straighten the tabs at three locations indicated. Remove the two screws and then remove the Mother Unit. Mother Unit Fig.4 DEH-MG2037ZF/XU/UC...
Page 71
3. Remove the four Dampers and then remove the Service Mechanism Unit(G2BM). Shorting solder Service Mechanism Unit(G2BM) Damper Spring B Sheet Holder Screw A Spring A Damper Sheet Spring B Bracket Screw C Sheet Spring A Damper Damper Sheet Screw B Control Unit Screw B (G2BM) Fig.5 DEH-MG2037ZF/XU/UC...
Page 72
PCB Unit(Side) GGD1250 Control Unit(G2BM) CN101 - Removing the PU Unit(PX1MP) 1. Set the mechanism to the shipment mode. 2. Remove the two screws A and two screws B. 3. Remove the Frame. Fig.6 DEH-MG2037ZF/XU/UC...
Page 73
PU Unit(PX1MP) together with the Screw Unit. Note: To assemble the PU Unit(PX1MP), insert the Spring on the PU rear between the PU Unit(PX1MP) and (PX1MP3) the Guide first. Fig.9 DEH-MG2037ZF/XU/UC...
7.1.2 CONNECTOR FUNCTION DESCRIPTION DEH-MG2037ZF/XU/UC POWER SUPPLY,SPEAKER FM/AM ANTENNA SUB WOOFER ANTENNA IN ILL+ CASE RF GND ILL- SW SHIELD START SW E/CLD CLOCK B.UP RUN/ACC RADIO GND POWER AMP GND DEH-MG2037ZF/XU/UC...
Diagnosis EEPROM : Clock output ROMDATA Diagnosis EEPROM : Data input / output FANPWR Cooling fan power output kdt$-kdt) 50-54 Key data input 4-0 Not used TESTIN Test program mode input kst%-kst! 57-61 Key strobe output 5-1 Power supply terminal DEH-MG2037ZF/XU/UC...
Page 76
Power supply terminal Tuner : PLL data input * PD5754A IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. Format Meaning C MOS N channel open drain DEH-MG2037ZF/XU/UC...
Page 79
Information on error correction (mute for Lch) C2D3 Information on error correction D.GND Ground for digital circuits Output of DRAM RAS cas) Output of DRAM Lower CAS cas! Output of DRAM Upper CAS Output of DRAM WE Output of DRAM OE DEH-MG2037ZF/XU/UC...
Page 80
Reversal input of TE Output of TE A.GND Ground for the analog system LDREGO Output of REG voltage for APC Input of PD Output of LD Assignment of pickup polarity A.VDD Power supply for the analog system * UPD63760GJ DEH-MG2037ZF/XU/UC...
Page 81
: Output enable input : Write enable input lcas : Power supply(3.3V) ucas : Ground(0V) SHORT BRAKE 30 A7 26 VSS Hall Bias Hall Bias Hall Bias Hall Bias Hall Bias Hall Bias BD7962FM LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT DEH-MG2037ZF/XU/UC...
Page 82
Spindle lock input Not used 50-57 AD0-7 Address/Data bus 0-7 BVDD B power supply Positive power supply (3.3V) BVSS B power supply GND 60-67 AD8-15 Address/Data bus 8-15 Not used Not used Not used Not used CD LSI chip select output DEH-MG2037ZF/XU/UC...
Page 83
LOADSW2 Loading detect switch 2 ELV_VOL ELV drive voltage select output LOD_VOL LOD drive voltage select output E2PROM data input/output E2PROM chip selection output SCKO E2PROM clock output FRXD For flash rewriting (received signal) * PE5335B Format Meaning CMOS DEH-MG2037ZF/XU/UC...
Page 85
Connect to the antenna through an L (LAU type) of 4.7µH.To cope with the power transmission line hums, insert a series circuit consisting of an L (a coil of about 100mH) + R (a resistor of 470 Ω to 2.2kΩ) between the GND. DEH-MG2037ZF/XU/UC...
Switch ACC OFF, and then, while simultaneously pressing the preset "2" and preset "5" buttons, switch ACC ON. Confirming "Shipment mode" setting When Shipment mode setting is started, "SHIPMENT" on display blinks and "SHIPMENT ON" for completion of the setting. DEH-MG2037ZF/XU/UC...
