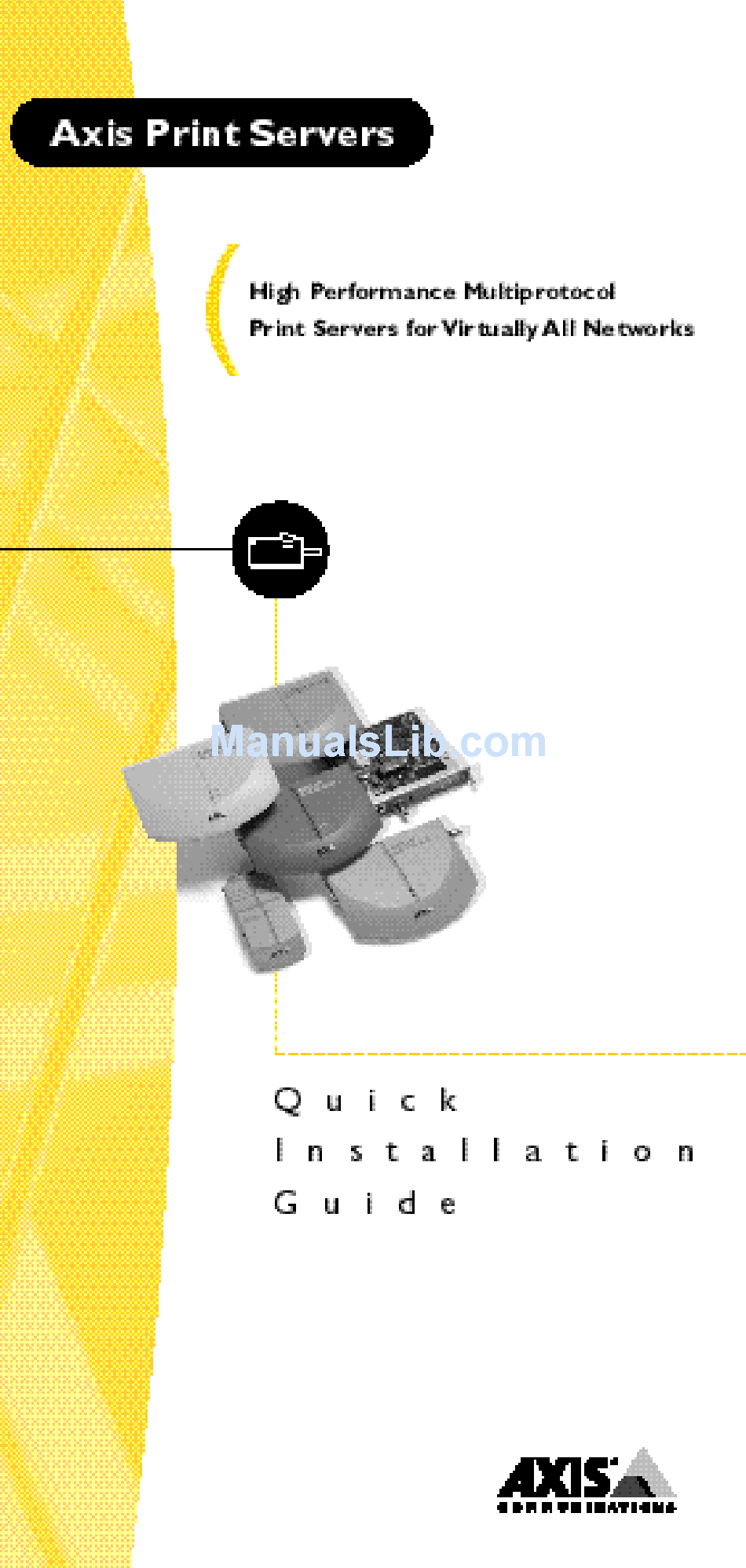

Axis 150 Quick Installation Manual

High performance multiprotocol print server for virtually all networks
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Axis 150

Summary of Contents for Axis 150

  • Page 2: Physical Description

    150/152. You need this number during the configuration. 2. Switch off the printer. Remove the AXIS 150/152 power supply. 3. AXIS 150 only: Connect your AXIS 150 to the network using a shielded twisted pair (10baseT) cable. 4. AXIS 152 only: Connect your AXIS 152 to the network using a shielded thin wire (10base2) cable.
  • Page 3 2. AXIS units previously installed using the AXIS NetPilot™ appear as ‘Network Print Servers’ and un-installed units are featured as ‘New Axis Units’. Select your AXIS 150/152 from the ‘New Axis Units’ sub-folder and then click the Install icon. The installation Wizard guides you through the basic installation.

  • Page 4: Windows Nt

    4. Select the AXIS printer port to be installed from the Available Ports list. The ports appear as <name>.LP1 and <name>.LP2, where <name> is AX followed by the last six digits of the AXIS 150/152 serial number. For example AX560B35. Click the Configure Port button.

  • Page 5: Windows For Workgroups

    The setup procedure is described below: 1. Install the AXIS Print Utility for Windows onto the file server. 2. Set up your AXIS 150/152 from the file server as described in the peer-to-peer printing section below, but additionally check the...

  • Page 6: Windows Clients Using Lantastic

    1. Double-click the AXIS Print Utility icon. 2. In the Port menu, click Add. 3. In the NPS Port list, select the AXIS 150/152 port to be installed. The ports appears as <name>.LP1 and <name>.LP2, where <name> is AX followed by last six digits of your print server number.
  • Page 7 MPTS/LAPS (LAN Server) or SETUP (LAN Manager) to activate Load AXIS Print Utility for OS/2 and install your AXIS 150/152: 1. Insert the AXIS Print Utility for OS/2 disk into your disk drive, and open an OS/2 window. Execute the install.exe program 2.
  • Page 8 AXIS 150/152 Quick Installation Guide Part No: 13925 Revision: 2.3, Date: October 1997 Copyright © Axis Communications AB, 1996-1997 China (Beijing Office) Phone: +86 - 10 6510 2705/6/7/8, Fax: +86 - 10 6510 2703 Email: axisbj@public3.bta.net.cn China (Shanghai Office) Phone: +86 - 21 6445 4522, Fax: +86 - 21 6445 4757 Email: axissh@npc.haplink.com.cn...
