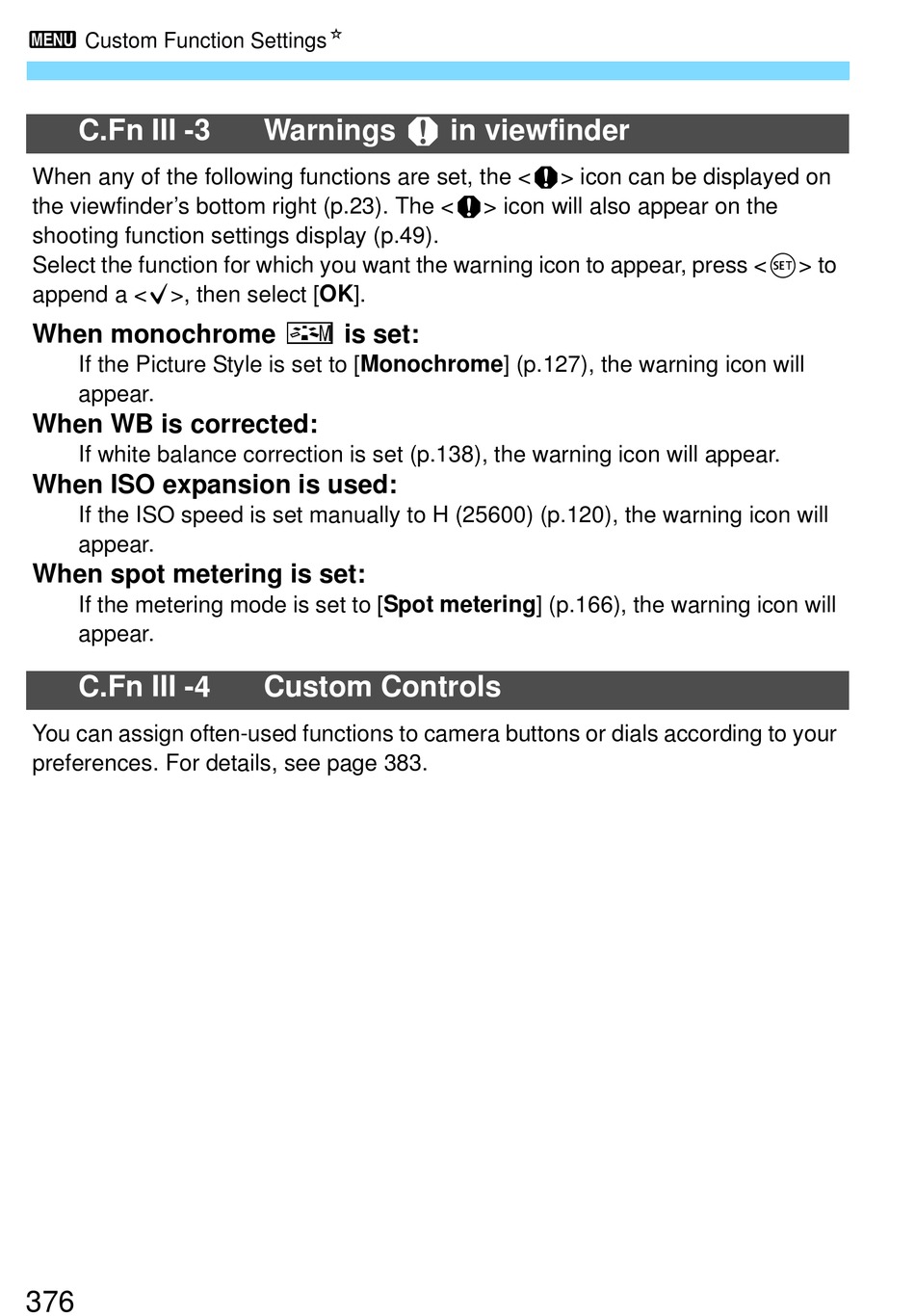

Canon EOS 70DN Basic Instruction Manual page 540

3 Custom Function SettingsN
C.Fn III -3
When any of the following functions are set, the <z> icon can be displayed on
the viewfinder's bottom right (p.23). The <z> icon will also appear on the
shooting function settings display (p.49).
Select the function for which you want the warning icon to appear, press <0> to
append a <X>, then select [OK].
When monochrome V is set:
If the Picture Style is set to [Monochrome] (p.127), the warning icon will
appear.
When WB is corrected:
If white balance correction is set (p.138), the warning icon will appear.
When ISO expansion is used:
If the ISO speed is set manually to H (25600) (p.120), the warning icon will
appear.
When spot metering is set:
If the metering mode is set to [Spot metering] (p.166), the warning icon will
appear.
C.Fn III -4
You can assign often-used functions to camera buttons or dials according to your
preferences. For details, see page 383.
376
Warnings z in viewfinder
Custom Controls
