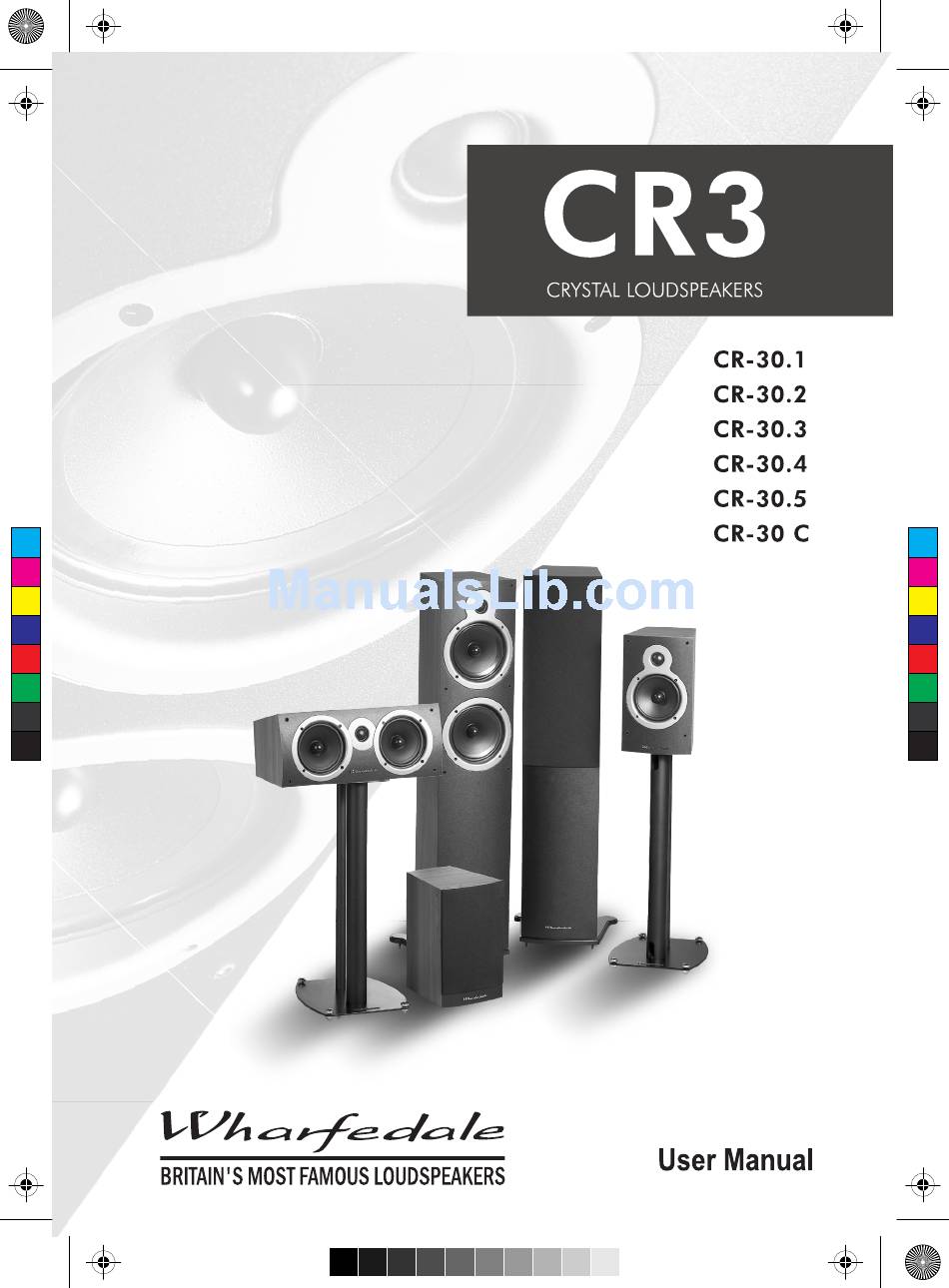

- Page 1 manual-01.pdf 2009-11-27 16:03:12...
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Before installing this product read all these instructions! This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Before making any connections, switch all the units in your system off at the mains. - Page 4 200 mm from the rear walls and 700 mm from may restrict the width of the optimum listening position. the side walls, facing slightly inwards. The CR-30.1, 30.2 and A rule of thumb is that the listener should be as far from the 30.3 may be stand or wall mounted or placed on a rigid shelf.
- Page 5 POSITIONING HOME CINEMA LOUDSPEAKERS 5.1 POSITIONING 2-4 metres >150 mm Place the front speakers as shown. Front >200 mm CENTRE loudspeakers should be placed away from walls for best results. Angling the speakers inward slightly will improve stereo images but too extreme an angle will impair movie sound.
- Page 6 150º Left Back Right Back WALL MOUNTING THE CR-30.1 LOUDSPEAKERS The crossover terminal panel of the CR-30.1 loudspeaker is CR-30.1 (Detail) provided with an integral keyhole slot for wall mounting. Wall mounting should be carried out by licensed sound contractors or technicians with appropriate qualifications and experience.
-
Page 7: Connecting Your Loudspeakers
CONNECTING YOUR LOUDSPEAKERS - 1 CR-30.1 TERMINAL PANELS All the loudspeakers connect to the amplifier via a twin terminal connecting panel. The CR30.1 has a keyhole mount integrated into the crossover panel. The positive (+) terminal is located at the right of the panel and is coded Red. -
Page 8: Stereo Connections
CONNECTING YOUR LOUDSPEAKERS - 2 STEREO CONNECTIONS Connect each loudspeaker to the correct channel of your amplifier or processor taking care to connect the Red, Positive (+) terminal of the speaker to the Red, Positive (+) terminal of the speaker output terminal of the amplifier, and similarly with the Black, Negative (–) terminal. -
Page 9: Troubleshooting
SETTING UP A STEREO SYSTEM Ensure that the listening seat is central to the loudspeakers. Play some music with which you are familiar. Adjust the speakers for the optimum performance. You will find that a few degrees more or less “toe in” can affect the sound dramatically. The sound should be well balanced with a firm bass. -
Page 10: Further Information
FURTHER INFORMATION CARE AND MAINTENANCE AUTHORISED SERVICE CENTRES If you play the speakers with the grilles off exercise great International Audio Group, Unit 4, St Margaret’s Way, care. NEVER touch drive units which are easily damaged. Stukeley Meadows Industrial Estate Huntingdon, Cambs, The loudspeaker cabinets can be cleaned with a damp PE29 6EB cloth or with a spray furniture polish and a soft cloth. - Page 11 SPECIFICATIONS CR-30.1 CR-30.2 CR-30.3 CR-30.4 CR-30.5 Front Speakers Format Bookshelf/Wall Bookshelf/Stand Bookshelf/Stand FloorStanding FloorStanding Bass Unit 100mm 170mm 170mm 170mm 170mm Bass/Midrange unit 170mm(Rad) 170mm Tweeter 25mm 25mm 25mm 25mm 25mm Rec. Amplifier Power 25-100W 25-125W 25-150W 25-150W 25-200W Nominal Impedance...
- Page 12 manual-02.pdf 2009-11-27 16:05:49...
