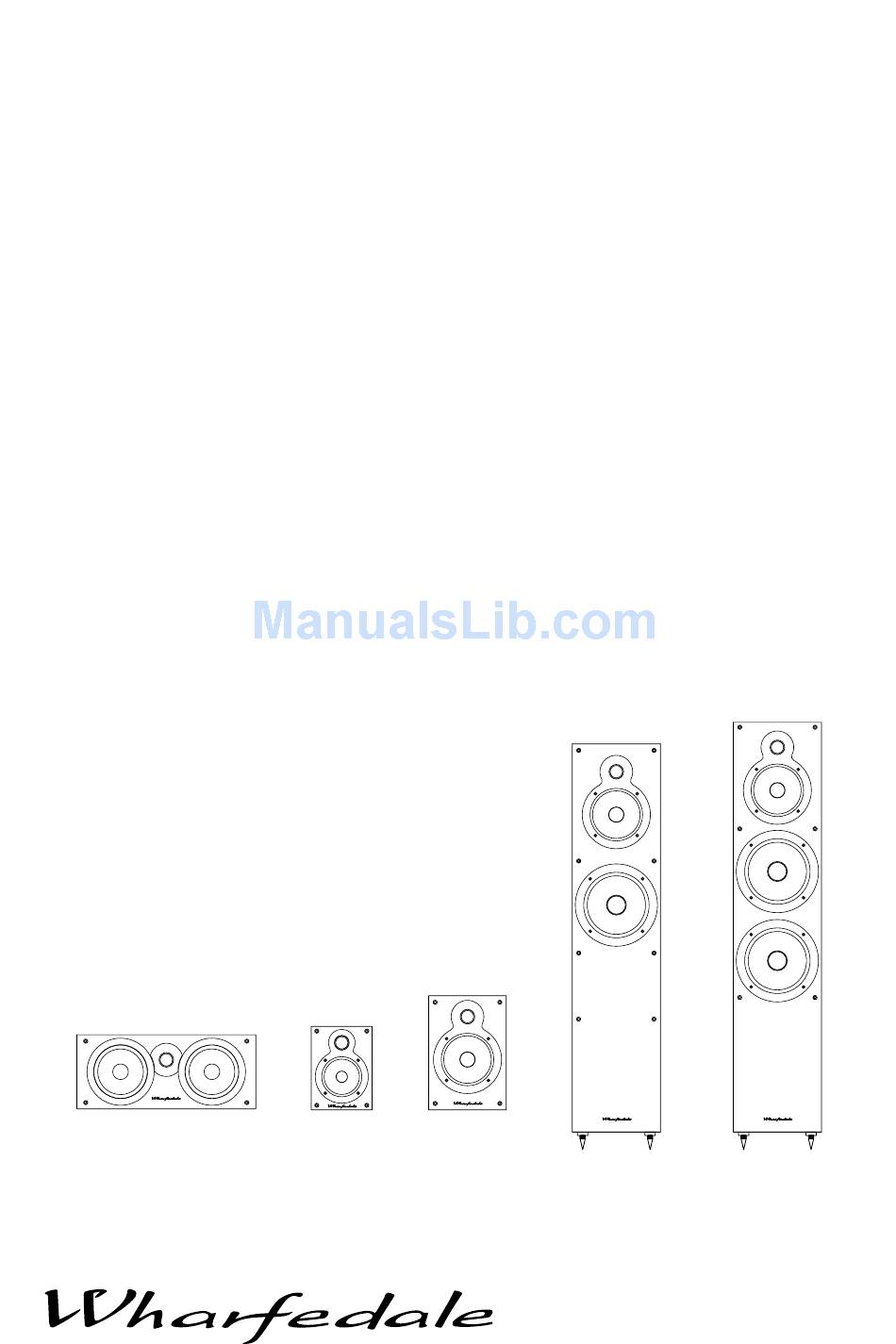

- Page 1 CRYSTAL 4 SERIES Crystal-4.1 Crystal-4.2 Crystal-4.3 Crystal-4.4 Crystal-4.C User's Manual...
-
Page 2: Important Safety Information
USER INSTRUCTIONS: Crystal 4 Series IMPORTANT SAFETY INFORMATION BEFORE INSTALLING THIS PRODUCT READ ALL THESE INSTRUCTIONS! This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Before making any connections, switch all the units in your system off at the mains. - Page 3 USER INSTRUCTIONS: Crystal 4 Series Preparing The Crystal-4.3 and Crystal-4.4 Loudspeakers Levelling The Loudspeaker Attaching The Spikes Invert the loudspeaker and place int carefully on the Place a soft cloth on the floor to protect the speaker. floor. If the floor is not perfectly level you will find that Invert the loudspeaker and place it on the cloth.
- Page 4 700mm from the side walls, facing slightly inwards. The Crystal-4.1 and Crystal-4.2 maybe A rule of thumb is that the listener should be as far stand or wall mounted or placed on a rigid shelf.
- Page 5 USER INSTRUCTIONS: Crystal 4 Series Positioning Home Cinema Loudspeakers 5.1 Positioning Place the front speakers as shown. Front loudspeakers should be placed away from the walls for best results. Angling the speakers inward slightly will improve stereo images but too extreme an angle will impair the movie sound.
- Page 6 USER INSTRUCTIONS: Crystal 4 Series Doby Labs Recommended 7.1 Placement Centre Right Front Left Front 22º 30º Left Surround Right Surround 90º 110º 135º (Single back channel for 6.1sound) 150º Left Back Right Back Wall Mounting The Crystal-4.1 Loudspeakers The crossover terminal panel of the Crystal-4.1 loudspeaker is provided with an integral keyhole slot for wall mounting.
-
Page 7: Connecting Your Loudspeakers
USER INSTRUCTIONS: Crystal 4 Series Connecting Your Loudspeakers Terminal Panels All the loudspeakers are connected to the amplifier via a twin terminal connecting panel. The positive terminal is located at the right of the panel and is coded red, the negative terminal is coded black. Cable Preperation: Prepare a suitable length of loudspeaker cable for each unit. -
Page 8: Stereo Connection
USER INSTRUCTIONS: Crystal 4 Series Connecting Your Loudspeakers Stereo Connection STEREO AMPLIFIER ROOM PLACEMENT 5 Channel Connection RIGHT CENTRE LEFT To Subwoofer SURROUND RIGHT SURROUND LEFT ROOM PLACEMENT 7 Channel Connection... -
Page 9: Troubleshooting
USER INSTRUCTIONS: Crystal 4 Series Setting Up A Stereo System Ensure that the listening seat is central to the loudspeakers. Play some music with which you are familiar. Adjust the speakers for the optimum performance. You will find that a few degrees more or less ‘toe in’ can effect the sound dramatically. The sound should be well balanced with a firm bass. -
Page 10: Further Information
USER INSTRUCTIONS: Crystal 4 Series Further Information Care and Maintenance Authorised Service Centres If you play the speakers with the grilles off exercise great care. NEVER touch drive units which are easily damaged. The loudspeaker cabineys can be cleaned IAG UK LTD. with a damp cloth or with a spray furniture polish and IAG House 13/14 Glebe Road, Huntingdon, a soft cloth. -
Page 11: Specifications
USER INSTRUCTIONS: Crystal 4 Series Specifications Modle Crystal-4.1 Crystal-4.2 Crystal-4.3 Crystal-4.4 General description Bookshelf Speaker Bookshelf Speaker Floorstanding Speaker Floorstanding Speaker Enclosure type Bass Reflex Bass Reflex Bass Reflex Bass Reflex Transducer complement 2-way 2-way 3-way 3-way Bass driver 100mm Woven Kevlar Cone... - Page 12 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK Tel: +44(0)1480 452561 Fax: +44(0)1480 413403 www.wharfedale.co.uk IAG reserves the right to alter the design and specifications without notice. All rights reserved IAG Group Ltd. Wharfedale is a member of the International Audio Group. CODE: WH14-MNL006a...
