Confidential, for authorized service technicians only!
Do not disclose this information to or share these documents
Vertraulich! Nur für autorisierte Servicetechniker!
Nicht zur Weitergabe an Dritte freigegeben!

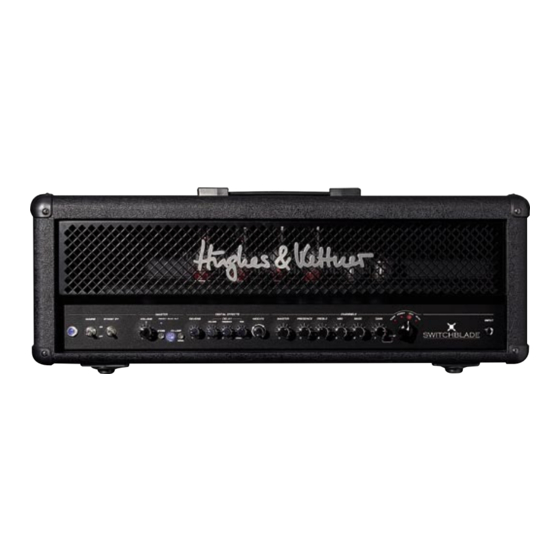

SwitchBlade
SB Head
Note!
The components used in this product - particularly parts
affecting safety as well as speakers and transformers -
were developed and manufactured to certain specifications.
Please use original spare parts only to ensure the product
remains fully functional and safe.
Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany
Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany
with third parties.
Series
Achtung!
Die in diesem Produkt verwendeten Komponenten, insbeson-
dere sicherheitsrelevante Teile, Lautsprecher und Transforma-
toren wurden nach spezifischen Vorgaben entwickelt und ge-
fertigt. Bitte benutzen Sie ausschließlich Original-Ersatzteile –
nur so ist die volle Funktionalität und Sicherheit gewährleistet.
2008/06/14
Advertisement
Table of Contents
Related Manuals for Hughes & Kettner SwitchBlade series
Summary of Contents for Hughes & Kettner SwitchBlade series
- Page 1 2008/06/14 Service Documents Confidential, for authorized service technicians only! Do not disclose this information to or share these documents with third parties. Vertraulich! Nur für autorisierte Servicetechniker! Nicht zur Weitergabe an Dritte freigegeben! SwitchBlade Series SB Head Note! Achtung! The components used in this product - particularly parts Die in diesem Produkt verwendeten Komponenten, insbeson- affecting safety as well as speakers and transformers - dere sicherheitsrelevante Teile, Lautsprecher und Transforma-...
- Page 2 Directory features page: 3-11 drawing-numbers-example page: standard for single wire confection page: HU1405-SwitchBlade Head page: exploded drawings: complete Rev.: A page: wooden cabinet Rev.: A page: chassis/ cabling Rev.: A page: 17-20 preamp assembly Rev.: A page: poweramp assembly Rev.: A page: preamp Rev.: 2B...
- Page 12 DRAWING-NUMBERS EXAMPLE HK0106-EX-R01-1A REVISION VERSION SERIAL NUMBER DEPARTMENT: R = R&D CHARACTER: BL = SHEET METAL / BLECH EX = EXPLODED DRAWING / EXPLOSIONSZEICHNUNG HZ = CABINET / HOLZGEHÄUSE KU = PLASTIC / KUNSTSTOFF LP = PCB / LEITERPLATTEN SO = MISCELLANEOUS / SONSTIGES SP = SCHEMATIC / SCHALTPLÄNE TR = TRANSFORMER / TRANSFORMATOR GK = WIRING DIAGRAM / GERÄTEVERKABELUNG...
- Page 13 Stand 17. Jun 04 Standard for single wire confection. 485 W 1015 style 1015 according UL specifications I = completely insulated with black shrinktube or appropriate sleeve IT = partly insulated; only crimp connection insulated. no marking = without insulation Z = with additional junction no marking = without additional junction W = angled faston...
- Page 14 Service Documents HU1405 SwitchBlade Head Confidential, for authorized service technicians only! Do not disclose this information to or share these documents with third parties. TECHNICAL SERVICE: Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany...
- Page 15 pos. part-no. 1 part-no. 2 part-no. 3 description Beschreibung quantity 502191 (230V) 502192 (100-120) chassis SwitchBlade Head Chassis SwitchBlade 959072 SwitchBlade Head cabinet complete SwitchBlade Head Holzgehäuse komplett 959076 MIDI Footswitch FSM-432 MIDI Footswitch FSM-432 970781 sheet metal SwitchBlade rear panel Blech SwitchBlade Rückwand 970782 sheet metal SwitchBlade front grille...
- Page 16 pos. part-no. 1 description Beschreibung quantity shielding plate SwitchBlade Head Schirmplatte SwitchBlade Head wooden cabinet SwitchBlade Head Holzgeh. SwitchBlade Head 970646 sheet metal Warp X ventilation grille RAL 9005 Blech Warp X Lüftungsgitter RAL 9005 976039 foot, two-part, own design Fuss, 2 Teile, eigenes Design E C90178 976045...
- Page 17 21 E 974007 E 944029 6 E 944011 12 E 952014 28 E 974154 E 974520 10 E 948040 (230V) E 948039 (117V) E 948039 (100V) E 976007 5 E 944007 E 944019 4 E 932016 (230V) E 932025 (117V) E 932025 (100V) E 970779 HU1405-BL-R01-1I...
- Page 18 pos. part-no. 1 part-no. 2 part-no. 3 description Beschreibung quantity 544081 Switchblade Preamp 54 Switchblade Preamp 544082 SwitchBlade FX board SwitchBlade FX Board 544083 SwitchBlade Power Amp SwitchBlade Power Amp 932016 (230V) 932025 (117V) 932025 (100V) microfuse slowblow 1,6A 5x20 IEC 127(230V); 4,0A (117/100V) Feinsicherung 1,6A Träge 5x20 IEC 127(für 230V);...
- Page 19 TITLE: HU1405-SWITCHBLADE HEAD EXPLODED DRAWING CHASSIS 66606 St. Wendel / Germany DRAWING-NO.: VERSION: REVISION: HU1405-EX-R03-1A DATE: PAGE: DRAWN BY: C. LORIS 13.07.2006 CHECKED BY: DATE: PAGES MATERIAL: FINISH: INDEX CHANGES RESP. FILENAME: HU1405-EX-R03-1A-Chassis...
- Page 20 VERSION 100V/117V blue 100V white 117V E 962340 chassis E 962103 chassis power audio transformer VERSION 220-230V/240V white 245V blue 230V power inlet E 962340 AWG16, UL, CSA 16-B-300-638I-488I E 965627 E 962103 flat ribbon cable 12-1-140mm AWG16, UL, CSA mainstransformer 16-YG-100-638-638 E 962184...
- Page 21 pos. part-no. 1 description Beschreibung quantity 544081 SwitchBlade Input board (part of Pre Amp) SwitchBlade Inputboard (Teil von Pre Amp) 544081 SwitchBlade Lamp (part of Pre Amp) SwitchBlade Lamp (Teil von Pre Amp) 544081 SwitchBlade Switch (part of Pre Amp) SwitchBlade Switch (Teil von Pre Amp) 544081 SwitchBlade Pre Amp...
- Page 22 pos. part-no. 1 part-no. 2 part-no. 3 description Beschreibung quantity 544083 SwitchBlade Power Amp SwitchBlade Power Amp 972013 Insulation Sleeve IB6 Insulator Sleeve IB6 974056 hexagon PCB spacer, M3x8, brass, nickel plated Dist. Bol 2xInnengew. M3*8 vn 974063 plastic PCB spacer, 3.2x6x3, Polyamid white Dist.Hülse PE 3,2*6*3 [mm] 974077 cross recessed panhead screw, M3x5, black...
- Page 23 TITLE: SWITCHBLADE HEAD HU1405 PREAMP 66606 St. Wendel / Germany DRAWING-NO.: VERSION: REVISION: HU1405-LP-R01-2B DATE: PAGE: DRAWN BY: ubaris 11.07.2006 INDEX CHANGES RESP. CHECKED BY: DATE: PAGES MATERIAL: FINISH: OBERFLÄCHE FILENAME: HU1405-LP-R01-2B_PREAMP_HEAD...
- Page 24 TITLE: SWITCHBLADE HEAD HU1405 PREAMP 66606 St. Wendel / Germany DRAWING-NO.: VERSION: REVISION: HU1405-LP-R01-2B DATE: PAGE: DRAWN BY: ubaris 11.07.2006 INDEX CHANGES RESP. CHECKED BY: DATE: PAGES MATERIAL: FINISH: OBERFLÄCHE FILENAME: HU1405-LP-R01-2B_PREAMP_HEAD...
- Page 25 Spare Parts List for: HU1405-LP-R01-2B Project: Sw itchblade Head Project Number: HU1405 Assembly: Preamp pos. part no. description Bezeichnung reference designators quantity 892001 SMD digital poti 200kOhm SMD Digital Poti 200kOhm 892002 SMD digital poti 20kOhm SMD Digital Poti 20kOhm U7, U9, U10 914033 poti B10K lin mono...
- Page 26 TITLE: SWITCHBLADE HEAD HU1405 POWERAMP 66606 St. Wendel / Germany DRAWING-NO.: VERSION: REVISION: HU1405-LP-R02-1D DATE: PAGE: DRAWN BY: ubaris 17.07.2006 INDEX CHANGES RESP. CHECKED BY: DATE: PAGES MATERIAL: FINISH: OBERFLÄCHE FILENAME: HU1405-LP-R02-1D_POWERAMP_HEAD...
- Page 27 Spare Parts List for: HU1405-LP-R02-1D Project: Sw itchblade Head Project Number: HU1405 Assembly: Pow eramp pos. part no. description Bezeichnung reference designators quantity 911129 resistor axial 680 Ohm 11W Drahtw id. axial 680 Ohm 11W 926006 electrolytic capacitor axial 15µF 450V Elko axial 15µF 450V C13, C14 926014...
- Page 28 Spare Parts List for: HU1405-LP-R03-1C Project: Sw itchblade Head Project Number: HU1405 Assembly: FX-Board pos. part no. description Beschreibung reference designators quantity push button CIC WPML-2Y-SL Drucktaster CIC WPML-2Y-SL 950048 Sw itchcab not included (see page xx) diode jack MAB 5 SH Wprint Diodenbuchse MAB 5 SH Wprint 952012 jack Rean NMJ 4 HCD 2...
- Page 29 Spare Parts List for: HU1405-LP-R04-1B Project: Sw itchblade Head Project Number: HU1405 Assembly: Footsw itch FSM432 pos. part no. description Bezeichnung reference designators quantity 936003 LED 3mm red standard diffused LED 3mm rot Standard diffused LD5, LD4, LD3, LD2, LD1 942074 IC ATmega8L-8PU MC for FSM-432 IC ATmega 8L-8PU MC für FSM-432...
- Page 30 In and output terminals have to be marked with secondary and primary and a connection identitication! 230/245V (245V) Color: White 56,00 Faston: 6,3X0,8 insulates Length: 250mm 230/245V (230V) Color: Blue Faston: 6,3X0,8 insulates LABEL Length: 250mm 230/245V (0V) Color: Brown Faston: 4,8X0,8 insulates Length: 200mm Shield winding GND...
- Page 31 In and output terminals have to be marked with secondary and primary and a connection identitication! 100/117V (117V) Color: White 56,00 Faston: 6,3X0,8 insulates Length: 250mm 100/117V (100V) Color: Blue Faston: 6,3X0,8 insulates LABEL Length: 250mm 100/117V (0V) Color: Brown Faston: 4,8X0,8 insulates Length: 200mm Shield winding GND...
- Page 32 In and output terminals have to be marked with Starting from the version "HU1405-TR-R02-1C" the isolation system secondary and primary and a connection identitication! was improved in relation to earlier models ! Details: 52,00 1x50% insulation layer between the 3rd and 4th layers of windings of both the primaries. Anode1 (P1), Blue, 350mm, Pin 6 +A (CT), Violet, 350mm, Pin 2 AMP,...
- Page 33 +15V+5V C105 HU1405-SP-R01_Preamp.Sch 220u/25V HU1405-SP-R01_Preamp 68UH Preamp-OUT +15V Preamp-OUT Send PRE-TUBE Ret. PRE-TUBE +15V Send PRE-TUBE Send EXT-FX TO POWERAMP Ret. EXT-FX Ret. PRE-TUBE SGND Power-FAIL LEAD&ULTRA REL-CRUNCH POWER-DAMP MUTE MTA100-16P NDK-R0-B32 R165 270R JST-S03B-EH LD13 LD12 LD14 5MM-B R166 V IN P2_0 270R...
- Page 34 Tune-OUT Tune-OUT R164 HCF4053B SL-06P03X2 SL-06P03X2 100n/63V-K SCK1 SL-06P03X2 100n/63V-K 100n/63V-K MISO-RESET LED-MIDI-LEARN Ch-Switch1 C_Tune-ON PB0 (ICP) PB0 (ICP) PB0 (ICP) 100n/63V-K 100n/63V-K 100n/63V-K MIDI-LEARN Ch-Switch2 C_LE&UL-BOOST PB1 (OC1A) PB1 (OC1A) PB1 (OC1A) FS2-2 C_LEAD&ULT PB2 (SS/OC1B) AVCC PB2 (SS/OC1B) AVCC PB2 (SS/OC1B) AVCC...
- Page 35 R110 R114 10u/63V Send PRE-TUBE Ret. REVERB Ret. REVERB 4MEG7 +15V +15V 2u2/35V-T MC33078P(MOT) R112 INPUT U11A MC33078P(MOT) MC33078P(MOT) Preamp-OUT 22u/50V 470R AWG24-07-2.54 U12A TPTHTH25 3n3/63V U16B R102 22u/50V +15V R109 U12B 10n/63V 22u/50V HCF4053B BZX55V_5V6 100n/63V 10n/63V +7,5V 1MEG R115 RM122-02 R104...
- Page 36 Audio- power- transformer:HU1405-TR-R02-1A Bias_T6 Bias_T5 Bias_T4 RM122-02 Bias_T3 SPEAKER U_350V U_Buffer1 1K0/5W U_Fet Anode2 orange 16 OHM JP2A EL34B-STR-N-PCB EL34B-STR-N-PCB 16 OHM AMP_0-641970-1N JP3B SL-14P07X2 brown 8 OHM RM122-02 HU1405-SP-R02_Power-supply 1K0/5W green HU1405-SP-R02_Power-supply.Sch SPEAKER AMP_0-641970-1N +A 460V 8 OHM +A 460V +B 440V 220K +B 440V...
- Page 37 +A 460V +A 460V +B 440V +B 440V T630mA-FAB 680/10W STAND BY 1N5408-R125 FASTON-4.8-ST 220K 220u/350V 1N5408-R125 33u/500V 1N5408-R125 220K 220u/350V Mains transformer for 220-230V / 240VAC - Type: HU1405-TR-R01-1A 1N5408-R125 Mains transformer for 100V / 120VAC - Type: HU1405-TR-R03-1A FASTON-4.8-ST POWERFAIL POWERFAIL...
- Page 38 +15V RXE020-60V/0.2A + C1 2u2/25V-T MC33078N(ST) RM122-02 22u/50V FX Send 1R0/1W 2K2/1W RM122-02 -10dB FX Return WPML2-S-Y -10dB SW1B WPML2-S-Y SW1C MIDI THRU MAB5SH 22u/50V AWG24-12-2.54 Send EXT-FX MIDI IN MC33078N(ST) Ret. EXT-FX +15V MIDI 220n/63V MAB7_SH-L TO PREAMP-BOARD BZX55V_4V7 2K2/1W 2K2/1W 470R/1W...
- Page 39 CTRL IN AWG24-05-2.54 AWG24-05-2.54 BZX55V_5V1 220n/63V-K RM223-02 SEG_A PB0 (ICP) SEG_B PB1 (OC1A) SEG_C PB2 (SS/OC1B) AVCC SEG_D PB3 (MOSI/OC2) AREF SEG_E PB4 (MISO) MIDI OUT SEG_F 100n/63V-K SEG_A SEGa10 PB5 (SCK) SEG_G PB6 (XTAL1/TOSC1) 150R SEG_DP PB7 (XTAL2/TOSC2) SP1.5Q SEG_B LED1 PD0 (RXD)
- Page 40 TITLE: SWITCHBLADE HEAD HU1405 PREAMP 66606 St. Wendel / Germany DRAWING-NO.: VERSION: REVISION: HU1405-LP-R01-2B DATE: PAGE: DRAWN BY: ubaris 11.07.2006 INDEX CHANGES RESP. CHECKED BY: DATE: PAGES MATERIAL: FINISH: OBERFLÄCHE FILENAME: HU1405-LP-R01-2B_PREAMP_HEAD...
- Page 41 TITLE: SWITCHBLADE HEAD HU1405 POWERAMP 66606 St. Wendel / Germany DRAWING-NO.: VERSION: REVISION: HU1405-LP-R02-1D DATE: PAGE: DRAWN BY: ubaris 17.07.2006 INDEX CHANGES RESP. CHECKED BY: DATE: PAGES MATERIAL: FINISH: OBERFLÄCHE FILENAME: HU1405-LP-R02-1D_POWERAMP_HEAD...
- Page 42 TITLE: SWITCHBLADE HEAD HU1405 FX-BOARD 66606 St. Wendel / Germany DRAWING-NO.: VERSION: REVISION: HU1405-R03-1C DATE: PAGE: DRAWN BY: ubaris 17.07.2006 INDEX CHANGES RESP. CHECKED BY: DATE: PAGES MATERIAL: FINISH: OBERFLÄCHE FILENAME: HU1405-LP-R03-1C_FXBOARD...
- Page 43 TITLE: Switchblade HU1405 FSM432 Footswitch 66606 St. Wendel / Germany DRAWING-NO.: VERSION: REVISION: HU1405-LP-R04-1B DATE: PAGE: DRAWN BY: ubaris 20.07.2006 INDEX CHANGES RESP. CHECKED BY: DATE: PAGES MATERIAL: FINISH: Fehler: Keine Referenz OBERFLÄCHE FILENAME: HU1405-LP-R04-1B_FSM432_Switchboard...
