Summary of Contents for Wasp WPA 1000II

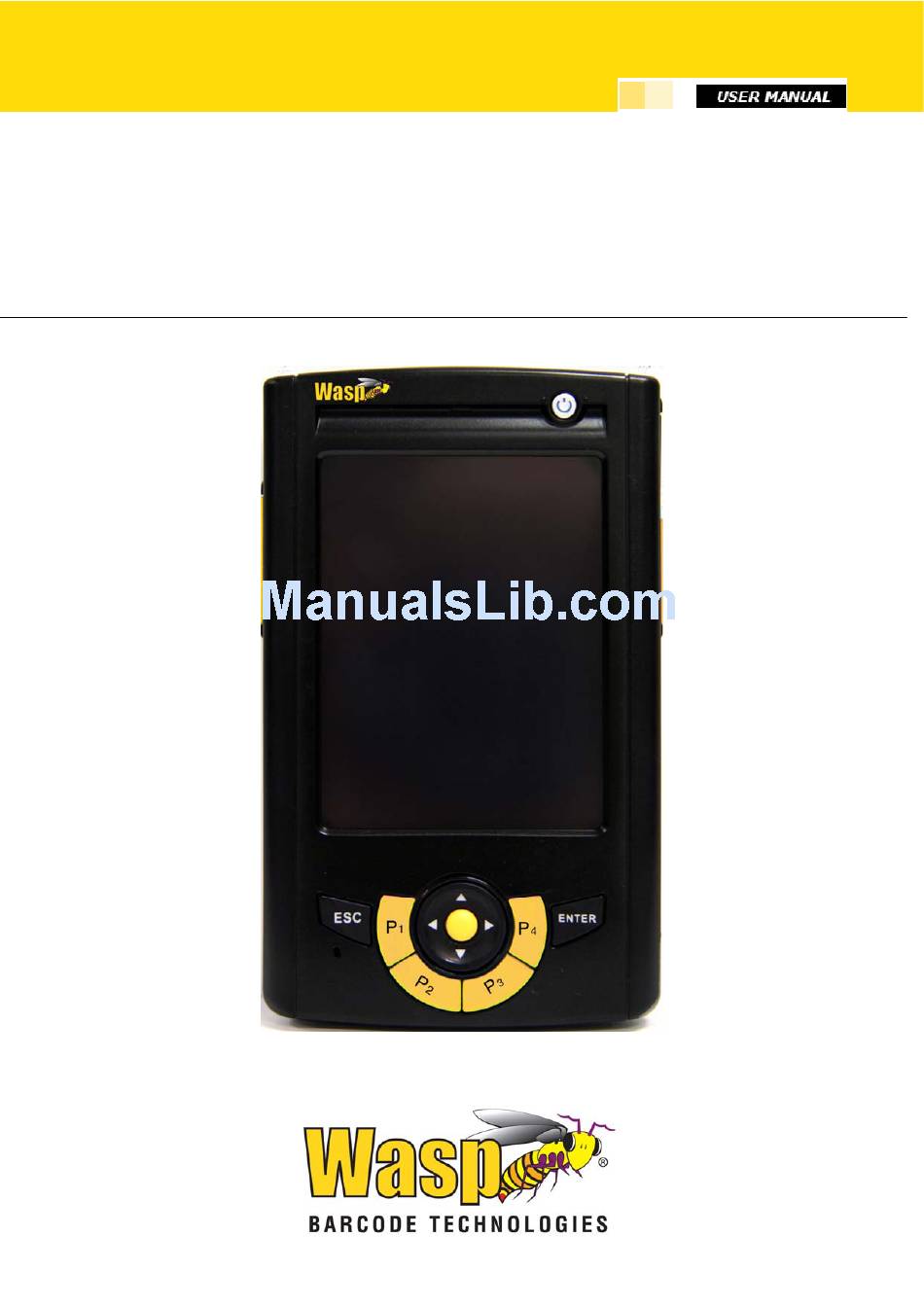

- Page 1 Wasp WPA 1000II...
- Page 2 (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Wasp Technologies. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from Wasp Technologies.
- Page 3 If the main battery is removed, the backup battery ensures the data on SDRAM is safe for up to 2 hours. To prevent data loss, do not leave the WPA 1000II uncharged with the main battery removed for an extended period. For more details, refer to the section titled Charging the Battery.
- Page 4 -20°C to 60°C, however they may deplete more rapidly at the higher temperature ranges. It is recommended to store batteries within normal room temperature ranges. Warranty The following items are covered under the Wasp Limited Warranty if free from defects during normal use: WPA 1000II – 1-year limited warranty.
-
Page 5: Table Of Contents
Chapter 1 - Getting Started ................1 1.1 Introducing the WPA 1000II ..............1 1.2 WPA 1000II Product Introduction & Accessory Kit ......2 1.3 Tour of the WPA 1000II ............... 3 1.4 Setting up the WPA 1000II ..............5 1.4.1 Installing the Battery .............. - Page 6 WPA 1000II User Manual Chapter 5 - Advanced Settings ..............20 5.1 Performing a Hardware Reset ............20 5.1.1 Performing a Warm Boot ............20 5.1.2 Performing a Cold Boot ............20 Appendix I - System Specifications ............22...
-
Page 7: Chapter 1 - Getting Started
Chapter 1 - Getting Started 1.1 Introducing the WPA 1000II Thank you for purchasing the WPA 1000II Mobile Computer. Your WPA 1000II was designed for users who need a compact and durable portable computer for data collection and real time transactions. The WPA 1000II Mobile Computer is a compact mobile computing device designed for maximum durability. -
Page 8: Wpa 1000Ii Product Introduction & Accessory Kit
WPA 1000II User Manual 1.2 WPA 1000II Product Introduction & Accessory Kit The following accessories are included with the WPA 1000II: WPA 1000II Terminal Power Adapter* Battery Pack Stylus with bungee USB docking station USB charging cable lanyard (optional) QRG/UM CD-ROM * Replaceable clip plugs are available, depending on the region. -
Page 9: Tour Of The Wpa 1000Ii
WPA 1000II User Manual 1.3 Tour of the WPA 1000II The following section describe the main components and features of the WPA 1000II. Front View Component Description Barcode laser scanner Reads and captures information on a barcode label. (optional) Indicates the battery charging and barcode scanning status. - Page 10 WPA 1000II User Manual Includes a software keyboard button, navigation key and Keypad application buttons to launch Microsoft Outlook Mobile programs. (Reserved) Left scanner trigger key Press to activate the barcode laser scanner. Cord holder Eyelet for holding the elastic bungee lanyard.
-
Page 11: Setting Up The Wpa 1000Ii
WPA 1000II User Manual 1.4 Setting up the WPA 1000II Perform the following set up tasks to begin using your device: Install the battery pack. Charge your device. Power on the WPA 1000II 1.4.1 Installing the Battery WARNING! There is a risk of fire and burns if the battery pack is handled improperly. -
Page 12: Charging The Wpa 1000Ii
You can charge your device using the USB charging cable or the docking station. CAUTION! Operating the WPA 1000II for the first time without the AC adapter, and without fully charging the backup battery may result in loss of data stored in RAM memory. -
Page 13: Powering On The Wpa 1000Ii
1.5 Powering On the WPA 1000II After you have initially charged your device for about 16 hours, the device is ready to be used. - Page 14 Start → Settings → System tab → Screen. The WPA 1000II will prompt you to calibrate the unit by tapping a sequence of screen locations. Tap gently but firmly. When you have completed the series of taps, press the Enter button to confirm it.
-
Page 15: Chapter 2 - Using The Hardware
WPA 1000II User Manual Chapter 2 - Using the Hardware 2.1 Using the Keypad The WPA 1000II keypad has a navigation key and six special keys to launch particular applications and display the on-screen keyboard. No. Button Name Description Press the ESC button to exit from the section you entered. -
Page 16: Using The Stylus
2.2 Using the Stylus CAUTION! Never use anything other than a WPA 1000II stylus on the screen; using a different device may cause permanent damage. Push the stylus in the direction of the arrow, then pull out to remove the stylus from its holder. -
Page 17: Using The Sdio/Mmc Slot
WPA 1000II User Manual 2.3 Using the SDIO/MMC Slot Your device has an expansion slot compatible with a range of SD, SDIO, and MMC storage cards, which are primarily used to back up or transfer files and data. To insert a storage card:... -
Page 18: Chapter 3 - Getting Connected
WPA 1000II User Manual Chapter 3 - Getting Connected The WPA 1000II enables users to link to a host computer using an RS-232, or Bluetooth, WiFi, and GPRS connection for data communication. This chapter provides an overview of WPA 1000II communication options. -
Page 19: Windows Mobile Device Center (Vista And Windows 7 Only)
WiFi Connection The WPA 1000II comes with built-in RF capability. A wireless network can be added either when the network is detected or by manually entering settings information. Before following these instructions, make sure if authentication information is need 3.2.1 Using the Summit Utilities... - Page 20 WPA 1000II User Manual Admin Login Tap Start → Setting → System → Wi-Fi. The Summ it Client Utility window appears. To login as an administrator, tap Admin Login. Enter the Admin Password. (Default password: SUMMIT)
- Page 21 WPA 1000II User Manual can Available AP Under Profile tab, tap Scan for available AP. You may select a desired AP to create a new profile. Tap Configure. Tap Yes to create the new profile. Enter the WEP key or network key. Tap OK.
- Page 22 WPA 1000II User Manual Commit and Activate Tap Commit to activate the setting. Under Main tab, select the profile you want to activate. Under Status tab, you can see the IP address, signal strength and quality. Tap OK to exit the Summit Client Utility.
-
Page 23: Chapter 4 - Barcode Scanner Programs
WPA 1000II User Manual Chapter 4 - Barcode Scanner Programs The WPA 1000II provides an option for the barcode scanner, allowing you to scan and decode various types of 1D/2D barcodes. 4.1 Scanner Setting The user can change the default barcode symbology using the Scanner Control Panel. -
Page 24: Barcode Symbologies
WPA 1000II User Manual 4.3 Barcode Symbologies Char Check Transmit Barcode Enable / / Digit Check Others Symbology Disable verification Char/digit Australian Send bar width data Post British Post YES Canadian Post Codabar Transmit start & stop char, *data length... -
Page 25: Barcode Symbologies 2D
WPA 1000II User Manual Char Check Transmit Barcode Enable / / Digit Check Others Symbology Disable verification Char/digit (Databar) UPC A 2 digit addenda, 5 digit addenda, Addenda required, Include addenda separator, Send number system UPC E 2 digit addenda, 5 digit addenda,... -
Page 26: Chapter 5 - Advanced Settings
WPA 1000II User Manual Chapter 5 - Advanced Settings 5.1 Performing a Hardware Reset You may have to perform a reset if the device freezes (i.e., the device no longer responds to the buttons or tapping on the screen). A soft reset allows your device to get a fresh start, similar to rebooting a computer. - Page 27 WPA 1000II User Manual Method 1: From Windows Mobile Tap Start → BootMode. The BootMode Screen appears. Tap Cold Boot. The system is reset and you will lose all data including all files in the RAM memory. Method 2: From Hardware Remove the battery compartment cover and the main battery.
-
Page 28: Appendix I - System Specifications
WPA 1000II User Manual Appendix I - System Specifications CPU: Marvell PXA320 Processor, 806MHz Mobile DDR RAM: 256MB System NAND Flash RAM: 512MB OS: Windows Embedded Handheld 6.5 Classic Transflective color 3.5” QVGA with backlight 240×320 Display touch panel LCD... - Page 29 WPA 1000II User Manual Operating Temperature: 14°F to 122°F (-10°C to 50°C) Storage Temperature: -4°F to 140°F (-20°C to 60°C) Charging Temperature: 32°F to 104°F (0°C to 40° C) Environmental Relative Humidity: 5% ~ 95% (non-condensing) Drop Test to Concrete: 3 feet ( 90 cm) on 6 faces/4 corners to...
