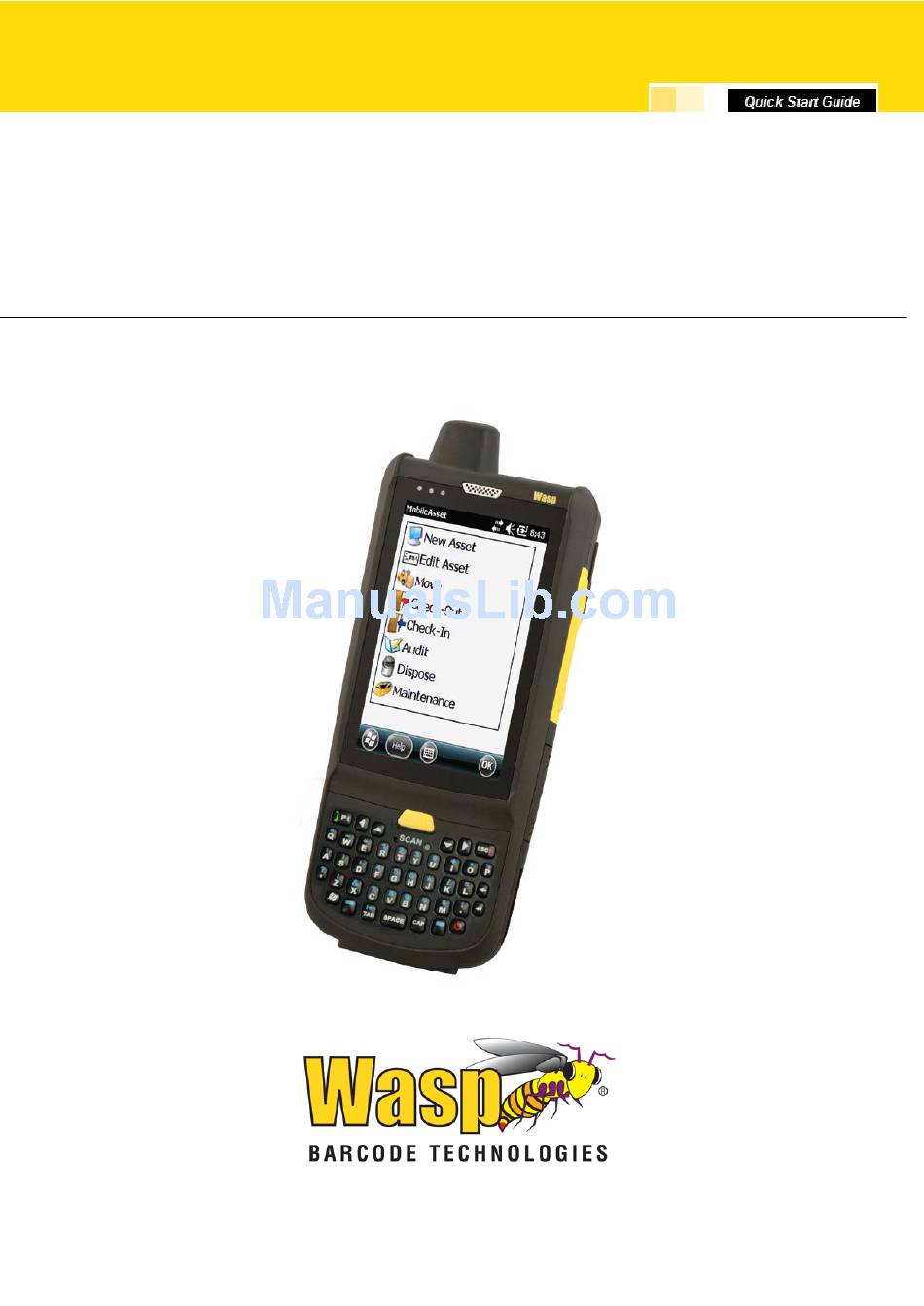

- Page 1 Wasp HC1...
-
Page 3: Table Of Contents
Wasp HC1 Quick Start Guide This Quick Start Guide takes you through the basic steps to get your Wasp HC1 up and running. For detailed instructions on the any of the topics covered in this Quick Start Guide, and for information on scanning setup barcodes, changing symbologies, power-saving options, scan modes, etc., please... -
Page 4: Product Introduction And Accessory Kit
Wasp HC1 QuickStart Guide Product Introduction and Accessory Kit HC1 Terminal Manual CD Stylus Battery Elastic Stylus String Hand Strap Power Adaptor Plugs Updated 4/12/2012... -
Page 5: Front And Right View
Wasp HC1 Quick Start Guide Front and Right View LED indicators Power button LCD touch screen Universal connector 3A Microphone Scanner trigger button 3B Reset button 10 Mute / vibration button Receiver 11 Camera button Scan button 12 Memory card slot Keypad Rev. -
Page 6: Rear And Left View
12 Volume up/down Stylus Turning on the HC1 for the First Time After you have initially charged your device for about 16 hours, the device is ready to be used. You can now start up your device. You can then calibrate the display, learn some basic stylus usage, and set up the system time zone, date and time. -
Page 7: Installing The Battery
Wasp HC1 Quick Start Guide Turn ON your device by pressing the power button on the front panel. Installing the Battery Open the battery compartment cover by sliding the tabs on both sides in the direction of the arrows shown and lift the cover up. -
Page 8: Charging The Battery
Wasp HC1 QuickStart Guide Charging the Battery CAUTION: Turn ON the backup battery switch before charging the battery. Data you entered may not be properly stored until the built-in backup battery has been adequately charged. Press and hold the release button on both sides of the USB charging cable and connect it to the HC1 (1). -
Page 9: Using The Sim Card
Wasp HC1 Quick Start Guide Using the SIM Card The HC1 has a slot for a GPRS SIM card inside the battery compartment. CAUTION: Before installing the SIM card, please backup your data to prevent data loss because of a low backup battery. -
Page 10: Keypads And Function Buttons
Up cursor key Down cursor key When the HC1 turns on, the numeric mode is on by default. When you toggle to alpha mode, the CAPS mode is off by default. Use the Alpha key to toggle to CAPS. Rev. 4/12/2012... -
Page 11: Using Function Keys
Wasp HC1 Quick Start Guide Using Function Keys For Qwerty Keypad Description Description Keypad backlight toggling Screen backlight toggling Decrease screen backlight Increase screen backlight brightness brightness Softkey 2 Softkey 1 END TALK TALK Scanner setting Task manager execution Device information... - Page 12 Wasp HC1 QuickStart Guide Using Alpha Keys Alpha On Alpha Off CAPS Off CAPS On Space, @, $, “, 0 Space, @, $, “, 0 +, -, \, %, 1 +, -, \, %, 1 a, b, c, 2 A, B, C, 2...
