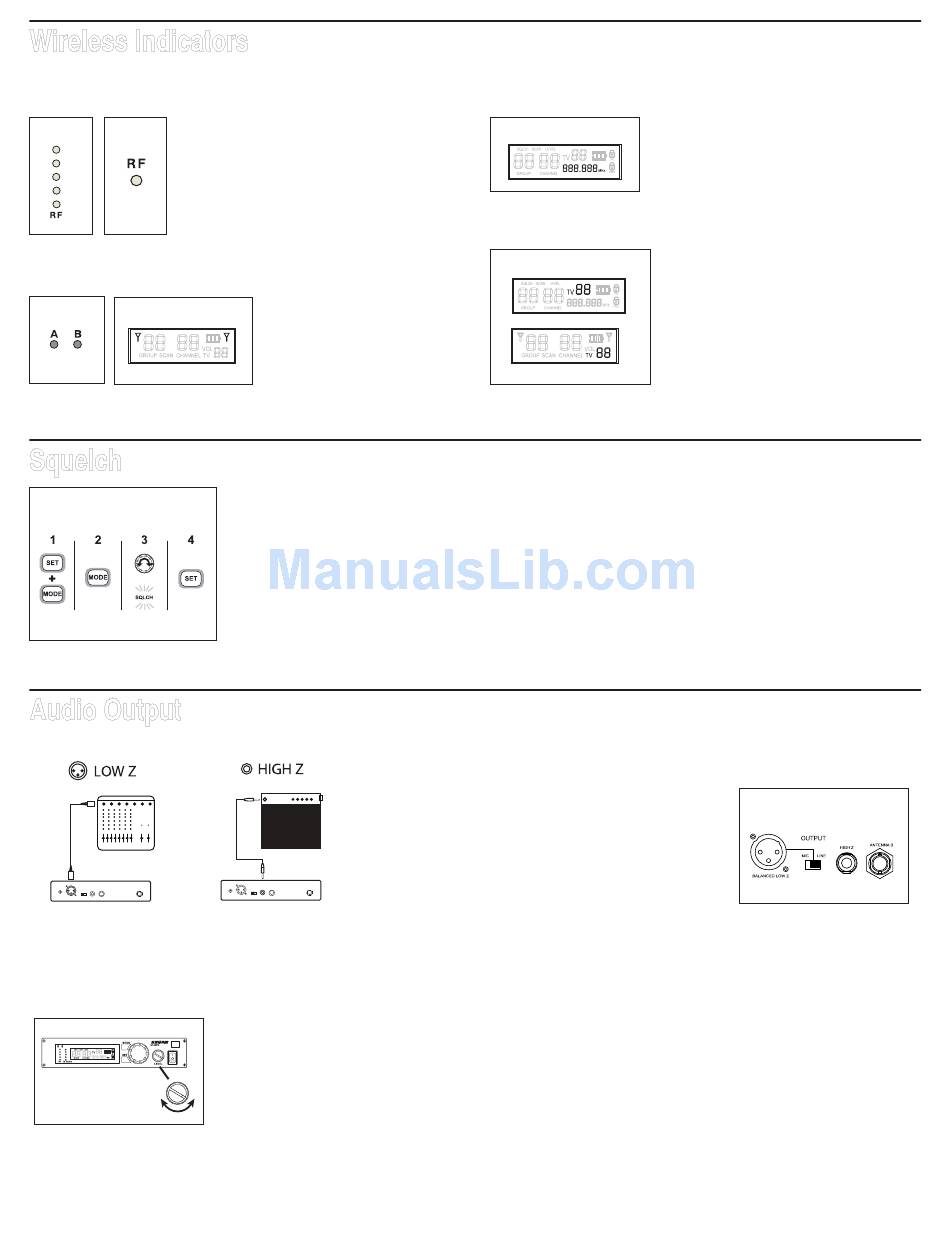

Wireless Indicators
RF Indicator
Indicates wireless activity over the selected
ULXP4 ULXS4
channel.
Note: When the antenna and battery indica-
tors are illuminated, the RF indicator shows
signal strength from the transmitter. Otherwise,
it is showing interference from another source.
Select a different channel.
Antenna Indicator
ULXP4
ULXS4
Squelch
ULXP4

Audio Output

Receiver Output Level
ULXP4
LEVEL
Adjusts the level of the receiver's audio outputs.
6
This indicator shows which an-
tenna is receiving the strongest
signal from the transmitter.
The factory setting offers the optimum performance for most installations.
Increasing squelch filters out all but the highest quality signal, but this decreases operating range. Decreasing squelch
extends the operating range, but can increase signal noise.
Audio Output Connectors
Balanced XLR: Connect to a mixer or other professional
audio input. Use the MIC/LINE switch to adjust for micro-
phone or line-level inputs.
Unbalanced 6.35 mm (1/4"): Connect to high impedance
inputs, such as a guitar amplifier.
NOTE: The LINE/MIC switch does not affect the 6.35 mm
(1/4") jack.
Frequency Display
ULXP4
TV
For models sold in the United States only.
ULXP4, ULXS4
Displays the TV channel occupied by the
selected frequency.
ULXP4, ULXS4
