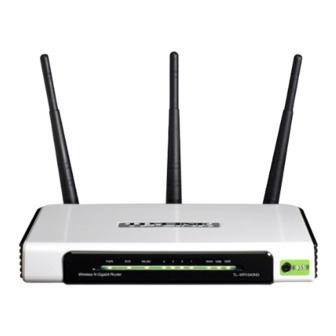

TP-Link TL-WR1043N Fiber Setup Manual
300mbps wireless n gigabit router
Hide thumbs
Also See for TL-WR1043N:
- User manual (114 pages) ,
- User manual (109 pages) ,
- User manual (86 pages)
Related Manuals for TP-Link TL-WR1043N
Summary of Contents for TP-Link TL-WR1043N
- Page 1 TP-Link - TL-WR1043N / TL-WR1043ND 300Mbps Wireless N Gigabit Router – Fiber Setup Guide...
-
Page 2: Table Of Contents
Contents Main Features ............................2 Front Panel ............................3 Back Panel ............................. 4 How to setup your hardware ........................ 5 Quick Installation guide through web interface................... 6 Additional Information and links......................10 Page | 1... -
Page 3: Main Features
1 Main Features Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps. One 10/100/1000M Auto-Negotiation RJ45 WAN port, four 10/100/1000M Auto-Negotiation RJ45 LAN ports, supporting Auto MDI/MDIX. Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security. ... -
Page 4: Front Panel
2 Front Panel Name Status Indication Power is off. Power Power is on. The Router is initializing or maybe has a system error. System Flashing The Router is working properly. The Router has a system error. The Wireless function is disabled. WLAN Flashing The Wireless function is enabled. -
Page 5: Back Panel
3 Back Panel POWER: The Power socket is where you will connect the power adapter. Please use the power adapter provided with this TL-WR1043ND Wireless N Gigabit Router. RESET: There are two ways to reset to the Router's factory defaults: 1. -
Page 6: How To Setup Your Hardware
4 How to setup your hardware Before installing the Router, make sure your PC is connected to the Internet through the broadband service successfully. If there is any problem, please contact your ISP. After that, please install the Router according to the following steps. Don't forget to pull out the power plug and keep your hands dry. 1. -
Page 7: Quick Installation Guide Through Web Interface
5 Quick Installation guide through web interface. Step 1: In order for us to login to the web interface we need to determine the router IP address. Please follow the below steps to determine the router address as it may differ from one device to another. On a Windows environment. - Page 8 Step 2: On the address bar type the default gateway address you found and press enter. Step 3: The Router should prompt you to insert the username and password to login to it, usually the user name and password both would be admin then press login. Step 4: After successful login you will be able to configure the settings inside the router.
- Page 9 Step 5: On this step it just gives you the information. Click on Next to go to the next page. Step 6: On the WAN connection type select the PPPoE and the click on Next. Step 7: Complete this step by entering your internet User name and Password provided by exetel. And then click on Next.
- Page 10 Step 8: On the Wireless settings page you may configure the settings as you like as exetel don’t have any control over them. Here follows the basic setup information that you would find useful. After the completion click on Next. Step 9: You can click on the Finish on this page.
-
Page 11: Additional Information And Links
Please note that this document is a basic setup guide from exetel for their respective customers. For further information on the router configurations you may refer the product manual from the following link. http://www.tp-link.com.au/products/details/?categoryid=238&model=TL-WR1043ND#down or you may contact TP-Link on following numbers. 1300-875-465 or 02-8810-1186 Page | 10...
