TP-Link TL-WR1043ND Quick Installation Manual

Quick Installation Guide

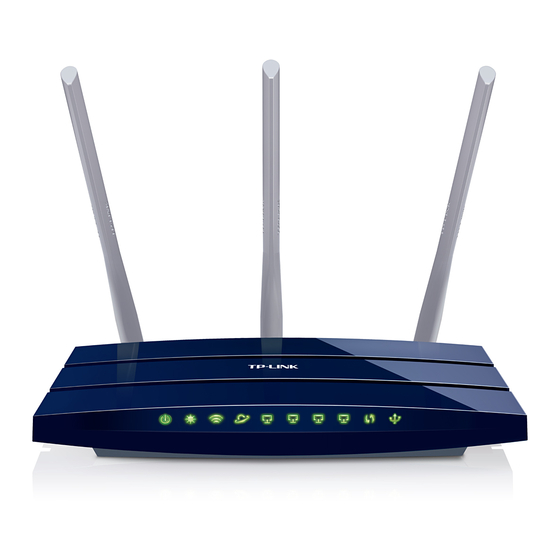

450Mbps Wireless N Gigabit Router
TL-WR1043ND
Connect the Hardware
If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's Internet port, then follow step 5 and 6 to
complete the hardware connection.
Internet Internet
Power adapter
Modem
1
Install the antennas and
position them vertically.
Router
2
Turn o the modem,
and remove the backup
battery if it has one.
3
Connect the modem to
the Internet port on the
router via an Ethernet
cable.
4
Turn on the modem, and
then wait about 2 minutes
for it to restart.
Power adapter
5
Power on the router.
6
Verify that the following LEDs are
on and solid before continuing
with the configuration.
Power Wireless Internet
On On On
Note: If the wireless LED is not on, please
press and hold the wireless button on the rear
panel for about 5 seconds to turn it on.
