Installation
•
Note: The oven cavity must vent through the front only. Avoid gaps between cupboard
sides and the underside of the worktop.
• Insert the oven into the cupboard.
• Open the door to expose the fixing holes in the side trims.
• Secure the oven by 4 countersunk screws (fasteners are not supplied ).
• The hob should be installed in a ventilated cupboard fitted with a sturdy worktop.
•
Secure the hob using the fixing brackets provided.

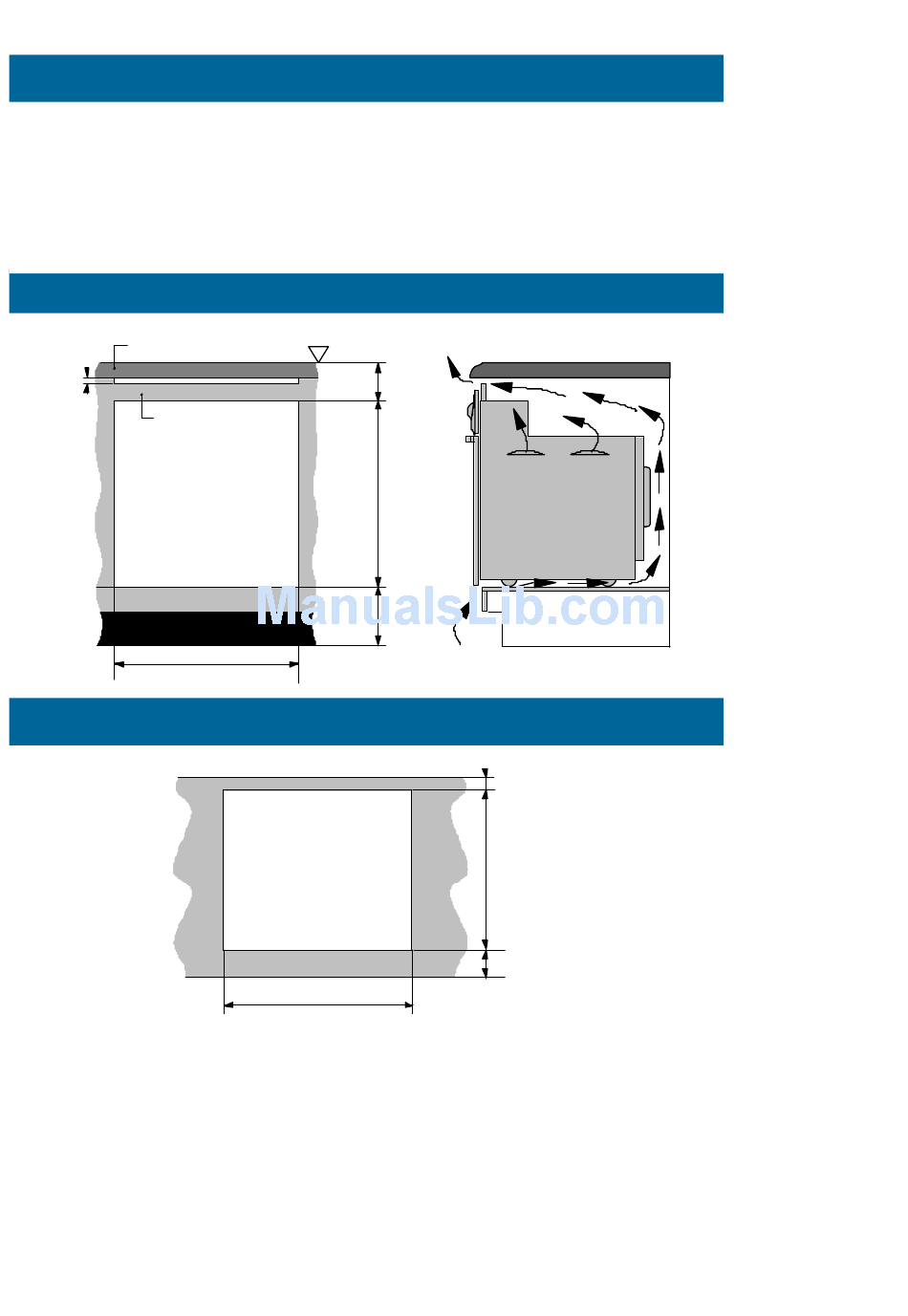

Under-counter installation
Worktop
32mm - 48mm thick
6
Vent
Top filler piece
gap
at
front
only
Aperture
590 H x 565 W x 570 D
565

Hob installation

3
900
Datum
+ _ 3
Aperture
0
Worktop front
+ _ 3
560
0
+ _ 3
100
0
+ _ 3
590
0
Aperture
Typical section showing
(210)
ventilation requirements
Floor
( 35 )
+ _ 3
485
0
+ _ 3
80
0
