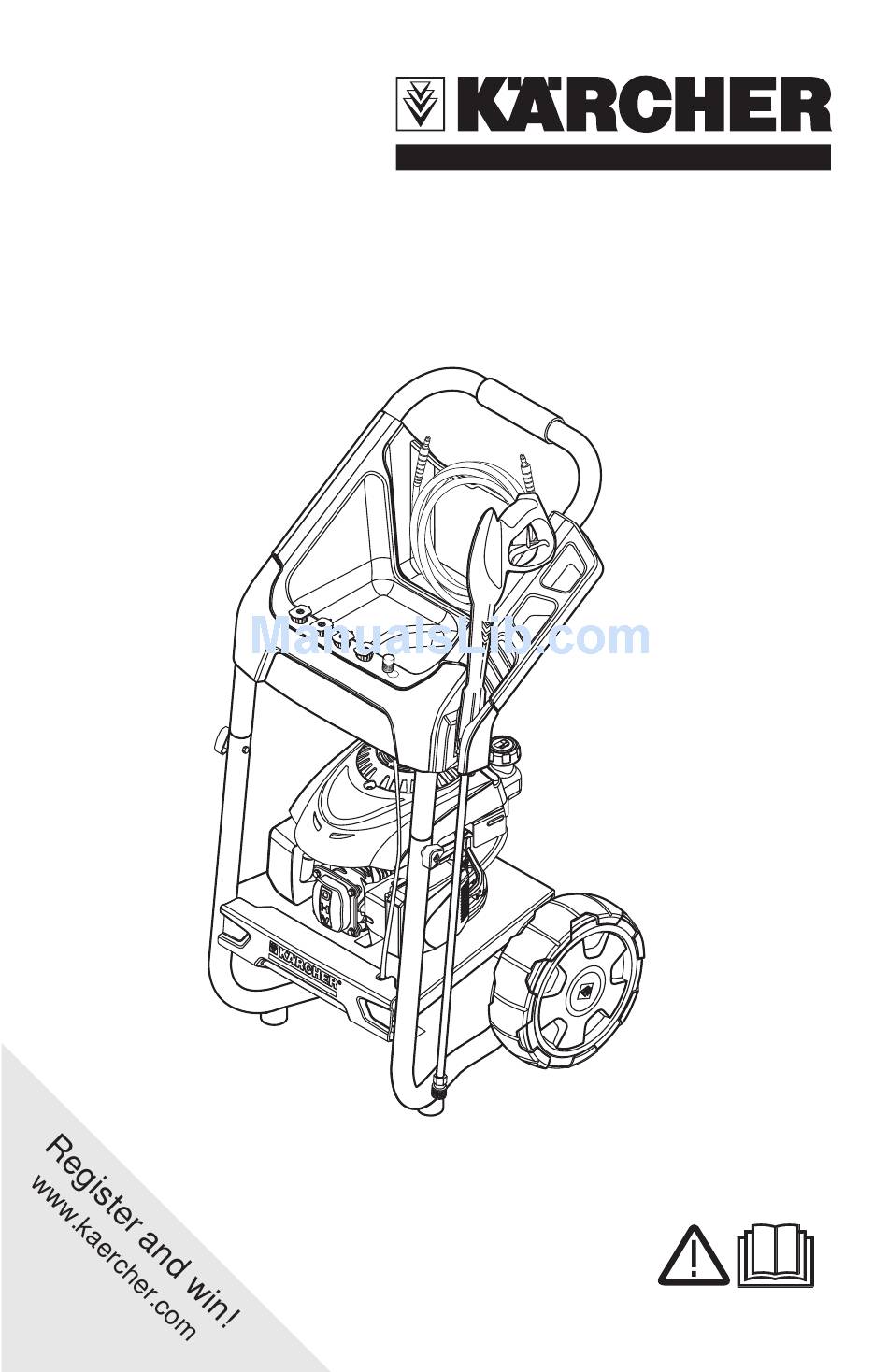

- Page 1 ® Manual not for use G 2500 DCE in USA and Canada! 8.752-796.0 05/12...
-
Page 2: Table Of Contents
Troubleshooting dispose your old appliances using appropriate collection systems. Notes about the ingredients (REACH) Specifi cations You will fi nd current information about the ingre- G 2500 DCE AUS dients at: Operating Pressure 2500 PSI http://www.karcher.de/de/unternehmen/ Water Volume 9.1 L/Min umweltschutz/REACH.htm... -
Page 3: Symbols On The Machine
Call: 1 800 675 714 for help or visit our website: and warnings before using this pressure washer. www.karcher.com.au Warning information should be emphasized and Please take a moment to register your pressure understood. If the operator is not fl uent in English, washer online at: the manufacturer’s instructions and warnings shall... -
Page 4: Model Overview
MODEL OVERVIEW Handle Water Inlet With Garden Hose Connector Trigger Gun Quick Connect High Pressure Outlet Trigger Gun Safety Lock 10. Detergent Suction Tube With Filter High Pressure Hose 11. Dipstick Gas Tank 12. Quick Connect Nozzles Spray Wand 13. Garden Hose Adapter For Engine Details See Engine Manual Nozzle Holder 4 English... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS ■ ■ Read the operating instructions of the engine Do not use acids, solvents, or any fl ammable manufacturer before start-up and follow the or alkaline material in this product. These safety instructions carefully. products can cause physical injuries to the operator and irreversible damage to the ma- WARNING chine. -
Page 6: Assembly Instructions
WATER SUPPLY (Cold Water Only) ■ CAUTION Flow rate of water supply must not fall below 9.5 L/Min. When connecting to water supply ■ mains, local regulations of your Flow rate can be determined by running the municipal water company must water for one minute into an empty 19 L con- be observed. - Page 7 Hardware (included) Description Purpose Illustration High Pressure Spray Gun Assembly Hose Spray Gun Spray Gun Assembly Quick Nozzle Kit Assembly Connect Nozzle Kit (4 pc.) Wand Wand Assembly Assembling STEP 1: STEP 3: Attach the handle to the frame of the pres- Snap the nozzle holder (E) on to pressure sure washer.
-
Page 8: Operating Instructions
Assembling STEP 5: STEP 6: Attach the wand to the spray gun. Vertically insert the Spray Gun (G) into the Gun Holder (D). Push the wand (I) into the trigger gun (G) and then thread the connection until tight. OPERATING INSTRUCTIONS STEP 1: STEP 2: Pull the spring-loaded collar of the wand... - Page 9 OPERATING INSTRUCTIONS CAUTION CAUTION Engine shipped without oil. Before starting High pressure in quick connect area. engine, fi ll with oil. Do not over-fi ll. Do not run Risk of injury caused by improperly locked the engine with a high or low oil level as this high pressure hose.
-
Page 10: Using The Accessories
OPERATING INSTRUCTIONS STEP 11: After the engine warms up enough to run smoothly, move choke rod to OFF position. Pull the starter handle. If the engine fails to start after 3 pulls, squeeze the trigger gun to release pressure, and repeat step. For engine details see engine manual. -
Page 11: Taking A Break
These chemicals will harm the unit and will damage Kärcher Detergents, check your retailer or visit the surface being cleaned. our website: Use of these items will void the warranty. www.karcher.com.au www.karcher.co.nz TAKING A BREAK ...fi ve minutes or more STEP 2: STEP 1: Release trigger and engage safety lock. -
Page 12: Long Term Storage
Kärcher-Authorised Service Centre for repair. (You can locate a service centre in your area online at: www.karcher.com.au & www.karcher.co.nz). CLEANING TIPS Deck Cleaning House Siding (with or without detergent). -
Page 13: Optional Accessories
Please check our website: Barbecue Grills, Outdoor Power www.karcher.com.au & www.karcher.co.nz for Equipment & Gardening Tools up-to-date information. (with or without detergent). Pre-rinse cleaning –... -
Page 14: Troubleshooting
TROUBLESHOOTING CAUTION Remove the spark plug cable to prevent accidental ignition of the engine before making any repair. Symptom Cause Solution ENGINE WILL NOT No gasoline Fill gas tank START Choke is not in the correct Slide choke lever out to closed position position Water pressure built up in Squeeze the trigger to release the pressure... - Page 15 Spray wand not properly Turn the swivel nut of the gun clockwise until connection is tight LEAKS attached Broken o-ring or plastic Visit www.karcher-help.com or locate a service centre at www.karcher.com.au insert or www.karcher.co.nz PUMP IS NOISY Not enough gas or engine Check that hoses and fi...
