Summary of Contents for Kärcher G 2500 DCE

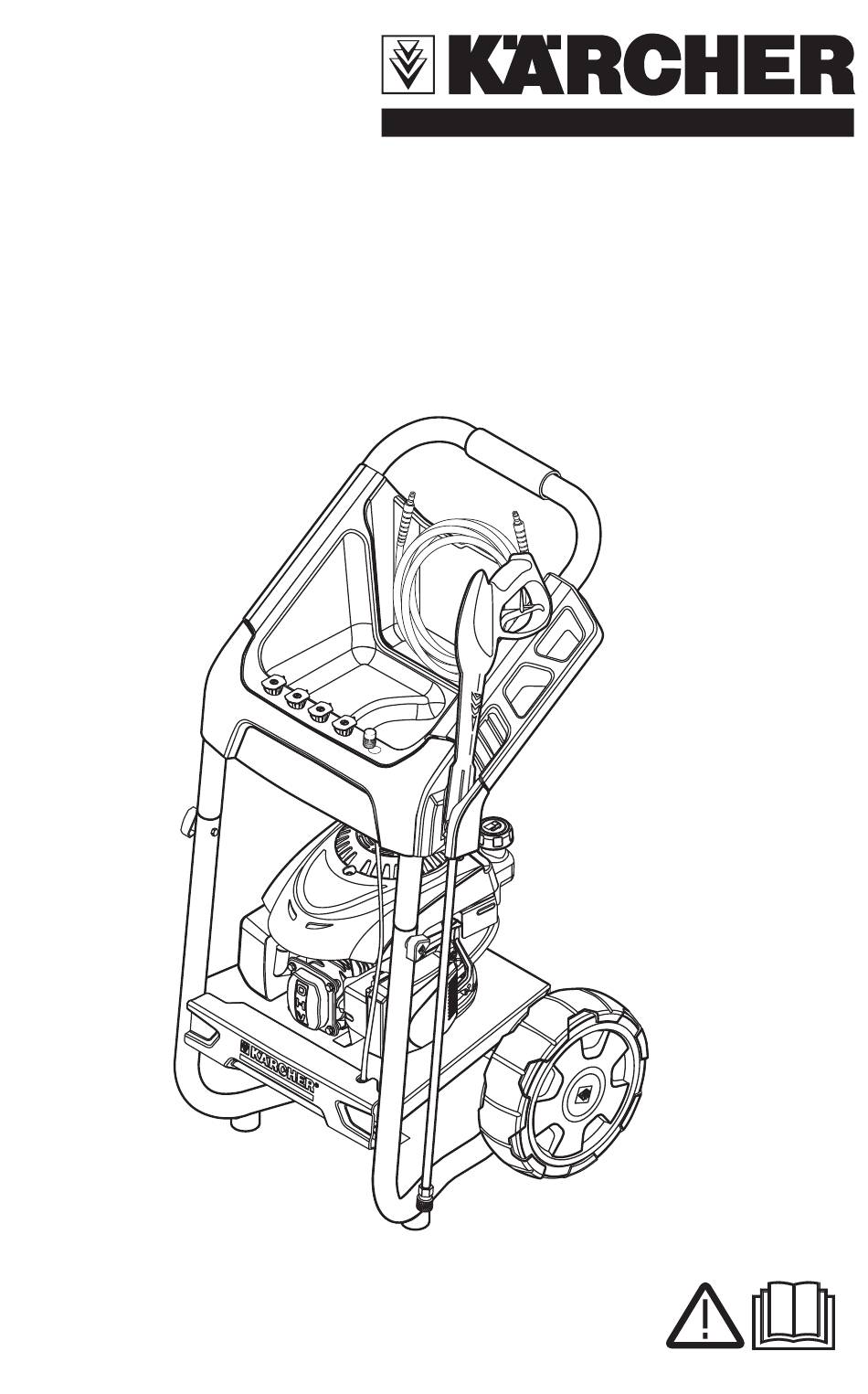

- Page 1 ® G 2500 DCE G 2700 DCE English Español Français 8.751-991.0 04/12...
- Page 2 Troubleshooting Specifi cations Owner/User Responsibility The owner and/or user must have an understand- G 2500 DCE ing of the manufacturer’s operating instructions Operating Pressure 2500 PSI and warnings before using this pressure washer. Warning information should be emphasized and Water Volume 2.4 GPM...
-
Page 3: Model Overview
MODEL OVERVIEW Handle Water Inlet With Garden Hose Connector Trigger Gun Quick Connect High Pressure Outlet Trigger Gun Safety Lock 10. Detergent Suction Tube With Filter High Pressure Hose 11. Dipstick Gas Tank 12. Quick Connect Nozzles Spray Wand For Engine Details See Engine Manual Nozzle Holder English 3... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS ■ ■ Read the operating instructions of the engine Do not use acids, solvents, or any alkaline manufacturer before start-up and follow the or fl ammable material in this product. These safety instructions carefully. products can cause physical injuries to the operator and irreversible damage to the ma- WARNING chine. - Page 5 WATER SUPPLY (Cold Water Only) ■ Flow rate of water supply must not fall below CAUTION 2.5 GPM (gallons per minute) When connecting to water supply mains, local ■ Flow rate can be determined by running the regulations of your municipal water company water for one minute into an empty 5-gallon must be observed.
- Page 6 Hardware (included) Description Purpose Illustration High Pressure Spray Gun Assembly Hose Spray Gun Spray Gun Assembly Quick Nozzle Kit Assembly Connect Nozzle Kit (4 pc.) Wand Wand Assembly Assembling Scan QR Code with smartphone for detailed instructions STEP 1: STEP 3: Attach the handle to the frame of the pres- Snap the nozzle holder (E) on to pressure sure washer.
- Page 7 Assembling STEP 5: STEP 6: Attach the wand to the spray gun. Vertically insert the Spray Gun (G) into the Gun Holder (D). Push the wand (I) into the trigger gun (G) and then thread the connection until tight. OPERATING INSTRUCTIONS STEP 1: STEP 2: Pull the spring-loaded collar of the wand...
- Page 8 OPERATING INSTRUCTIONS CAUTION CAUTION Engine Shipped without oil. Before starting High pressure in quick connect area. engine, fi ll with oil. Do not over-fi ll. Do not run Risk of injury caused by improperly locked the engine with a high or low oil level as this high pressure hose.
-
Page 9: Using The Accessories
OPERATING INSTRUCTIONS STEP 11: After the engine warms up enough to run smoothly, move choke rod to OFF position. Pull the starter handle. If the engine fails to start after 3 pulls, squeeze the trigger gun to release pressure, and repeat step. For engine details see engine manual. -
Page 10: Shutting Down & Clean-Up
WORKING WITH DETERGENTS STEP 3: STEP 4: With the engine running, pull trigger to operate Always draw fresh water through the deter- unit. gent suction tube when the cleaning job is done, to rinse/fl ush any remaining detergents Liquid detergent is drawn into the unit and from the injection system. -
Page 11: Winterizing And Long-Term Storage
WINTERIZING AND LONG-TERM STORAGE 1: Disconnect all water connections. CAUTION 2: Turn on the machine for a few seconds, until Failure to follow the above directions will the water which had remained in the pump result in damage to the pump assembly and exits, turn off immediately. - Page 12 Cement Patios, Brick and Stone Patio & Lawn Furniture (with or without detergent). Pre-rinse furniture (with or without detergent). Pre-rinse cleaning and surrounding area with fresh water. If using surface with fresh water. If using Kärcher Pres- Pressure Wash, apply to surface at low pressure. sure Wash or Degreaser, apply to surface at low Allow Pressure Wash to remain on surface 1-3 pressure.
-
Page 13: Troubleshooting
TROUBLESHOOTING CAUTION Remove the spark plug cable to prevent accidental ignition of the engine before making any repair Symptom Cause Solution ENGINE WILL NOT No gasoline Fill gas tank START Choke is not in the correct Slide choke lever out to closed position position Water pressure built up in Squeeze the trigger to release the pressure... - Page 14 Symptom Cause Solution NO DETERGENT Detergent suction tube not Check connection properly connected to the machine Detergent is too thick Dilute detergent, for best results use Kärcher detergent Filter on detergent suction Run warm water through fi lter to remove debris tube is clogged Damaged or clogged deter-...
