Summary of Contents for N-Com B1

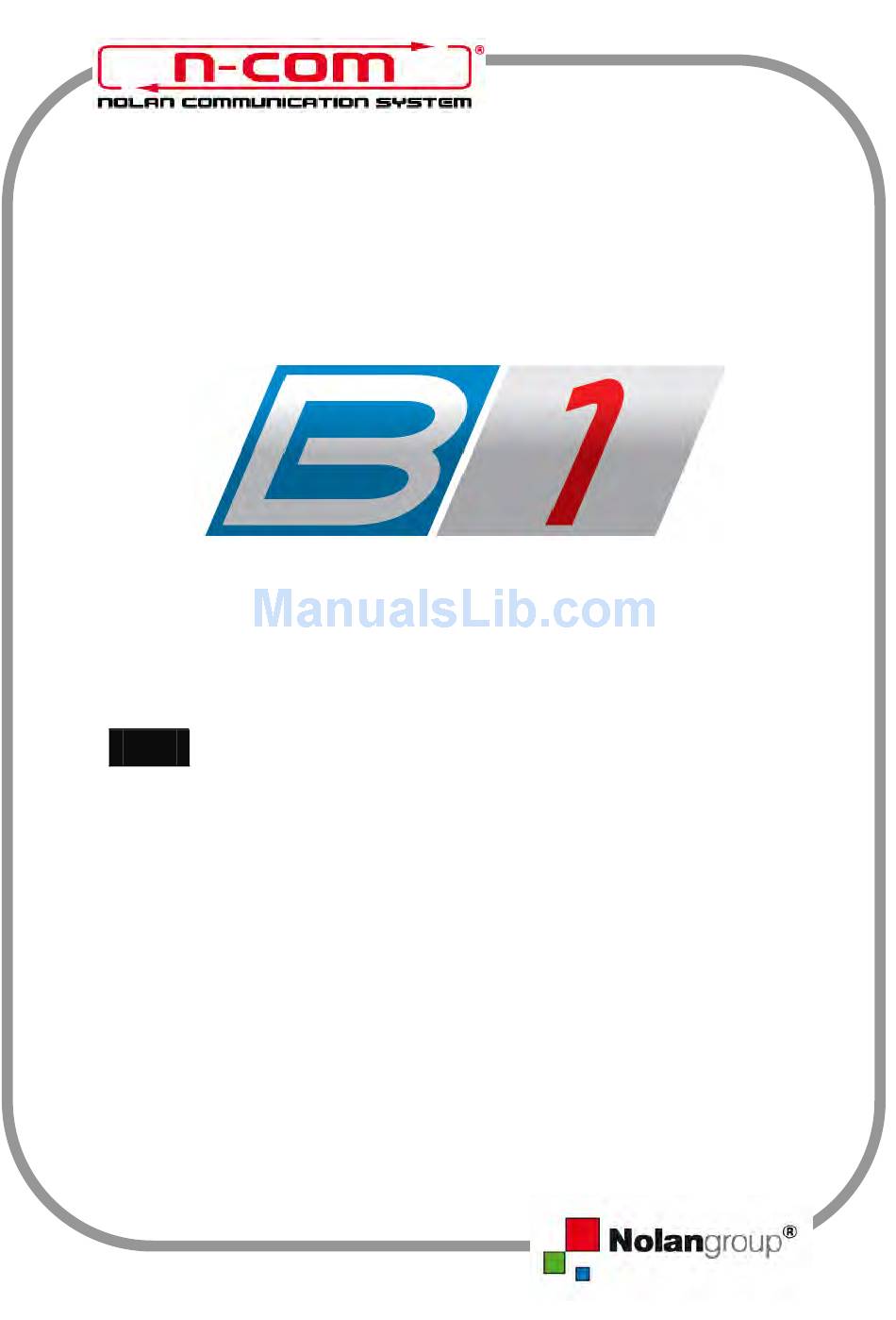

- Page 1 Firmware Version: 1.xx USER INSTRUCTIONS AND SAFETY...
- Page 2 For additional information about B1, and to download high- definition instructions as well as the latest Firmware version, visit the website www.n-com.it REFERENCE STANDARDS The products of the N-Com line are in compliance with standards as per the table below: Bluetooth system...
-
Page 3: Table Of Contents
3.3.Installing the system on the helmet ........11 REMOVING THE SYSTEM............. 14 SYSTEM CHARACTERISTICS ..........14 5.1.Basic functions ..............15 5.2.N-Com Wizard ..............15 PAIRING UP BLUETOOTH DEVICES ........15 6.1.Affiliation reset function ............16 MOBILE PHONE FUNCTIONS..........16 GPS SATELLITE NAVIGATOR FUNCTIONS......16 BLUETOOTH A2DP MUSIC PLAYER ........ -
Page 4: Warnings And Safety
Read this User Manual carefully, as well as the User Manuals for other N-Com kits that you will be using with the N-Com B1. Read the simple rules listed below. Failure to comply with these rules may lead to dangerous situations. -
Page 5: Qualified Personnel
Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it before you use the system on the road. Caution: Adjusting the volume to very high levels may cause damage to your hearing. -
Page 6: Disposal
1.7. Disposal Refer to this user manual and to manuals related to other parts of the N-Com system in order to disassemble the system from the helmet. Once the system has been disassembled, dispose of it according to the following instructions: The presence of a crossed-out wheelie bin indicates that in the European ... -
Page 7: Installation
(Fig. Temporarily put the padding on the outside of the helmet (Fig. 5). Remove the N-Com cover from the helmet border gasket. Push from the inside of the helmet to facilitate the removal (Fig. - Page 8 ONLY FOR FULL-FACE HELMETS Remove the chin guard by pulling on the special red tab. Fig. 7 Remove the right and left polystyrene cheek pads by gently pulling them out of the helmet. The helmet shell can be opened slightly facilitate...
-
Page 9: Installing The Microphone
3.1. Installing the microphone JET HELMETS OR FLIP-UP HELMETS Fig. 9 Fig. 10 Prepare microphone inserting microphone clamp, being careful to position it properly (Fig. 9) Note: the flat part of the clamp must be facing upward when the microphone is positioned as shown in figure 11. -
Page 10: Connecting The Battery
3.2. Connecting the battery Only for Jet helmets or flip-up helmets: Fig. 15 Fig. 16 Hook up the battery cable (Red+Black) to the connector located on the wiring system (Fig. 15). Insert the battery in its holder, first positioning the side equipped with the cables ... -
Page 11: Installing The System On The Helmet
3.3. Installing the system on the helmet Fig. 20 Position the system inside the helmet as shown in figure 20, next to the N-Com housing in the shell. Looking at the helmet from the outside, slide rear positioning into groove A as shown in the figure;... - Page 12 Fig. 24 Fig. 23 Insert the microphone connector in the micro USB electronic plate. Before you place the speaker in its housing, apply the Velcro pad to the polystyrene cheek pad (Fig. 24). Position the loudspeaker in the special housing obtained in the polystyrene cheek pad (Fig.
- Page 13 Only for Jet helmets or flip-up helmets Secure the battery-holder support to the right side of the helmet, lining up the holes with the pins on the shell (Fig. 27) Fig. 27 Before you place the speaker in its housing, apply the Velcro pad to the polystyrene ...
-
Page 14: Removing The System

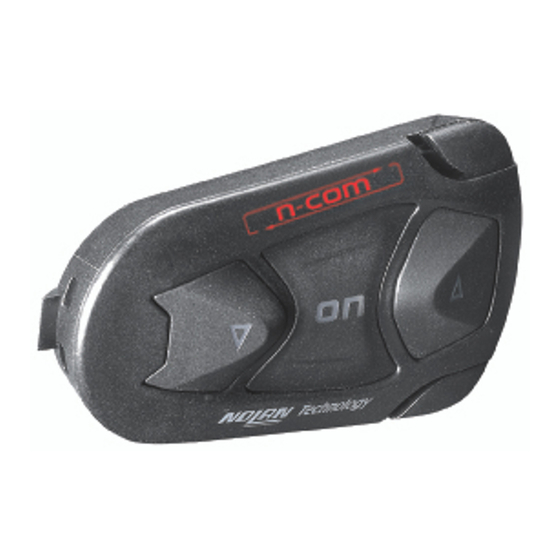

Now remove the entire system from the helmet. 5. SYSTEM CHARACTERISTICS N-Com B1 allows wireless connection to a mobile phone, a satellite navigator, and an MP3 A2DP player using Bluetooth technology. The system can also be used for wireless intercom communication between two helmets, if both helmets are equipped with a N-Com Bluetooth system. -
Page 15: Basic Functions
Select the N-Com device. If a password is requested, enter 0000 (four zeros); B1 will confirm the pairing up by means of a tone in the headset, and the LEDs will stop flashing; Turn off and on both the device and the B1 to store the pairing up data. -
Page 16: Affiliation Reset Function
B1 allows a conference call with Rider and Pillion Passenger. When a call comes in on a mobile phone connected via Bluetooth to B1, the Rider-Pillion Passenger intercom is temporarily turned off. However, if you wish to share the phone call with the other helmet, simply turn on the intercom manually during the phone call (by briefly pressing “on”). -
Page 17: Bluetooth A2Dp Music Player
"Conference" setting is stored for future GPS communications. 9. BLUETOOTH A2DP MUSIC PLAYER You can listen to high quality music by connecting B1 to a device equipped with Bluetooth A2DP (Advanced Audio Distribution Profile) protocol. The B1 system is also equipped with Bluetooth AVRCP (Audio Video Remote Control Profile) protocol, which allows you to stop and resume music reproduction directly from the helmet (with devices equipped with AVRCP). -
Page 18: Rider-Passenger Intercom Mode
11. RIDER-PASSENGER INTERCOM MODE In order to use B1 in wireless intercom mode, both helmets have to be equipped with a N- Com Bluetooth system. In order for two N-Com systems to communicate with one another, they have to be paired up first. -
Page 19: Battery
12.2. Recharging the system To recharge the B1 system, connect the USB cable to a battery charger or to a powered USB port. Charging occurs as follows: When you connect the B1 system to the battery charger, the blue LED begins to flash. -
Page 20: Summary Table Of Controls
Play music (Play) (2s) Pause Function (Pause) (2s) Next track (Forward) (4s) Pairing up mode system turned off (4s) Rider-Passenger intercom pair up Erase pair ups** (4s) *Briefly press at the same time. **With N-Com system in Pairing up Mode. -
Page 21: Limited Warranty
Negligence and normal wear of internal and external parts. Any damage caused by an accident; Any change or modification made to the helmet or to the N-com system by the user or by third parties. Color changes or damages caused by exposure to harmful chemical products. -
Page 22: Procedure For The Forwarding Of Claims
Legislative Decree 2 February 2002 n. 24. 14.5. Product identification N-Com products are identified by means of a code that allows product traceability and identification. The identification code is found underneath the bar code printed on the product packaging. -
Page 23: Warranty Registration Form
15. WARRANTY REGISTRATION FORM Product name: Identification code Buyer’s Information Name Last name Address Phone e-mail Dealer’s stamp Date of purchase... - Page 24 B1 - 23/11/2012 10:57:00 Printed on recycled paper...
