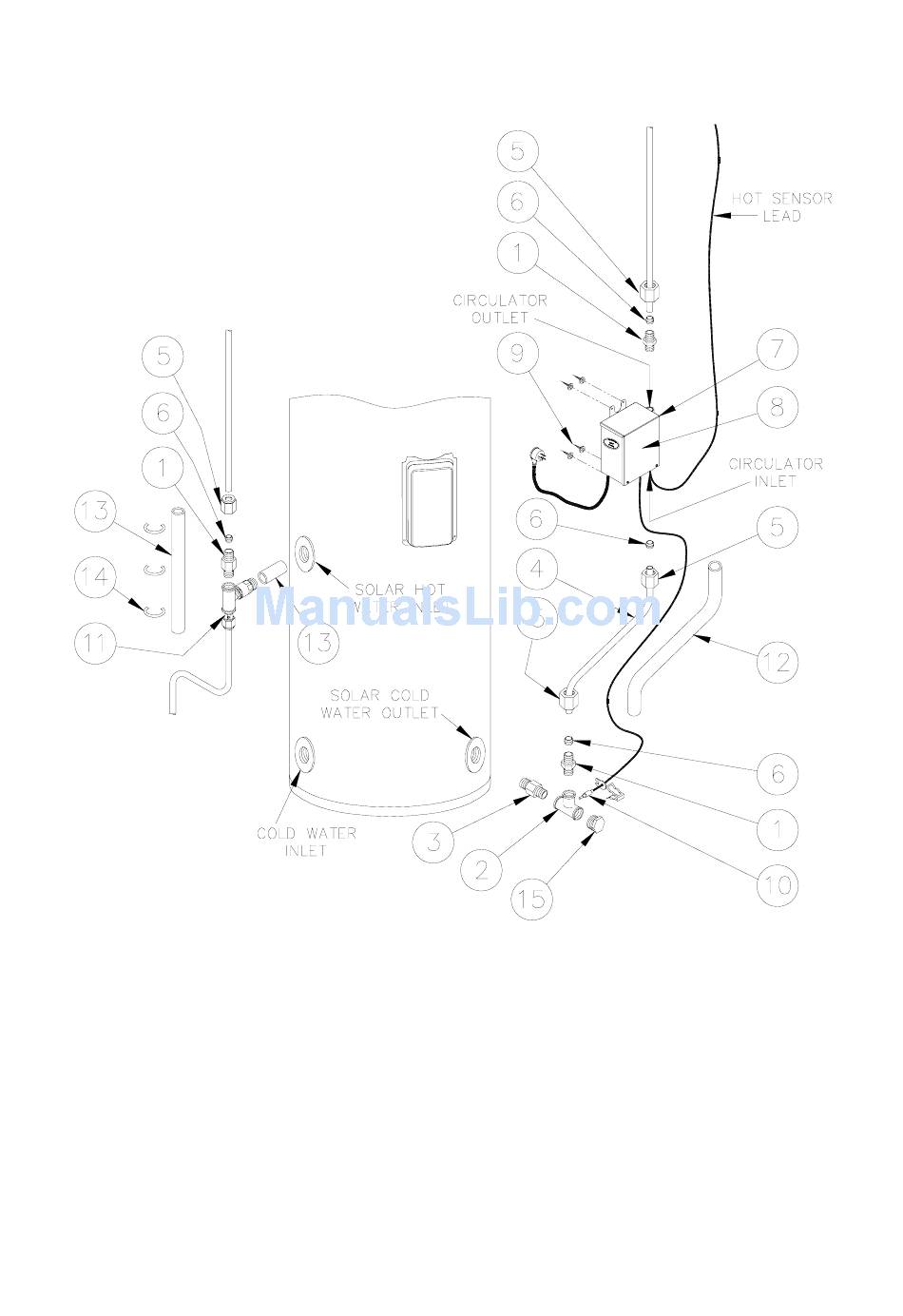

INSTALLATION – SOLAR CONTROL UNIT
SUPPLIED IN SOLAR CONTROL UNIT KIT (299121)
1.
Hex nipple ½" X ½"
2.
4 way tee
3.
Hex nipple ½" x ¾"
4.
Preformed pipe DN15
5.
Compression nut
6.
Olive
7.
Circulator
8.
Solar control unit
9.
Screws
10. Cold sensor probe
11. Air bleed valve and non return valve
assembly
12. Insulation 280 mm long x 12 mm diam
13. Insulation 150 mm long x 35 mm diam &
50 mm long x 35 mm diam
14. Cable tie
15. Plug ½"
5
