Installation Instructions

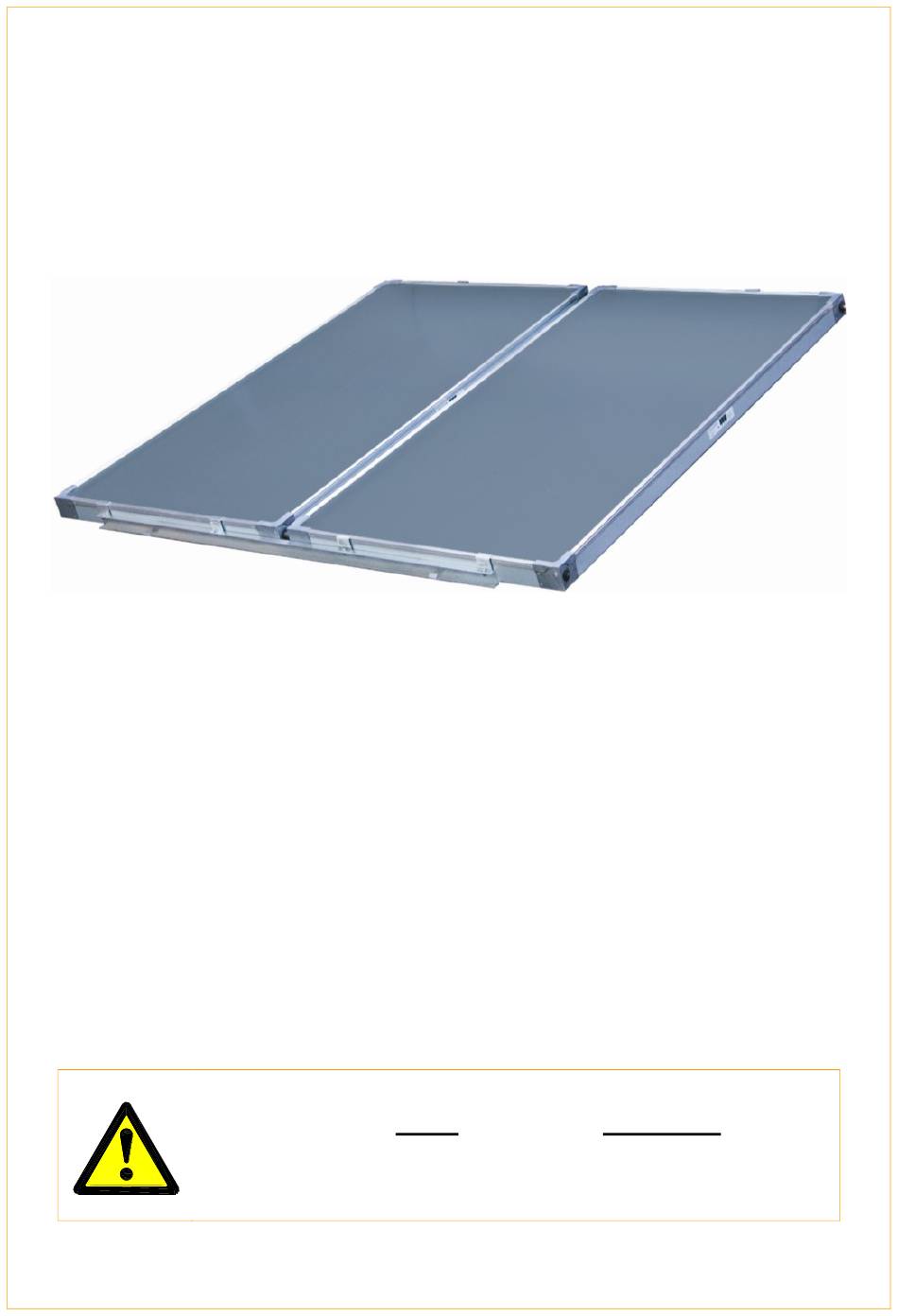

Collector Kits
Collectors with Copper Waterways, Conetite Connections
for use in Direct Systems
using uncoated DR Brass Conetite fittings
HBT200, LCS, S
SOLAR COLLECTORS
WARNING: Plumber – Be Aware
Use copper pipe ONLY. Plastic pipe MUST NOT be used.
It is a requirement of a solar water heater installation that all
pipe work be in copper and not plastic, due to the effects of
high water temperatures.
This collector kit must be installed and serviced by a qualified person.
Please leave this guide with the householder.
