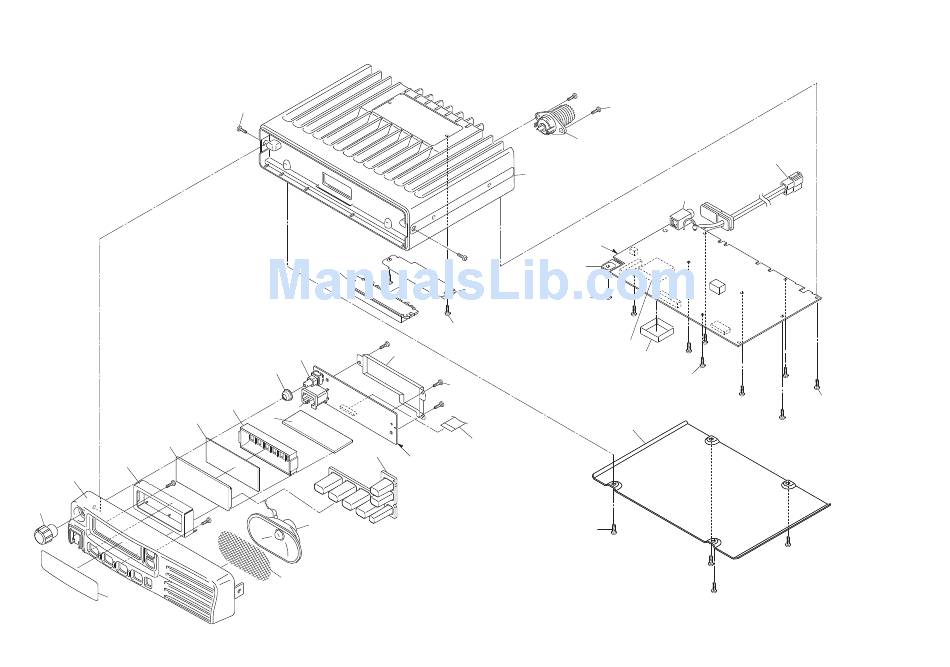

Icom ic-f5021 Service Manual page 29

MP10 (F)
DS11 (F)
MP8 (F)
MP1 (F)
MP6 (F)
MP2 (F)
MP8 (C) x2
IC3 (MA)
MP3 (F)
R14 (F)
MP12 (F)
MP9 (F)
J1 (F)
EP2 (F)
MP5 (F)
SP1 (F)
MP11 (F)
J1 (C)
MP1 (C)
MAIN UNIT
IC8 (MA)
MP3 (MA)
MP6 (C)
MP5 (C) x2
MP13 (F) x3
W1 (F)
FRONT UNIT
MP7 (C) x4
Unit abbreviations (F): FRONT UNIT
(MA): MAIN-A UNIT
(C): CHASSIS PARTS
MP4 (C) x2
W2 (MA)
J4 (MA)
MP1 (MA)
MP2 (MA)
MP3 (C)
MP2 (C)
8 - 2
MP3 (C) x8
