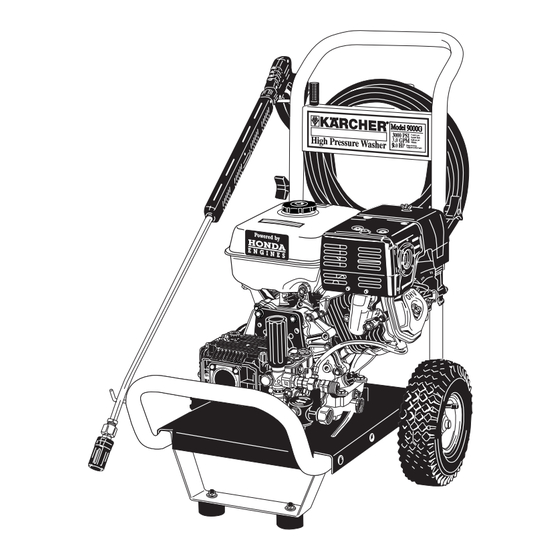

Model K 9000 G
High Pressure Washer Operator Manual
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . .3
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . .4-5
Using the Accessories . . . . . . . . . . . . . . . . . . . . . . . .5
Working with Detergents . . . . . . . . . . . . . . . . . . . . . . .6
Shut Down and Clean-Up . . . . . . . . . . . . . . . . . . . . . .7
Taking a Break . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Winterizing and Long-Term Storage . . . . . . . . . . . . . .7
Cleaning Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Optional Cleaning Accessories . . . . . . . . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
Specifications
Operating pressure
Water volume
Engine
3000 PSI
3.0 GPM
9.0 HP Honda
Part No. 1.187-105.0
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Kärcher K9000G
Summary of Contents for Kärcher K9000G
-
Page 1: Table Of Contents
Model K 9000 G High Pressure Washer Operator Manual Overview ........1 Precautions . -
Page 2: Overview
MODEL K 9000 G OVERVIEW Item Description 1. Front Guard 2. Water inlet 3. High pressure outlet 4. Oil fill 5. On/Off Switch (not pictured) 6. Pull start (not pictured) 7. Fuel valve (not pictured) 8. Knob Assembly (two each): Bolt Knob 9. - Page 3 5-gallon container. • The water supply temperature must not exceed 104°F/40°C. • Never use the pressure washer to draw in water contaminated with solvents, e.g. paint thinners, gasoline, oil, etc. • Always prevent debris from being drawn into the unit by using a clean water source.
-
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS Tools required: adjustable pliers. Step 1 Attach the handle to the frame of the pressure washer. Align holes, insert bolt, and tighten with knob. Step 3 Attach the triple jet nozzle to the spray wand. Step 5 Check oil level. Oil level should be to the oil filler neck. -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS Step 1 Connect the high pressure hose to the unit’s high pressure outlet. Step 3 Connect garden hose to the cold water source and turn water on completely. Step 6 Slide the throttle control to the fast position. Move the choke lever to the “CHOKE”... -
Page 6: Using The Accessories
OPERATING INSTRUCTIONS Step 8 Adjust pressure control to desired setting. USING THE ACCESSORIES The triple jet nozzle must be positioned to one of the two settings for high pressure cleaning by turning the nozzle tip. The pencil jet spray (0º) should be used for stubborn dirt. The High pressure flat spray (25º) should be used for cleaning over a large surface area. -
Page 7: Working With Detergents
Step 1 To apply detergents the triple jet nozzle must be set to the “CHEM” position. Step 2 Fill a container with Karcher detergent. Place the filter end of detergent suction tube into the container. Step 3 With the engine running, pull trigger to operate unit: Liquid detergent is drawn into the unit and mixed with water. -
Page 8: Shut Down And Clean-Up
SHUTTING DOWN & CLEAN-UP Step 1 Remove detergent suction tube from container and insert into one gallon of fresh water. Siphon water at low pressure for one minute. Step 5 Press trigger to release water pressure. TAKING A BREAK... five minutes or more Step 1 Turn off the engine. -
Page 9: Cleaning Tips
(for best results, limit your work area to sections of approximately 6 feet and always apply detergent from bottom to top). Allow Karcher House Wash to remain on surface 1-3 minutes. Do not allow detergent to dry on surface, if surface appears to be drying, simply wet down surface with fresh water. -
Page 10: Optional Cleaning Accessories
• If painted surfaces are pealing or chipping, use extreme caution as pressure washer may remove the loose paint from the surface. Use extreme caution when cleaning decks,... -
Page 11: Troubleshooting
Engine throttle is not in correct position. For additional engine problems Pressure built up in the refer to the engine high pressure washer. owners manual. Unit does not reach Diameter of garden hose is high pressure. too small. Water supply is restricted. -
Page 12: Troubleshooting
Check that all fittings are tight. Thermal protection device will automatically reset. Call service center. Call service center. If you encounter any additional difficulties not listed, please call our service center for help. Karcher Customer Support USA Karcher Customer Support USA 1-800- 537-4129 1-800- 537-4129...
