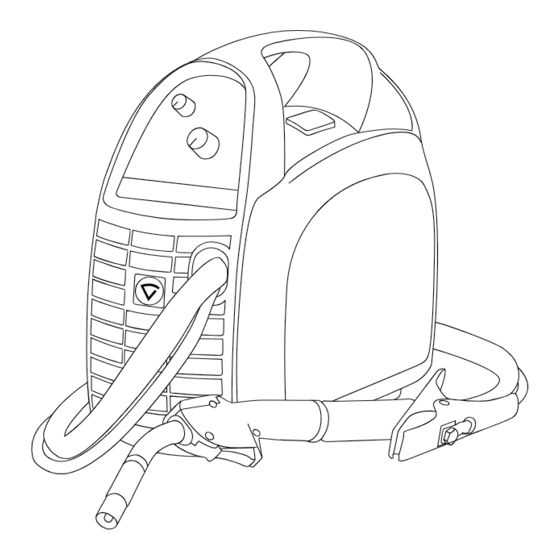

MinarcMig
Adaptive 170
EN
Operating manual • English
FI
Käyttöohje • Suomi
SV
Bruksanvisning • Svenska
NO
Bruksanvisning • Norsk
DA
Brugsanvisning • Dansk
DE
Gebrauchsanweisung • Deutsch
NL
Gebruiksaanwijzing • Nederlands
FR
Manuel d'utilisation • Français
ES
Manual de instrucciones • Español
PL
Instrukcja obsługi • Polski
RU
Инструкции по эксплуатации • По-русски
ZH
操作手册 • 中文

Advertisement

Table of Contents
loading

Related Manuals for Kemppi Adaptive 170

Summary of Contents for Kemppi Adaptive 170

  • Page 1 MinarcMig Adaptive 170 Operating manual • English Käyttöohje • Suomi Bruksanvisning • Svenska Bruksanvisning • Norsk Brugsanvisning • Dansk Gebrauchsanweisung • Deutsch Gebruiksaanwijzing • Nederlands Manuel d’utilisation • Français Manual de instrucciones • Español Instrukcja obsługi • Polski Инструкции по эксплуатации • По-русски...
  • Page 3 OPERATING MANUAL English...

  • Page 4: Table Of Contents

    CONTENTS PREFACE ......................... General .......................... Properties ........................MACHINE USE ....................Before implementation ..................General view of the machine ................Distribution network ..................... Cable connections ....................Filler wire ........................2.5.1 Changing the feed roll groove ..............2.5.2 Threading the filler wire ................2.5.3 Reversing polarity ..................

  • Page 5: Preface

    For your own safety and that of your working environment, pay particular attention to the safety instructions in the manual. For more information on Kemppi products, contact Kemppi Oy, consult an authorised Kemppi dealer, or visit the Kemppi web site at www.kemppi.com.

  • Page 6: Machine Use

    MACHINE USE The machine is delivered ready for operation without adjustments with 0.8 mm diameter filler wire. If you use non-recommended filler wire, make sure that the feed roll groove, welding gun contact tip and machine polarity are suited for the used wire size and type.

  • Page 7: General View Of The Machine

    High rates of harmonic current may cause losses and disturbance to some equipment. MinarcMig Adaptive 170: WARNING: This equipment does not comply with IEC 61000-3-12. If it is connected to a public low voltage system, it is the responsibility of the...

  • Page 8: Welding Gun

    The machine can also be used with a generator. The minimum power for the generator is 4.2 kVA, and the recommended power 8.0 kVA in order for the machine to be used at maximum capacity. Earthing The earthing cable is already connected to the machine. Clean the workpiece surface and fix the earthing cable clamp to the piece in order to create a closed and interference-free circuit needed for welding.

  • Page 9: Filler Wire

    Connect the hose to the gas bottle’s control valve and tighten the connector. Adjust the flow rate with the control valve screw. A suitable shielding gas flow rate is 8 – 15 l/min. Close the bottle’s valve after use. NOTE! Use a shielding gas suitable for the material’s welding.

  • Page 10: Threading The Filler Wire

    2.5.2 Threading the filler wire Open the reel housing by pressing on the opening button and install the wire reel in such a way that it rotates counter clockwise. You can use either a 5 kg (diameter 200 mm) or 1 kg (100 mm) wire reel in the machine.

  • Page 11: Reversing Polarity

    NOTE! When driving the wire in to the gun, do not point the gun at yourself or others or put, for example, your hand in front of the tip, because the cut wire end is extremely sharp. Also, do not put your fingers near the feed rolls, because they might get squeezed between the rolls.

  • Page 12: Controls And Indicator Lights

    CONTROLS AND INDICATOR LIGHTS Welding power control Arc length trimmer Standby indicator light Overheating indicator light The welding power is adjusted according to the thickness of the welded sheet. The machine also has a trimmer for arc length. Indicator lights display the machine’s standby mode and inform of a possible overheating.

  • Page 13: Welding Power Adjustment

    2.6.1 Welding power adjustment Adjusting the welding power according to sheet thickness affects simultaneously both wire feed speed and amount of current lead to the wire. This is a good starting point for welding in different operating situations. However, connection type and root opening may influence the amount of welding power needed.

  • Page 14: Threading The Shoulder Strap

    THREADING THE SHOULDER STRAP The machine is delivered with a shoulder strap which helps carrying the machine. Thread the shoulder strap in place according to the picture. NOTE! The machine should not be hung up from the shoulder strap. SERVICE When servicing the machine, its utilization degree and environmental circumstances should be taken into account.

  • Page 15: Daily Maintenance

    • Remove welding spatters from the welding gun’s tip and check the condition of the parts. Change damaged parts to new ones immediately. Only use original Kemppi spare parts. • Check that the insulating tips of the welding gun’s neck are undamaged and in place.

  • Page 16: Disposal

    The owner of the equipment is obliged to deliver a decommissioned unit to a regional collection centre, per the instructions of local authorities or a Kemppi representative. By applying this European Directive you will improve the environment and human health.

  • Page 17: Troubleshooting

    • Machine’s volume-capacity ratio has been exceeded; wait for the indicator light to switch off • The supply voltage is too low or too high If the machine’s malfunction can not be corrected with these measures, contact the Kemppi maintenance service.

  • Page 18: Ordering Numbers

    ORDERING NUMBERS Product Ordering number MinarcMig™ Adaptive 170 6108170 (including gun, cables, gas hose and shoulder strap) Welding gun MMG20 (3 m) 6250200 Earthing cable and clamp (3 m) 6184003 Shielding gas hose (4.5 m) W001077 Shoulder strap 9592162 Consumables for wire feed mechanism Feed roll 0.6 –...

  • Page 19: Technical Data

    TECHNICAL DATA MinarcMig™ Adaptive 170 Connection voltage 50/60 Hz 1 ~ 230 V ±15% Rated power 25% ED 8.0 kVA 170 A 60% ED 5.3 kVA 120 A 100% ED 4.2 kVA 100 A Supply current, I 30 A 1max...
  • Page 20 78681 EPONE CEDEX myynti.fi@kemppi.com info.ru@kemppi.com FRANCE Tel +33 1 30 90 04 40 KEMPPI SVERIGE AB KEMPPI, TRADING (BEIJING) COMPANY, Telefax +33 1 30 90 04 45 LIMITED Box 717 sales.fr@kemppi.com Room 420, 3 Zone, Building B, S-194 27 UPPLANDS VÄSBY No.12 Hongda North Street,...
