Konica Minolta bizhub PRO C5501 Product Manual

Hide thumbs Also See for bizhub PRO C5501:

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual
Product Guide
bizhub PRO C5501
Status: 08.2008
Konica Minolta Business Solutions Europe GmbH
Version: 1.2
International Marketing Division
Production Printing

Advertisement

loading

Related Manuals for Konica Minolta bizhub PRO C5501

Summary of Contents for Konica Minolta bizhub PRO C5501

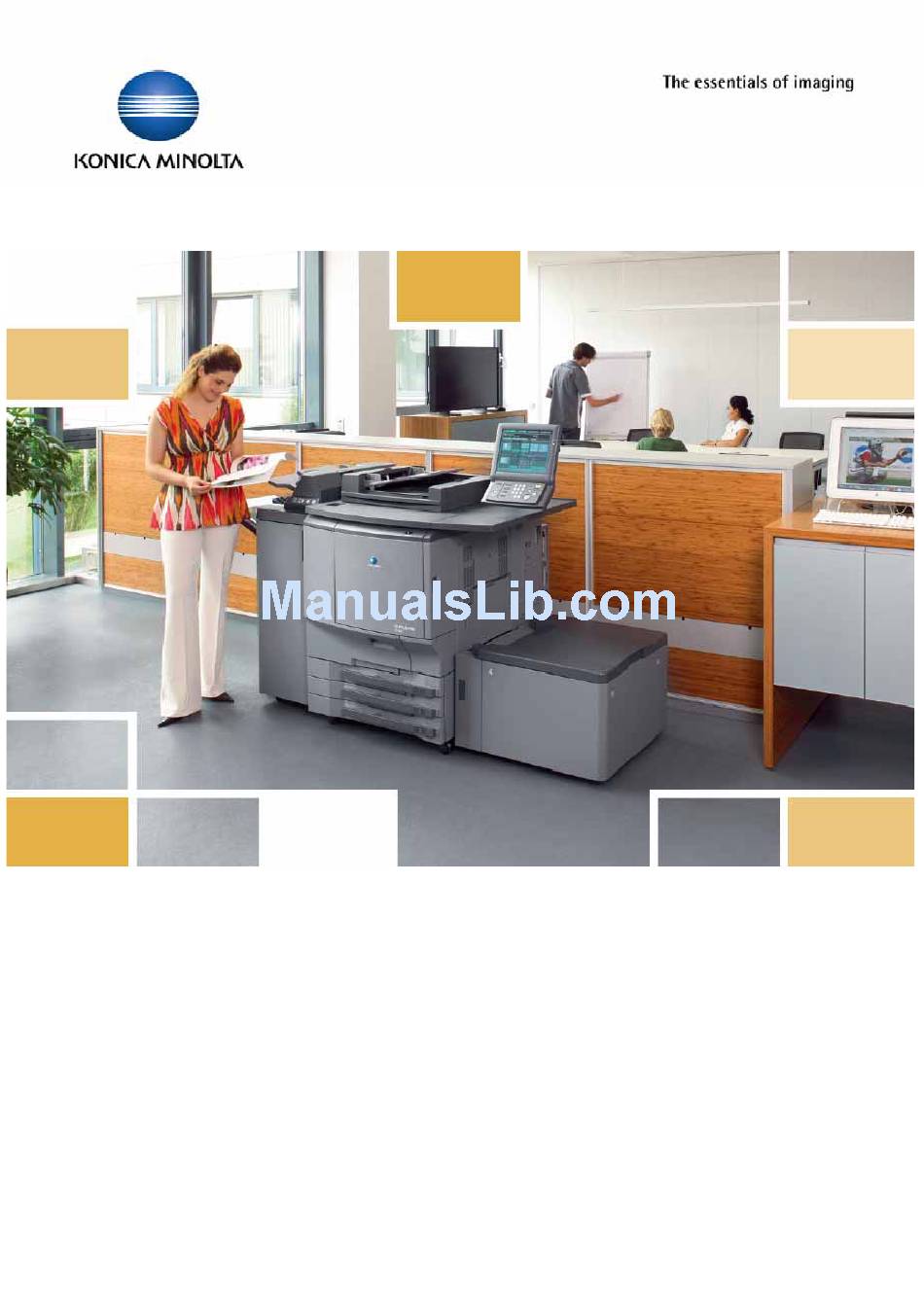

  • Page 1 Product Guide bizhub PRO C5501 Status: 08.2008 Konica Minolta Business Solutions Europe GmbH Version: 1.2 International Marketing Division Production Printing...
  • Page 2 Product Guide, bizhub PRO C5501 Product Basic MODEL DEVELOPMENT CODE Engine Spec. Monet e-55 System Config. MODEL NAME bizhub PRO C5501 System Spec. SUCCESSOR MODEL FOR bizhub PRO C5500 Print Controller ESTIMATED SALES START 09/2008 Copier Spec. INFOSOURCE SEGMENT Consumables...
  • Page 3 Product Guide, bizhub PRO C5501 Product Basic Type Engine Spec. Console Type System Config. Colour Full-Colour Colour Method 4 drums tandem laser electric transfer System Spec. Copy speed Print Controller Colour A4 55ppm Copier Spec. BW A4 55ppm Consumables Colour A4 3.000pph *depends on engine settings Article No.
  • Page 4 Product Guide, bizhub PRO C5501 Paper Weight 64 – 300gsm Product Basic Leading/trailing Edge：Less than 4mm Engine Spec. Both Side: Less than 3mm Missing Image - Trailing edge 6 mm or less for Thick paper 200 g/m2 or System Config.
  • Page 5 Product Guide, bizhub PRO C5501 Power Save 8 W Energy Consumption Efficiency Environment Energy Star Program, WEEE, RoHS Security ISO 15408...
  • Page 6 Product Guide, bizhub PRO C5501 Product Basic Engine Spec. System Config. System Spec. Print Controller Copier Spec. Consumables Article No. Parts Installation Maintenance Attachment IC-305 IC-304 Plus External External EFI Controller CREO Controller...
  • Page 7 Product Guide, bizhub PRO C5501 Product Basic Product Basic Paper Cassettes Engine Spec. Engine Spec. Standard System Config. System Config. Capacity 3 x 500 sheets 64 – 256gsm ( 209– 256gsm only for larger than Paper Weight System Spec. System Spec.
  • Page 8 Product Guide, bizhub PRO C5501 Product Basic Original Feeder Option Engine Spec. Product Name DF-609 System Config. Compatibility bizhub PRO C5500, C6500, C5501, C6501 System Spec. Tray Capacity 100 Sheets Print Controller Original Weight simplex 35 - 210gsm Original Weight duplex 50 – 210gsm Copier Spec.
  • Page 9 Product Guide, bizhub PRO C5501 Product Basic Hard disc HD-506 Option Engine Spec. Product Name HD-506 System Config. Capacity 4 x 40 GB Hard disc drive System Spec. Print Controller Copier Spec. Consumables Article No. Parts Installation Maintenance Appendix...
  • Page 10 Product Guide, bizhub PRO C5501 Product Basic Manual Bypass Engine Spec. Standard System Config. Capacity 250 sheets Paper Weight 64 – 300gsm System Spec. Paper Format A5 – SRA3 LU-202 Min. 100 x 148mm HT-503 Max. 330 x 487mm FS-520...
  • Page 11 Product Guide, bizhub PRO C5501 Product Basic Staple Finisher Option Engine Spec. Product Name FS-520 System Config. Type The Finisher with Staple Function System Spec. Straight Exit Mode Function Exit paper without treatment on the main tray LU-202 Tray Capacity HT-503 Small size 3.000 Sheets A4, A4S, B5, B5S,...
  • Page 12 Product Guide, bizhub PRO C5501 Paper Weight 60 – 300gsm Product Basic A3, B4, A4, A4S, B5, B5S, A5, SRA4S, 12x18, Paper Format 11x17, 8.5"x14", 8.5"x11", 8.5"x11S, 5.5"x8.5", TAB Engine Spec. paper, custom paper System Config. Min. 182 x 148mm System Spec.
  • Page 13 Product Guide, bizhub PRO C5501 Tray Capacity 100 sheets Product Basic Paper Weight 64 – 300gsm Engine Spec. Paper Format A3, B4, A4, A4S, B5, B5S, A5, A5S, B6S, A6S, SRA3, SRA4, SRA4S System Config. Foolscap, 8-1/4"×13", 8-1/2"×13", 8-1/8"×13-1/4", Post CardS, 13"×19", 12"×18", Ledger, Legal, Letter, System Spec.
  • Page 14 Product Guide, bizhub PRO C5501 Product Basic Booklet Finisher Option Engine Spec. Product Name FS-607 System Config. Type The Finisher with Staple / Folding Function System Spec. Straight Exit Mode Function Exit paper without treatment on the main tray LU-202...
  • Page 15 Product Guide, bizhub PRO C5501 Tray Capacity Max. 1000 Sheets Product Basic Staple Mode < 417mm > 417mm Engine Spec. 10-20 21-30 System Config. 31-40 System Spec. 41-50 Capability 64-80gsm: Max. 50 sheets; 48sheets + 2sheets LU-202 200gsm 81-105gsm: Max. 30 sheets; 28sheets + 2sheets...
  • Page 16 Product Guide, bizhub PRO C5501 It is possible to be fold within 3 copies, the set paper Function Product Basic exits on the booklet tray. Tray Capacity 1 sheet fold : More than 50 sets Engine Spec. 64 - 80gsm: 1-3 sheets...
  • Page 17 Product Guide, bizhub PRO C5501 Product Basic Punch Kit Option Engine Spec. Product Name PK-512 System Config. Type 2/4 holes, Diameter 6.5mm（Selectable ） System Spec. Compatibility bizhub PRO C5500, C6500, C6501 LU-202 Paper size A3, B4, A4, A4S, B5, B5S, A5, A5S, SRA4S,...
  • Page 18 Product Guide, bizhub PRO C5501 Product Basic Post Inserter PI-502 Option Engine Spec. Product Name PI-502 System Config. Type Cover Paper feeding Tray ( 2 trays ) System Spec. Compatibility bizhub PRO C5500, C6500, C6501 LU-202 Paper Format Upper tray A4, A4S, B5, B5S, A5, 8.5"x11", 8.5"x11"S, 5.5x8.5,...
  • Page 19 Product Guide, bizhub PRO C5501 Product Basic Engine Spec. Internal EFI Controller Option Product Name IC-408 Product Spec. Compatibility bizhub PRO C5500, C6500, C5501, C6501 System Config. System Spec. Print Controller External EFI Controller Option IC-408 Product Name IC-305 bizhub PRO C6500, C6500e/eP, C5501, C6501,...
  • Page 20 Product Guide, bizhub PRO C5501 – – Product Basic Engine Spec. Hardware Configuration Product Spec. Fiery Platform X3ETY System Config. Fiery System version System 8 System Spec. Base Operating System Windows XPe Print Controller 2.8 GHz RAM Memory 512 MB...
  • Page 21 Product Guide, bizhub PRO C5501 Record & Set Level Finishing Support Product Basic Freeform v1 and v2.1 Yes Engine Spec. VDP record range printing Product Spec. VDP imposition (requires EFI Impose) System Config. System Spec. VDP Resource Manager Print Controller...
  • Page 22 Product Guide, bizhub PRO C5501 Secure Printing (From Fiery LCD) Product Basic Secure Erase Optional Engine Spec. Microsoft print server support Product Spec. PnP from print server Yes System Config. print from Fiery Driver Yes System Spec. Terminal Server Yes...
  • Page 23 Product Guide, bizhub PRO C5501 Combine Separations (CMYK) Product Basic Output Profile Engine Spec. Paper Simulation (enabled with GA Package) Optional Product Spec. Substitute Colors (enabled with GA Package, PE) Optional System Config. ICC Profiles System Spec. Profile Manager for ICC Profiles...
  • Page 24 Product Guide, bizhub PRO C5501 SNMP Product Basic Common Printer MIB Yes Engine Spec. SNMP Configurable Community Name Yes Product Spec. SNMP On/Off Switch Yes System Config. Port 9100 (w/BiDi) System Spec. Print Controller Email client IC-408 Print via Email (PS/PDF) Yes...
  • Page 25 Product Guide, bizhub PRO C5501 Scan retrieval Product Basic Through twain plug-in and application Yes Engine Spec. Web Yes Product Spec. System Config. ColorWise Pro Tools System Spec. Calibrator Print Controller ColorCal (w/Autogray) Yes IC-408 ES1000 support Yes IC-305 X-Rite DTP 32 Series II & 41 Yes...
  • Page 26 Product Guide, bizhub PRO C5501 Command WorkStation for Mac Product Basic Compatible with MacOS OS 10.2+ Engine Spec. Downloadable from WebTools Product Spec. Security (admin, operator, guest logins) System Config. Job properties System Spec. Job merge Print Controller Job Preview...
  • Page 27 Product Guide, bizhub PRO C5501 Job reorder (of held jobs, enabled w/Production Product Basic Package) Load Balancing (Manual) PS/PDF jobs Engine Spec. Find file by general and advanced attributes Product Spec. Multiple Fiery view System Config. Tool tips style help System Spec.
  • Page 28 Product Guide, bizhub PRO C5501 Fiery Downloader (TCP/IP) Product Basic Postscript Engine Spec. PS,EPS files Product Spec. System Config. Fonts System Spec. Font backup and restore Print Controller VDP files IC-408 Tiff 6 IC-305 EFI Hotfolder IC-304 Plus Support for Win 2000/2003/XP Option Copier Spec.
  • Page 29 Product Guide, bizhub PRO C5501 Compatibility IC-408 Product Basic Functionality Enhance Memory to 1GB Engine Spec. Product Spec. System Config. Fiery GA Auto Trap Option (Controller) Compatibility IC-408 System Spec. Automatically corrects possible mis-registration of Functionality Print Controller the printer for composite or separated documents.
  • Page 30 Product Guide, bizhub PRO C5501 IC-305 – External EFI controller Product Basic Hardware Configuration Engine Spec. Fiery Platform PRO-80 Product Spec. Fiery System version System 8 R2 System Config. Base Operating System MS Windows XPe SP2 System Spec. Intel Core 2 Duo @ 2,13 GHz...
  • Page 31 Product Guide, bizhub PRO C5501 Creo VPS Product Basic VDP record range printing Engine Spec. VDP imposition (requires EFI Impose) Optional Product Spec. System Config. VDP Resource Manager System Spec. Global object deletion Print Controller PPML IC-408 Creo VPS IC-305 Freeform v1 &...
  • Page 32 Product Guide, bizhub PRO C5501 Secure Erase Product Basic Microsoft print server support Engine Spec. PnP from print server Product Spec. print from Fiery Driver System Config. Terminal Server System Spec. Mixed Media Support (w/VDP support) Print Controller Tab Shift...
  • Page 33 Product Guide, bizhub PRO C5501 Combine Separations (CMYK) Product Basic Output Profile Engine Spec. Paper Simulation (enabled with GA Package) Optional Product Spec. Substitute Colors (enabled with GA Package, PE) Optional System Config. ICC Profiles System Spec. Profile Manager for ICC Profiles...
  • Page 34 Product Guide, bizhub PRO C5501 SNMP Product Basic Common Printer MIB Engine Spec. SNMP Configurable Community Name Product Spec. SNMP On/Off Switch System Config. Port 9100 (w/BiDi) System Spec. Print Controller Email client IC-408 Print via Email (PS/PDF) IC-305 Email Port Monitor EFI SDK v1.0...
  • Page 35 Product Guide, bizhub PRO C5501 Scan retrieval Product Basic Through twain plug-in and application Engine Spec. Product Spec. System Config. ColorWise Pro Tools System Spec. Calibrator Print Controller ColorCal (w/Autogray) IC-408 ED-100 support IC-305 ES1000 support X-Rite DTP 32 Series II & 41...
  • Page 36 Product Guide, bizhub PRO C5501 Product Basic Command WorkStation for Mac Engine Spec. Compatible with MacOS OS 10.2+ Product Spec. Downloadable from WebTools System Config. Security (admin, operator, guest logins) System Spec. Job properties Print Controller Job merge IC-408 Job Preview...
  • Page 37 Product Guide, bizhub PRO C5501 Multiple Job Preview Product Basic Job reorder (of held jobs, enabled w/Production Package) Engine Spec. Load Balancing (Manual) PS/PDF jobs Product Spec. Find file by general and advanced attributes System Config. Multiple Fiery view System Spec.
  • Page 38 Product Guide, bizhub PRO C5501 Product Basic Fiery Downloader (TCP/IP) Engine Spec. Postscript Product Spec. PS,EPS files System Config. System Spec. Fonts Print Controller Font backup and restore IC-408 VDP files IC-305 Tiff 6 IC-304 Plus EFI Hotfolder Copier Spec.
  • Page 39 Product Guide, bizhub PRO C5501 Option (Controller) GA Premium Edit. Product Basic Compatibility IC-303, IC-305 Engine Spec. EFI Image Viewer Soft Proof PDF new Product Spec. Integrated Hot folder filters PDF/X-1a and PDF/X-3 preflight System Config. Advanced trapping support Functionality Paper simulation white point editing System Spec.
  • Page 40 Product Guide, bizhub PRO C5501 Product Basic Engine Spec. HDD Security Option (Controller) Product Spec. Compatibility IC-305, IC-303, IC-302 The Fiery Removable Hard Drive Option provides System Config. the user with the ability to lock the server’s hard Functionality drive into the system for normal operation and the System Spec.
  • Page 41 Product Guide, bizhub PRO C5501 Product Basic Color Profiler V2 UV Option (Controller) Engine Spec. Compatibility IC-305, IC-303, IC-302, IC-405, IC-408 and more Product Spec. Calibration – ICC profiling, Spectrophotometer Functionality ES1000, Monitor profiling System Config. Package Includes System Spec.
  • Page 42 Product Guide, bizhub PRO C5501 – – Product Basic Hardware Configuration Engine Spec. Base Operating System Windows XP Product Spec. Intel Core 2 Duo @ 3,0 GHz System Config. RAM Memory 2,048 System Spec. Hard Drive 3 x 250 GB...
  • Page 43 Product Guide, bizhub PRO C5501 Yes ( RFC1213 ) SNMP Product Basic Engine Spec. PRINT CONTROLLER CLIENTS Product Spec. Mac OS 10 Native & Classic Windows 2000 Professional System Config. Client Platforms Windows NT Windows XP Professional System Spec. Windows Server 2003 Print Center version 2.2 - for Mac...

  • Page 44: Quality Parameters

    Product Guide, bizhub PRO C5501 Paper Stock Product Basic Tray Engine Spec. Force tray Product Spec. Gallop System Config. Web Center Web Viewer Remote Tools System Spec. Viewer API Hor Folders Print Controller IC-408 IMPOSITION PARAMETERS IC-305 Method IC-304 Plus...

  • Page 45: Color Parameters

    Product Guide, bizhub PRO C5501 IC-304 Improved text/line in image Product Basic Trapping Engine Spec. Black Overprint Product Spec. PS Overprint System Config. Screening System Spec. Print Controller COLOR PARAMETERS IC-408 Color Mode IC-305 Brightness Control Contrast Control IC-304 Plus Spots Copier Spec.

  • Page 46: Service Tools

    Product Guide, bizhub PRO C5501 Rotate 180 Product Basic Scaling Engine Spec. Product Spec. EXCEPTIONS PARAMETERS System Config. Page Range System Spec. Front Cover Print Controller Back Cover IC-408 Inserts IC-305 Exceptions Advanced options Imposed Page Exceptions IC-304 Plus Admin Page Copier Spec.
  • Page 47 Product Guide, bizhub PRO C5501 Aborted Job Product Basic Held Job Engine Spec. Job Processing Product Spec. Job Printing System Config. Edit Parameters System Spec. Resubmit Print Controller Delete IC-408 Duplicate IC-305 Preview Archive and Retrieve IC-304 Plus PDF2Go Copier Spec.
  • Page 48 Product Guide, bizhub PRO C5501 Job History Product Basic Messages Engine Spec. Accounting Product Spec. Printer States System Config. Resource Status System Spec. IC-304 Print Controller Resources Monitor Print Controller Job Ticket Report IC-408 Detecting and reporting errors IC-305 IC-304 Plus...
  • Page 49 Product Guide, bizhub PRO C5501 Product Basic Engine Spec. Copier Functionality Product Spec. Auto Original Detection Colour / BW System Config. Auto Size Detection Yes Auto Tray Selection Yes System Spec. Auto Tray Switch Yes Print Controller Magnification Copier Spec.
  • Page 50 Product Guide, bizhub PRO C5501 Product Basic Engine Spec. Toner Product Spec. TN612C A0VW450 System Config. TN612M A0VW350 TN612Y A0VW250 System Spec. TN612K A0VW150 Print Controller Compatibility Bizhub PRO C6501, C6501e /e P Copier Spec. Type Consumables Weight CMY 500g Article No.
  • Page 51 Product Guide, bizhub PRO C5501 Type OPC Lifetime 150.000 Product Basic Staples for FS-607 Engine Spec. MS—5C 44448121 Product Spec. Compatibility bizhub PRO C6501, C5500, C6500 System Config. Content 3 x 5000 staples System Spec. Staples for FS-520 Print Controller SK-602 14YK Copier Spec.
  • Page 52 Product Guide, bizhub PRO C5501 Product Basic Engine Spec. Machine Product Spec. bizhub PRO C5501 A0U1021 System Config. Accessories Document Feeder DF-609 A052WY1 System Spec. Platen Cover OC-506 A0420Y0 Print Controller Hard Disk Drive HD-506 A03Y0Y0 Copier Spec. Patlite indicator Lamp 9967000109...
  • Page 53 Product Guide, bizhub PRO C5501 Color Profiler V2 non-UV 9967000312 Product Basic Print Controller IC-305 Engine Spec. External EFI controller IC-305 A0MD0Y0 Product Spec. GA package 9967000280 System Config. GA Premium Edition 9967000281 System Spec. GA Premium Edit.Upgr. 9967000282 Print Controller HDD Security 9967000239 Copier Spec.
  • Page 54 Product Guide, bizhub PRO C5501 Toner Black TN610K A0VW150 Staples FS-520 14YK Staples FS-607 4448121 Product Basic User Manual Engine Spec. EN 9961550300 Product Spec. DE 9961550301 System Config. FR 9961550302 System Spec. ES 9961550303 Print Controller IT 9961550304 Copier Spec.
  • Page 55 Product Guide, bizhub PRO C5501 DA 9969650007 SV 9969650008 NO 9969650009 FI 9969650010 EL 9969650011 TR 9969650013 CS 9969650015 PL 9969650021 RU 9969650023...
  • Page 56 Product Guide, bizhub PRO C5501 Product Basic Engine Spec. Will be added later. Product Spec. System Config. System Spec. Print Controller Copier Spec. Consumables Article No. Parts Installation Maintenance Attachment...
  • Page 57 Due to the high manufacturing level and the resulting robust frame, it is not possible to Engine Spec. unpack and move the bizhub PRO C5501 by a single person directly after delivery. The total weight of the main body is alone is 360 kg. At least in the early stage of installation, Product Spec.
  • Page 58 Product Guide, bizhub PRO C5501 EN DE FR ES NL DA SV NO FI TR CS PL RU Display Messages Operator Mode Administrator Mode Service Mode Face Sheet Labels Documentation User Manual Administrator Manual Service Manual Installation Manual Printer Driver...
  • Page 59 Product Guide, bizhub PRO C5501 Product Basic Reduction of the Maintenance time and higher availability of the Engine Spec. product Product Spec. Preventive measure System Config. To prevent dust development in the machine the charge and the bias voltage system were changed.
  • Page 60 Product Guide, bizhub PRO C5501 Product Basic Pages per Minute Engine Spec. Mode CPM of Each Paper Size (CPM) Product Spec. Colour / Output Process Condition Speed A4S B5S A4 System Config. Colour Simplex 1 / 1 29.3 32.9 37.1 40.0 43.6 48.6 55.2 65.3 55.2 System Spec.
  • Page 61 Product Guide, bizhub PRO C5501 Colour Productivity Product Basic Engine Spec. Productivity of each mode ( % ) Colour B / W Product Spec. Sheet S-S System Config. 1 50.7 34.9 44.9 40.1 53.3 35.9 46.2 40.7 3 75.0 64.9 71.1 66.9 77.6 65.9 72.2 67.5 System Spec.
  • Page 62 Product Guide, bizhub PRO C5501 Speed per Paper weight and type Product Basic Engine Spec. 64 -74 75 - 80 81 -105 106 - 135 136 - 162 163 - 209 210 - 256 257 - 300 Plain Paper Normal Product Spec.

  • Page 63: First Copy Out Time

    Product Guide, bizhub PRO C5501 First Copy Out Time Product Basic Mode Engine Spec. Output Process Tray 1 Tray 2 Tray 3 Bypass LU-202 Product Spec. Condition Speed Colour Simplex 1 / 1 5.91 5.90 5.90 5.91 5.90 System Config.

  • Page 64: Qzone Definition

    Product Guide, bizhub PRO C5501 QZone definition Product Basic Engine Spec. Product Spec. System Config. System Spec. Print Controller Copier Spec. Consumables Article No. Parts Installation Maintenance Attachment...

  • Page 65: Recommended Papers

    Product Guide, bizhub PRO C5501 Recommended Papers Product Basic Engine Spec. Manufactur Name Type Status Hammermill Color Copy Photo Bond REFERENCE Product Spec. White Mondi Color Copy Uncoated paper REFERENCE System Config. Mondi Color Copy Uncoated paper REFERENCE System Spec.
  • Page 66 Product Guide, bizhub PRO C5501 Clairefontaine Business RECOMMENDED Product Basic Clairefontaine Uncoated Cover RECOMMENDED Engine Spec. Clairefontaine DCP coated Coated Cover RECOMMENDED silverpapers silver image Coated RECOMMENDED Product Spec. SUPERGLOSS silverpapers silver image MATT Coated RECOMMENDED System Config. Stora Enso...
  • Page 67 Product Guide, bizhub PRO C5501...
  • Page 68 Product Guide, bizhub PRO C5501 Konica Minolta Business Solutions Europe GmbH Product Marketing Division, Production Printing Group Europaallee 17 30855 Langenhagen · Germany...
