MX-GA77

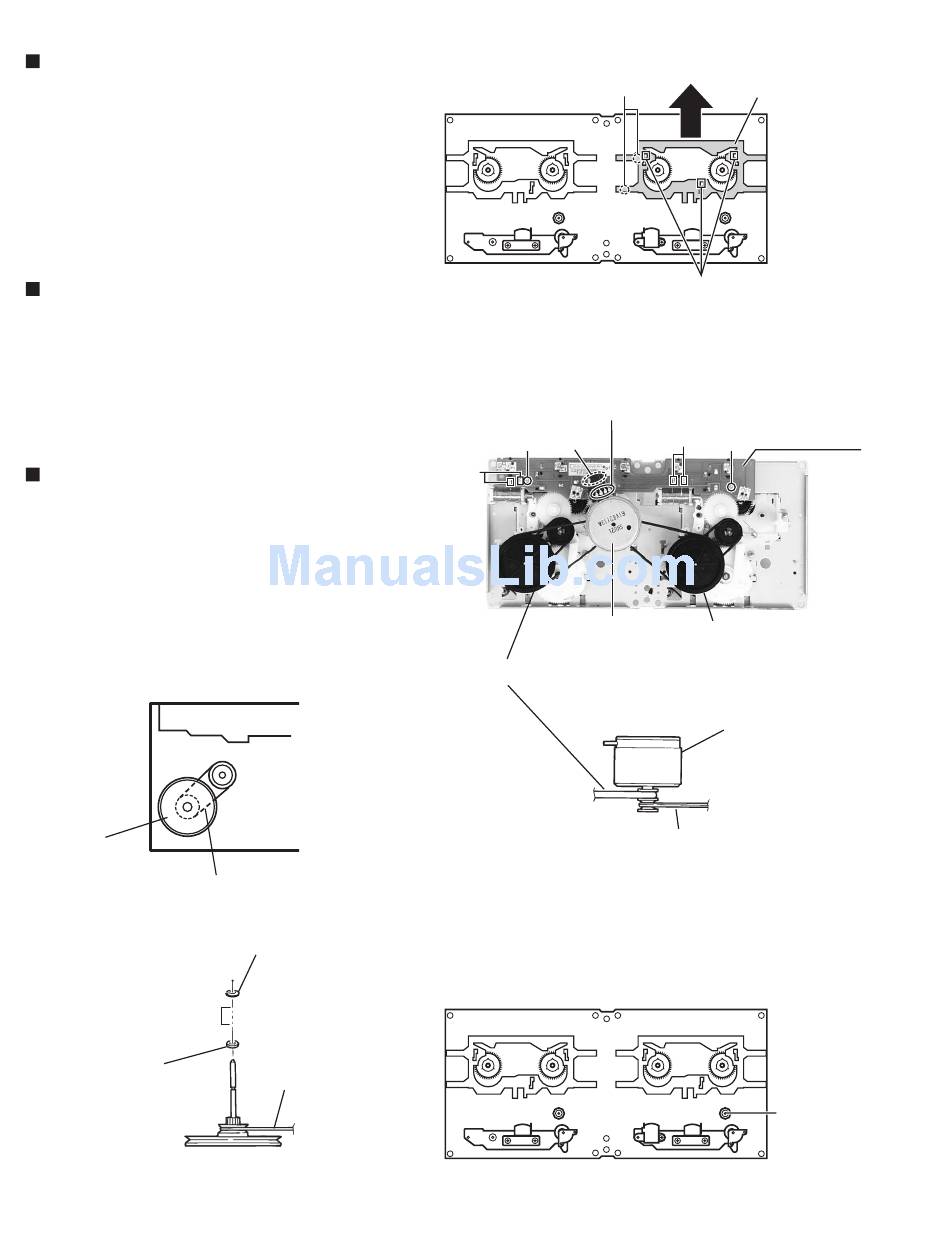

Removing the motor

1.
Slide the plastic cover in the direction of the arrow,
and remove the three claws. Then remove the
plastic cover.
2.
Remove the two screws D fixing the motor.
Be careful to grease's splash when the drive belt
comes off.
3.
Unsolder the motor terminal.

Removing the mechanism board

1.
Unsolder the four solder parts a and the four solder
parts b.
2. Remove the two screws E attaching the mecha.
board.

Removing the flywheel

1.
Remove the cut-washer at c from the capstan shaft,
then remove the flywheel.
When reassembling the flywheel, be sure to use new
washers as they cannot be reused.
Flywheel
Sleeve
Washer
1-16
(See Fig. 4 to 6)
(See Fig. 5)
(See Fig. 7 and 9)
FR belt
Fig.8
c
FR belt
Fig.9
Motor
terminal
Solder
E
part b
Solder
part a
Motor
Drive belt
D
Plastic cover
Claw
Fig.4
Solder
E
part a
Mecha. board
Drive belt
Fig.5
Motor
Drive belt
Fig.6
Capstan
washer
Fig.7
