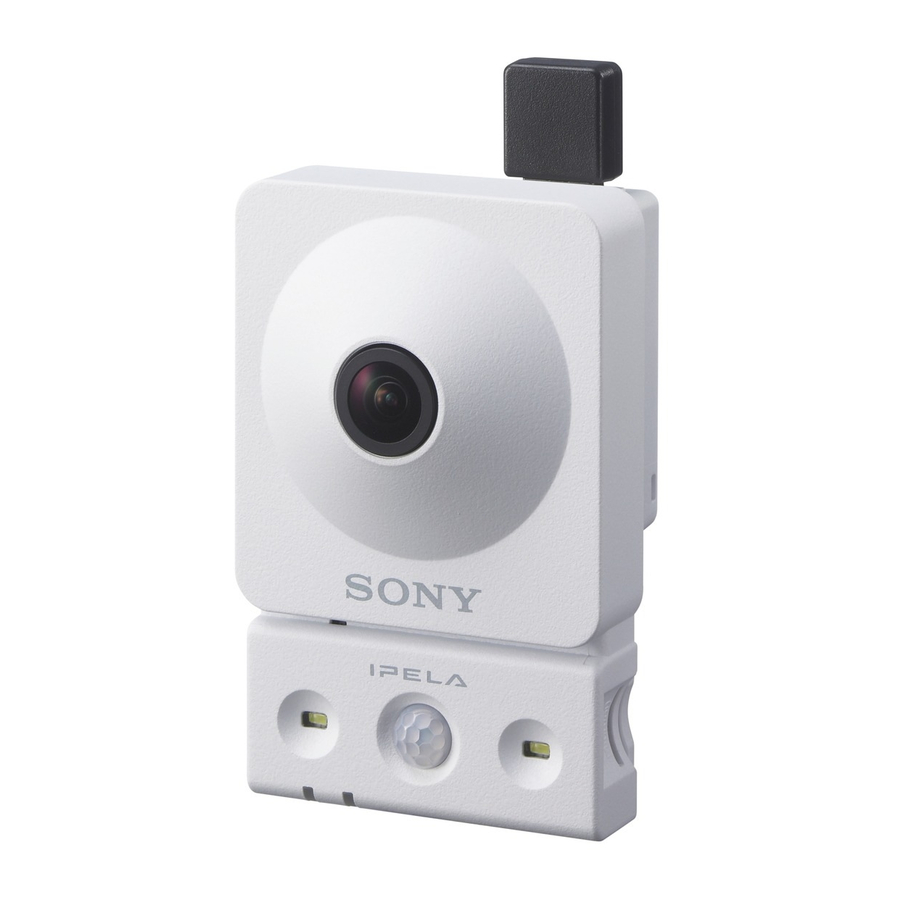

Network Camera

Easy Setting Manual
- Lighting up the white LED linked to the presence sensor
- Sounding an alarm linked to the presence sensor, etc.
(Voice Alert function)
- Recording video to a microSD card (Edge Storage function)
- Troubleshooting
The setting methods are described.
Settings are required to use these functions.
So make sure to read this manual.
Software Version 1.11.0
SNC-CX600W/CX600

Advertisement

Table of Contents
loading

Related Manuals for Sony Ipela SNC-CX600W

Summary of Contents for Sony Ipela SNC-CX600W

  • Page 1: Network Camera

    - Sounding an alarm linked to the presence sensor, etc. (Voice Alert function) - Recording video to a microSD card (Edge Storage function) - Troubleshooting The setting methods are described. Settings are required to use these functions. So make sure to read this manual. Software Version 1.11.0 SNC-CX600W/CX600...

  • Page 2: Table Of Contents

    Table of Contents Introduction －Connecting the camera with the computer via network and checking the video －Enter the administrator user name and password －Changing the user name and password 1. Lighting up the white LED linked to the presence sensor 1-1.

  • Page 3: Introduction

    3. Download the installer of "SNC toolbox" from the following URL, and install it on the computer. URL： http://www.sony.net/ipela/snc For details on installation and usage, refer to the Application Guide. 4. Start up “SNC toolbox” and double-click the model in the list.

  • Page 4: Enter The Administrator User Name And Password

    －Enter the administrator user name and password Enter the administrator user name and the password, which are required for performing camera settings, etc. 1. Click Setting in the main menu. Click 2. Enter the administrator user name and password. Enter Read the “Initializing this unit”...

  • Page 5: Changing The User Name And Password

    －Changing the user name and password Make sure to change the administrator user name and password from the factory setting to secure the security. 1. Click Security. Click 2. Enter new user name and password in the [Administrator] field of User and click OK.

  • Page 6: Lighting Up The White Led Linked To The Presence Sensor

    1. Lighting up the white LED linked to the presence sensor ◆This is a function to light up the white LED when the presence sensor has reacted in the dark environment. Presence sensor is a sensor that will detect the change in infrared emitted from human, animal, and other sources.
  • Page 7 3. Click Action output. Click 4. Set [White LED] to [Presence sensor] in Execution Condition, and click OK. Select [Presence sensor] Click Setting is completed if the setting for [White LED] is changed to [Presence sensor] after clicking OK.

  • Page 8: Changing The Light Up Time And Brightness Of The White Led

    Changing the light up time and brightness of the white LED The light up time ([Duration]) and brightness ([Illuminator level]* :6←1) can be set in White LED Action output. * It is displayed as [Maximum strength] for the software version 1.10.0 or earlier. Illuminator level Duration...

  • Page 9: Checking The Operation Of The White Led

    1-2. Checking the operation of the white LED Confirm that the presence sensor is linked with the white LED. When using a camera with software version 1.11.0 or later, skip “2.” in the following procedure. 1. Using a handkerchief, etc., so the lens is not touched with hands directly, cover the lens section of the camera completely so the light will not get in.

  • Page 10: Sounding An Alarm Linked To The Presence Sensor, Etc

    "SNC audio upload tool" is used to upload the audio file to a camera. 1. Access to the following URL via the Internet. URL： http://www.sony.net/ipela/snc 2. Download the "SNC audio upload tool" zip file from Utility & Software. 3. Extract the downloaded zip file by right clicking, and start up the exe file.

  • Page 11: Uploading The Sample Audio To The Camera

    2-3. Uploading the sample audio to the camera １. Connect the camera with the computer via network and start up. "SNC audio upload tool". ① Select the check box of the camera to upload the audio. ✔ ② Enter the administrator [UserID]/[Password] of the camera. ③...
  • Page 12 ② Confirm that the file name is reflected ① Upload will start after clicking Refer to the Application Guide regarding how to use and detailed functions of the audio upload tool. Application Guide can be downloaded from following URL. URL： http://www.sony.net/ipela/snc...

  • Page 13: Changing The Setting Of The Camera (Presence Sensor Link)

    2-4. Changing the setting of the camera The setting to hear the uploaded audio to the camera when the presence sensor has reacted is performed here. 1. Click Setting in the main menu Click 2. Enter the administrator user name and password. If you have forgotten the administrator user name or Enter...
  • Page 14 4. Confirm the uploaded [Voice alert number] and the file name Voice alert Action output. ① Confirm Voice alert number ②Confirm the file name 5. Set the [Voice alert number] confirmed in step 4 to [Presence sensor] Execution Condition, and click OK. ①Set to [Presence sensor] ②Click...

  • Page 15: Setting The Repeat Number And Volume Of The Audio

    Setting the repeat number and volume of the audio 1. Set the repeat number This can be set with Voice alert Action output. Set the repeat number Click after setting 2. Set the volume This can be set in Audio Video / Audio.

  • Page 16: Recording A Video On Microsd（Edge Storage Function

    3. Recording a Video on microSD （Edge Storage function） 3-1. Preparing the microSD Make sure to confirm the following About the microSD card that can be used with the camera ・ SDHC card compatible with Class 10 ・ Operation guarantee temperature: 85˚C or higher Operation is not guaranteed for all the microSD that will fulfill above requirements.

  • Page 17: When Using A Camera With Software Version 1.10.0 Or Earlier

    3-1-1. When using a camera with software version 1.10.0 or earlier 1. Format the microSD to be used. Use “SD Formatter” supplied by SD Association to format the microSD. ①. Download the installer for “SD Formatter” from the SD Association Web site. URL：...

  • Page 18: When Using A Camera With Software Version 1.11.0 Or Later

    3-1-2. When using a camera with software version 1.11.0 or later 1. Insert the microSD into the camera while the power of the camera is turned off. microSD 2. Turn on the power of the camera, access the camera from the Web browser, and click Setting in the main menu.
  • Page 19 3. Click Initialize System Click 4. Click Format memory card (Always confirm that the software version is 1.11.0 or later) Click Initialization starts after clicking. To initialize the memory card, it takes about 1 minute with a 32 GB Caution microSD card.

  • Page 20: Setting The Clock On The Camera

    3-2. Setting the clock on the camera This setting is necessary to record video on correct time. 1. Click Setting in the main menu. Click 2. Enter the administrator user name and password. Enter If you have forgotten the administrator user name or password, refer to “4-4.
  • Page 21 3. Set the [Time setting] in Date & Time System to [Synchronize with PC], select appropriate time zone for [Time zone], and click Set to [Synchronize with PC] Select appropriate time zone Click To set the time manually Set the [Time setting] in Date &...

  • Page 22: Changing The Setting Of The Camera

    3-3. Changing the setting of the camera 3-3-1. When performing constant recording 1. Click Setting in the main menu. Click 2. Enter the administrator user name and password. Enter If you have forgotten the administrator user name or password, refer to “4-4. Unsure of administrator user name and/or password.”...
  • Page 23 512 kbps Image 2, Image 3 ①Click ② Click ③Set Click after setting Caution There are some restrictions when performing a setting other than above. Download the “Edge Storage Manual” from the following URL, make sure to read URL： http://www.sony.net/ipela/snc...
  • Page 24 ✔ 4. Open Schedule and check that [Always] is selected for [Edge Storage movie]. Select...
  • Page 25 5. Confirm and set the following items in Edge Storage Action output and click OK. ① SD memory card Confirm the available space of the microSD ② Overwrite Place a check mark ✔ ③ Recording target Select [Image 1]. ① ②...
  • Page 26 6. In Execution Condition Action output, set [Edge Storage movie] to [Time triggered execution], and click OK. ① Click ② Set to [Time triggered execution] ③ Click Setting is completed if the setting for [Edge Storage movie] is changed to [Time triggered execution] after clicking OK.

  • Page 27: When Performing Event Recording

    3-3-2. When performing event recording 3-3-2-1. Setting a single event recording The setting to record a video for a specified period when the presence sensor has reacted is performed here. 1. Perform the setting up to “step 3 of 3-3-1.” 2.
  • Page 28 3. In Execution Condition Action output, set [Edge Storage movie] to [Presence sensor], and click OK. Set to [Presence sensor] Click Setting is completed if the setting for [Edge Storage movie] is set to [Presence sensor] after clicking OK.

  • Page 29: Setting A Multiple Event Recording

    3-3-2-2. Setting a multiple event recording The setting for setting multiple event conditions and recording a video for a specified period when the conditions are met is performed here. 1. Perform the setting up to “step 3 of 3-3-1.” 2. Open Event condition Action input, set as a desired condition,...
  • Page 30 3. Perform the setting for conditions to be set from above tabs. Perform detailed setting of the set condition from each tab Always set the event conditions other than the presence sensor. Refer to “Setting the Camera tampering detection/Motion detection” of the User Guide for detailed setting method.
  • Page 31 5. Open Execution Condition Action output, set the setting for [Edge Storage movie] to [Event condition 1], and click OK. Set to [Event condition 1] Click after setting Setting is completed if the setting for [Edge Storage movie] is changed to [Event condition 1] after clicking OK.

  • Page 32: Playing Back/Saving/Deleting The Recorded Video

    3-4. Playing back/saving/deleting the recorded video Playback/save/delete is set in the Play back window. Click Search panel List panel Control panel...
  • Page 33 3-4. Playing back/saving/deleting the recorded video 1. Specify the search period in the [Search] panel and click Search. Specify the search period. Click 2. Select the video to play back after the search result is displayed in the [List] panel, and click playback ( ) in the [Control] panel.
  • Page 34 3-4. Playing back/saving/deleting the recorded video 1. Select the video to save from the [List] panel and click Export. Select the list to record Click 2. A wizard for exporting is displayed. When completed, click Close. The saved video file is displayed by clicking on the open file ( in the [List] panel.
  • Page 35 3-4. Playing back/saving/deleting the recorded video 1. Select the video in the [List] panel and click Delete. Select the video to delete Click 2. Enter the administrator user name and password in the [Authentication] window and click OK. Enter Click 3.

  • Page 36: To Forcefully Light Up The White Led

    ４．Troubleshooting 4-1. To forcefully light up the white LED This is a function to forcefully light up the white LED regardless of the presence sensor or the ambient brightness of the environment. Please note that the procedure is different depending on the software version of the camera.

  • Page 37: When Using A Camera With Software Version 1.11.0 Or Later

    4-1-2. When using a camera with software version 1.11.0 or later 1. Click Setting in the main menu. Click 2. Click White LED Action output. ① Click [Execute] in [Test] to start the force light up. ② Always click [Stopped] in [Test] to end the force light up. Click...

  • Page 38: To Confirm The Response Of The Presence Sensor

    4-2. To confirm the response of the presence sensor 1. Click Setting in the main menu. Click 2. Click Video / Audio. Click Click 3. Click Superimpose.
  • Page 39 ✔ 4. Place a check mark in the check box and set [Type] to [Event]. ✔ Select Set to [Event] 5. Set [Events displayed] to [Presence sensor] and click OK. Set to [Presence sensor] Click 6. “Presence Sensor” is displayed for the set time when returned to Live and the presence sensor is detecting.

  • Page 40: To Record Audio When Recording A Video

    4-3. To record audio when recording a video Perform following setting before performing “3-3. Changing the setting of the camera . ” 1. Click Setting in the main menu. Click 2. Click Audio Video / Audio, place a check mark in [Enable] for ✔...
  • Page 41 3. Place a check mark in the audio to be recorded in Edge Storage ✔ Action output and click OK. ✔ Select Click after setting Once above setting is completed, proceed to “3-3. Changing the setting of the camera . ”...

  • Page 42: Unsure Of Administrator User Name And/Or Password

    4-4. Unsure of administrator user name and/or password It is possible to return the administrator user name and password back to the initial setting by performing the initialization of the camera when you have forgotten the administrator user name and/or password. Read the “Initializing this unit”...

  • Page 43: How To Confirm The Software Version Of The Camera

    4-5. How to confirm the software version of the camera There are 2 methods to confirm the software of the camera. 1. Confirm with “SNC toolbox” Software version of all the cameras connected can be confirmed simultaneously. ① Start the “SNC toolbox.” (Refer to P. 4 for detail) ②...

  • Page 44: To Restore The Video Stopped On The Browser

    4-6. To restore the video stopped on the browser This section describes how to restore the video from the camera on the Web browser due to an error such as connection timeout. 1. Click the Refresh button on the Web browser. * If the video does not appear even after refreshing, turn off the power of the camera and turn it on again to reconnect the camera.
