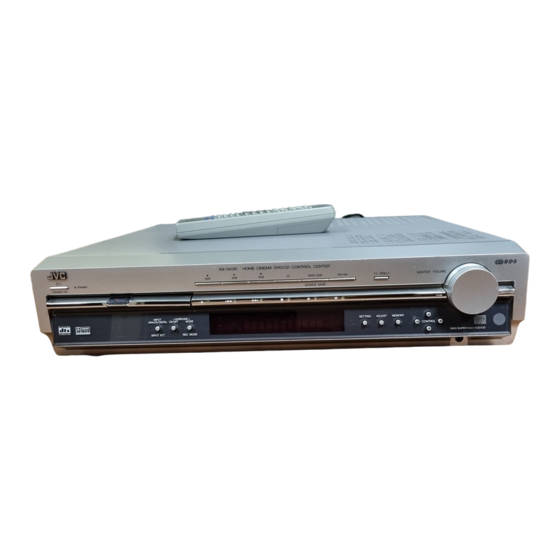

HOME CINEMA DVD/CD CONTROL CENTER
RX-DV3RSL
REMOTE CONTROL RM-SRXDV3R
STANDBY/ON
STB
VCR
TV
AUDIO
TV
TAPE
CDR
FM/AM
TV DIRECT
STB
VCR
DVD
(
9
TV/VIDEO
REW/
TUNING
/FF
REPEAT
SLEEP
FM MODE
STROBE
TV/STB CH
SOUND
EFFECT
CENTER
1
2
3
ANALOG
/DIGITAL
TEST
REAR·L
4
5
6
INPUT
AUDIO
SURR ON/OFF
REAR·R
7
8
9
SURR MODE
– SUBWOOFER +
SUBTITLE
10/0
+10
VFP
100+
TV RETURN
PROGRESSIVE
DIMMER
ANGLE
+
+
MUTING
TV VOL
VOLUME
ZOOM
–
–
TA/NEWS/INFO
DIGEST
TOP MENU
MENU
(
PTY
PTY SEARCH
PTY
9
CHOICE
ENTER
ON SCREEN
RETURN
DISPLAY
HOME CINEMA
DVD/CD CONTROL CENTER
STANDBY
STANDBY/ON
INPUT
SURROUND
ANALOG/DIGITAL
ON/OFF
MODE
INPUT ATT.
REC MODE
INSTRUCTIONS
R X - D V 3 R H O M E C I N E M A D V D / C D C O N T R O L C E N T E R
DVD
STB
VCR
TV
TAPE/CDR
FM/AM
SOURCE NAME
SETTING
MASTER VOLUME
TV DIRECT
ADJUST
MEMORY
COMPACT
CONTROL
SUPER VIDEO
DVD/SUPER VCD/VCD/CD
LVT0875-009A
[B]
Advertisement
Table of Contents
Related Manuals for JVC RX-DV3RSL
Summary of Contents for JVC RX-DV3RSL

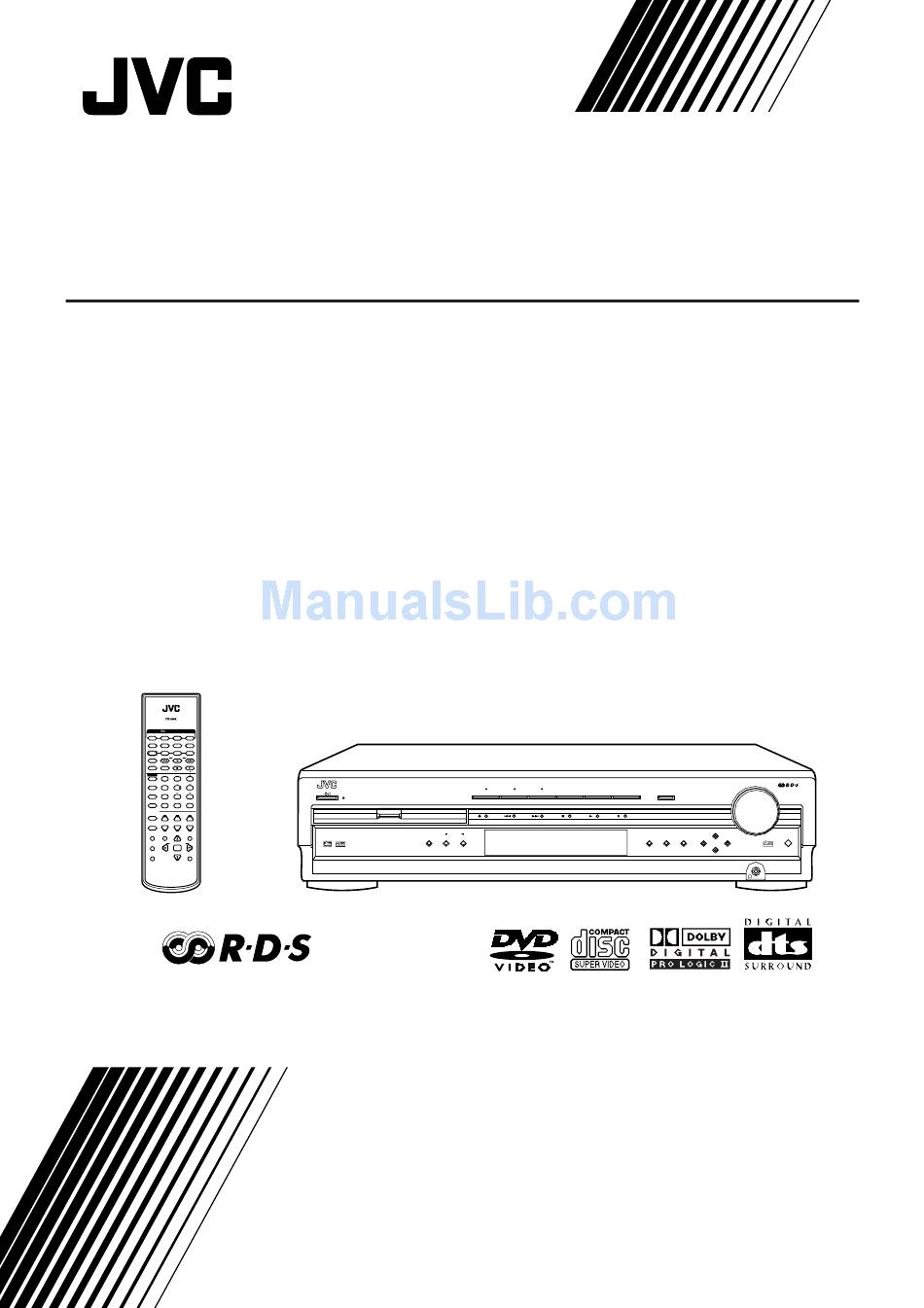

- Page 1 HOME CINEMA DVD/CD CONTROL CENTER RX-DV3RSL REMOTE CONTROL RM-SRXDV3R STANDBY/ON AUDIO TAPE FM/AM TV DIRECT TV/VIDEO REW/ TUNING REPEAT SLEEP FM MODE STROBE TV/STB CH SOUND EFFECT CENTER ANALOG /DIGITAL TEST REAR·L INPUT AUDIO SURR ON/OFF REAR·R SURR MODE – SUBWOOFER +...
