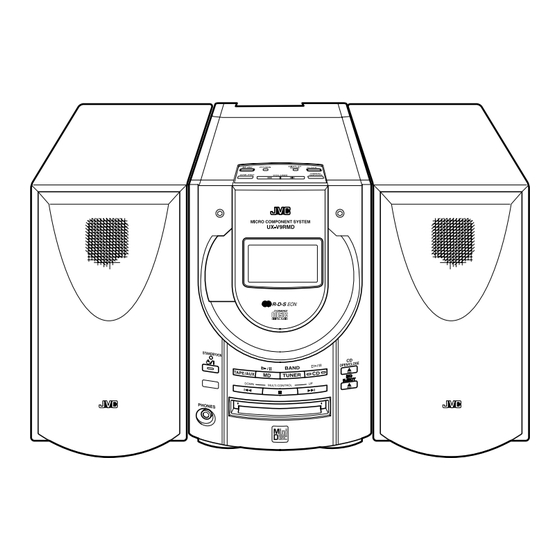

MICRO COMPONENT SYSTEM
MIKRO-KOMPONENTEN-SYSTEM
SYSTEME DE MICROCOMPOSANTS
MIKRO KOMPONENTENSYSTEEM
SISTEMAS DE MICROCOMPONENTES
SISTEMA A MICROCOMPONENTI
UX-V9RMD
REMOTE CONTROL RM-RXUV
9
RMD
DIMMER
SLEEP
DISPLAY
FM MODE TAPE / AUX
AUTO
AHB PRO
PRESET
CD
PROGRAM RANDOM
REPEAT
BASS
TREBLE
CANCEL
EDIT
CHARA
/ TITLE
UP
SET
DOWN
PTY/ EON
DISPLAY MODE
TUNER
MD
CD
BAND
VOLUME
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
MANUAL DE INSTRUCCIONES
ISTRUZIONI
For Customer Use:
Enter below the Model No. and Serial No.
which are located either on the rear, bot-
tom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LVT0246-001A
[E]
Advertisement
Table of Contents
Related Manuals for JVC RM-RXUV9RMD
Summary of Contents for JVC RM-RXUV9RMD
-
Page 1: Micro Component System
MICRO COMPONENT SYSTEM MIKRO-KOMPONENTEN-SYSTEM SYSTEME DE MICROCOMPOSANTS MIKRO KOMPONENTENSYSTEEM SISTEMAS DE MICROCOMPONENTES SISTEMA A MICROCOMPONENTI UX-V9RMD REMOTE CONTROL RM-RXUV DIMMER SLEEP DISPLAY FM MODE TAPE / AUX AUTO AHB PRO PRESET PROGRAM RANDOM REPEAT BASS TREBLE CANCEL EDIT CHARA / TITLE DOWN PTY/ EON DISPLAY MODE... - Page 2 2. Ne pas exposer l’appareil à la pluie ni à l’humidité. Per l’Italia: "Si dichiara che il questo prodotto di marca JVC è conforme alle prescrizioni del Decreto Ministeriale n.548 del 28/08/95 pubbli- cato sulla Gazzetta Ufficiale della Repubblica Italiana n.301 del 28/12/95."...
- Page 3 Caution: Proper Ventilation To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1 Front: No obstructions and open spacing. 2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.
-
Page 4: Laser Product
IMPORTANT FOR LASER PRODUCTS/ WICHTIGER HINWEIS FÜR LASER-PRODUKTE / IMPORTANT POUR LES PRODUITS LASER / BELANGRIJKE INFORMATIE VOOR LASERPRODUKTEN / IMPORTANTE PARA LOS PRODUCTOS LÁSER / IMPORTANTE PER I PRO- DOTTI LASER REPRODUCTION OF LABELS/ANBRINGUNGSORTE FÜR LASER-PRODUKTE/REPRODUCTION DES ETIQUETTES/VERKLARING VAN DE LABELS/REPRODUCCIÓN DE ETIQUETAS/RIPRODUZIONE DELLE ETICHETTE 1 CLASSIFICATION LABEL, PLACED ON EXTERIOR SURFACE 1 KLASSIFIZIERUNGSHINWEIS BEFINDET SICH AUF DER AUS-... -
Page 5: Table Of Contents
The controls and operations have been redesigned to make them very easy to use, freeing you to just enjoy the music. • With JVC’s COMPU PLAY you can turn on the System and automatically start the Radio, CD Player, or MD Player with a single touch. -
Page 6: Getting Started
Getting Started Accessories Make sure that you have all of the following items, which are supplied with the System. Power Cord (1) AM Loop Antenna (1) Remote Control (1) Batteries (2) FM Wire Antenna (1) If any of these items are missing, contact your dealer immediately. How To Put Batteries In the Remote Control Match the polarity (+ and –) on the batteries with the + and –... -
Page 7: Connecting The Fm Antenna
CAUTION: Make all connections before plugging the System into an AC power outlet. Connecting the FM Antenna Rear Panel of the Unit Connecting the AM (MW/LW) Antenna Rear Panel of the Unit CAUTION: To avoid noise, keep antennas away from the System, the connecting cord and the AC power cord. -
Page 8: Connecting The Speakers
CAUTION: Make all connections before plugging the System into an AC power outlet. Connecting the Speakers For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the System. 1. Open each of the terminals and insert the speaker wires firmly, then close the terminals. 2. -
Page 9: Connecting The Ac Power Cord
COMPU PLAY JVC’s COMPU PLAY feature lets you control the most frequently used System functions with a single touch. With One Touch Operation you can play a CD, an MD, or turn on the radio with a single press of the play button for that function. One Touch Operation turns the power on for you, then starts the function you have specified. -
Page 10: Common Operations
Common Operations REMOTE CONTROL RM-RXUV DIMMER SLEEP DIMMER DISPLAY FM MODE TAPE / AUX DISPLAY AUTO PRESET AHB PRO AHB PRO PROGRAM RANDOM REPEAT BASS TREBLE CANCEL BASS TREBLE EDIT CHARA / TITLE DOWN PTY/ EON DISPLAY MODE TUNER BAND VOLUME+,–... -
Page 11: Reinforcing The Bass Sound
Reinforcing the Bass Sound (AHB PRO) You can reinforce the bass sound to maintain rich, full bass at low volume (you can use this effect only for playback): To get the effect, press the AHB (Active Hyper Bass) PRO but- ton. -
Page 12: Using The Tuner
Using the Tuner REMOTE CONTROL RM-RXUV DIMMER SLEEP DISPLAY FM MODE TAPE / AUX FM MODE AUTO AHB PRO PRESET AUTO PRESET PROGRAM RANDOM REPEAT BASS TREBLE CANCEL EDIT / TITLE CHARA < > PTY/EON DISPLAY MODE DOWN PTY/ EON DISPLAY MODE DOWN TUNER... -
Page 13: Receiving Fm Stations With Rds
4. Press the UP, DOWN, >, or < button within 5 seconds to select the preset number. UP or > button: Increases the preset number by 1. DOWN or < button: Decreases the preset number by 1. • When the > or < button is kept pressing, the preset number changes rapidly. - Page 14 On characters displayed When the display shows PS, PTY or RT signals: • The display cannot show accented letters; For example, “A” may represent accented “A’s” like “Á, Â, Ã, À, Ä and Å”. (see below) To search for a programme by PTY codes ————————————————...
- Page 15 To temporarily switch to a broadcast programme of your choice ————— EON (Enhanced Other Networks) is another convenient RDS ser- vice that allows this unit to switch temporarily to a broadcast pro- gramme of your choice (NEWS, TA or INFO) from the currently selected station, except if you are listening to a non-RDS station (all AM (MW/LW) stations or some FM stations).
-
Page 16: Using The Cd Player
Using the CD Player REMOTE CONTROL RM-RXUV DIMMER SLEEP DISPLAY FM MODE TAPE / AUX AUTO AHB PRO PRESET CD 0 PROGRAM RANDOM REPEAT PROGRAM REPEAT RANDOM BASS TREBLE CANCEL CANCEL EDIT / TITLE CHARA < > DOWN PTY/ EON DISPLAY MODE DOWN TUNER... -
Page 17: To Modify The Program
To stop playing the CD, press the button. The following information for the CD is displayed. Total track number Total playback time To stop playing and remove the CD, press the CD OPEN/ CLOSE button on the Unit or CD button on the Remote Con- trol to open the CD cover. -
Page 18: Using The Md Player (Listening To An Md)
Using the MD Player REMOTE CONTROL RM-RXUV DIMMER SLEEP DISPLAY FM MODE TAPE / AUX DISPLAY AUTO AHB PRO PRESET PROGRAM RANDOM REPEAT PROGRAM REPEAT RANDOM BASS TREBLE CANCEL CANCEL EDIT / TITLE CHARA < > DOWN DOWN PTY/ EON DISPLAY MODE TUNER BAND... - Page 19 To Select a Track or Passage within a Track —————————————— ¢ During playback, press the (< or >) button to select the track you want. The selected track starts playing. ¢ • Press the button once to skip to the beginning of the next track.
-
Page 20: Recording Onto An Md
Recording onto an MD REMOTE CONTROL RM-RXUV DIMMER SLEEP DISPLAY FM MODE TAPE / AUX DISPLAY AUTO AHB PRO PRESET PROGRAM RANDOM REPEAT BASS TREBLE CANCEL EDIT / TITLE CHARA DOWN PTY/ EON DISPLAY MODE TUNER BAND VOLUME When the System is in use, the display shows oth- er items as well. -
Page 21: One Track Recording
• You can also start recording by pressing the MD REC but- ton and then the MD #¥8 button. When you record a signal from a DAT through the AUX2 ter- minal, two track numbers (track marks) are added for one track. This is not fault. -
Page 22: Using The Md Player (Editing)
Using the MD Player (Editing) In addition to its recording and play functions, the MD Player comes with editing functions. You can divide, join, move, or erase the recorded tracks in the MD as required. Also, you can give a disc title to the MD and track titles to the tracks in the MD. Dividing tracks (DIVIDE function) This involves adding a track mark (see Note) at some point during the track which is to be made into the start of an additional track so... -
Page 23: Dividing Tracks
Dividing Tracks (DIVIDE Function) Use the Remote Control to carry out this function. 1. Insert an MD to be edited with its label side 2. Press the MD #8 button and then 7 button to set the function to MD. The track numbers and total playback time are displayed. -
Page 24: Join Function
Joining Tracks (JOIN Function) Use the Remote Control to carry out this function. 1. Insert an MD to be edited with its label side up. 2. Press the MD #8 button. • You can also perform this function in Stop mode. 3. -
Page 25: All Erase Function
2. Press the MD #8 button. • You can also perform this function in Stop mode. 3. Press the EDIT/TITLE button until “ERASE ?” is displayed. The “EDIT” indicator appears on the display. EDIT DIVIDE JOIN MOVE /TITLE DISC TITLE* TITLE *: Displayed in Stop mode only. - Page 26 5. Input a preferred title (up to 64 charac- ters). Use the following buttons to input a title. [Title editing buttons and their functions] (see below) Button Function CHARA Changes the type of characters to be input as fol- lows. Upper-case letters and symbols ≠...
-
Page 27: Using External Equipments
Using External Equipments REMOTE CONTROL RM-RXUV DIMMER DISPLAY AHB PRO PROGRAM RANDOM BASS EDIT / TITLE PTY/ EON Listening to External Equipment You can listen to external equipment. First make sure that the external equipment is properly connect- ed to the System. (See pages 4-5.) 1. -
Page 28: Using The Timers
Using the Timers REMOTE CONTROL RM-RXUV DIMMER SLEEP SLEEP DISPLAY FM MODE TAPE / AUX AUTO AHB PRO PRESET PROGRAM RANDOM REPEAT BASS TREBLE CANCEL EDIT / TITLE CHARA DOWN PTY/ EON DISPLAY MODE TUNER BAND VOLUME The timers let you control listening and recording functions auto- matically. -
Page 29: Setting The Sleep Timer
5. Setting the volume level. 1. Press the TIMER/SNOOZE button on the Unit. The volume level set by the previous timer setting blinks on the display. ¢ 2. Press the button to select the volume level. : The current volume level will be used. 0 to 50: When the timer is turned on, the Volume will be automatically set to the selected level. -
Page 30: Information On Mds (Minidiscs)
Information on MDs (Minidiscs) This is a new digital audio disc format: it has a diameter of 64 mm and enables up to 80 minutes of playback and recording. The cartridge The diameter of the disc itself is 64 mm, smaller than a CD single. The disc sits inside a 68 72 mm cartridge, which also being pocket size, makes minidiscs extremely handy for carrying and storage. -
Page 31: Md (Minidisc) Messages
MD (Minidisc) Messages Message BLANK DISC CANNOT JOIN DISC ERROR DISC FULL DISC PROTECTED EMERGENCY STOP MD NO DISC NON AUDIO CANNOT COPY PLAYBACK MD TRACK PROTECTED SCMS CANNOT COPY DIGITAL IN UNLOCK LOAD ERROR Minidisc Limitations The minidisc records information in an original format that differs from that of conventional cassette tapes or DATs. Since there are some lim- itations with this recording format, the following types of conditions may arise. -
Page 32: Rules Of Digital Dubbing
Rules of Digital Dubbing The following rules regarding copyright exist for dubbing to MDs from CDs or DATs through digital terminals. SCMS (Serial Copy Management System) Minidiscs can record clear sound with low loss of quality from CDs or DATs through each component’s digital input/output terminal. However, minidiscs are set up so that a disc recorded in this way cannot be recorded onto another minidisc through digital input/output terminals. -
Page 33: Troubleshooting
Troubleshooting • If you are having a problem with your System, check this list for a possible solution before calling for service. • If you cannot solve the problem from the hints given here, or the System has been physically damaged, call a qualified person, such as your dealer, for service. -
Page 34: Specifications
Specifications Amplifier Output Power 34 W (17 W + 17 W) at 4 ohms (Max.) Input Sensitivity/Impedance (1 kHz) LINE IN (AUX1) 500 mV/65 kohms Optical In –24 dBm - –15 dBm Output Sensitivity/Impedance (1 kHz) LINE OUT 500 mV/4.3 kohms Speaker terminals 4 - 16 ohms CD Player Signal-To-Noise Ratio 90 dB... - Page 35 VICTOR COMPANY OF JAPAN, LIMITED EN, GE, FR, NL, SP, IT 0599MNMCREJSC...
