NOTE :
Non-serviceable items with no part number and no
description are not stocked because they are not
required for routine service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.

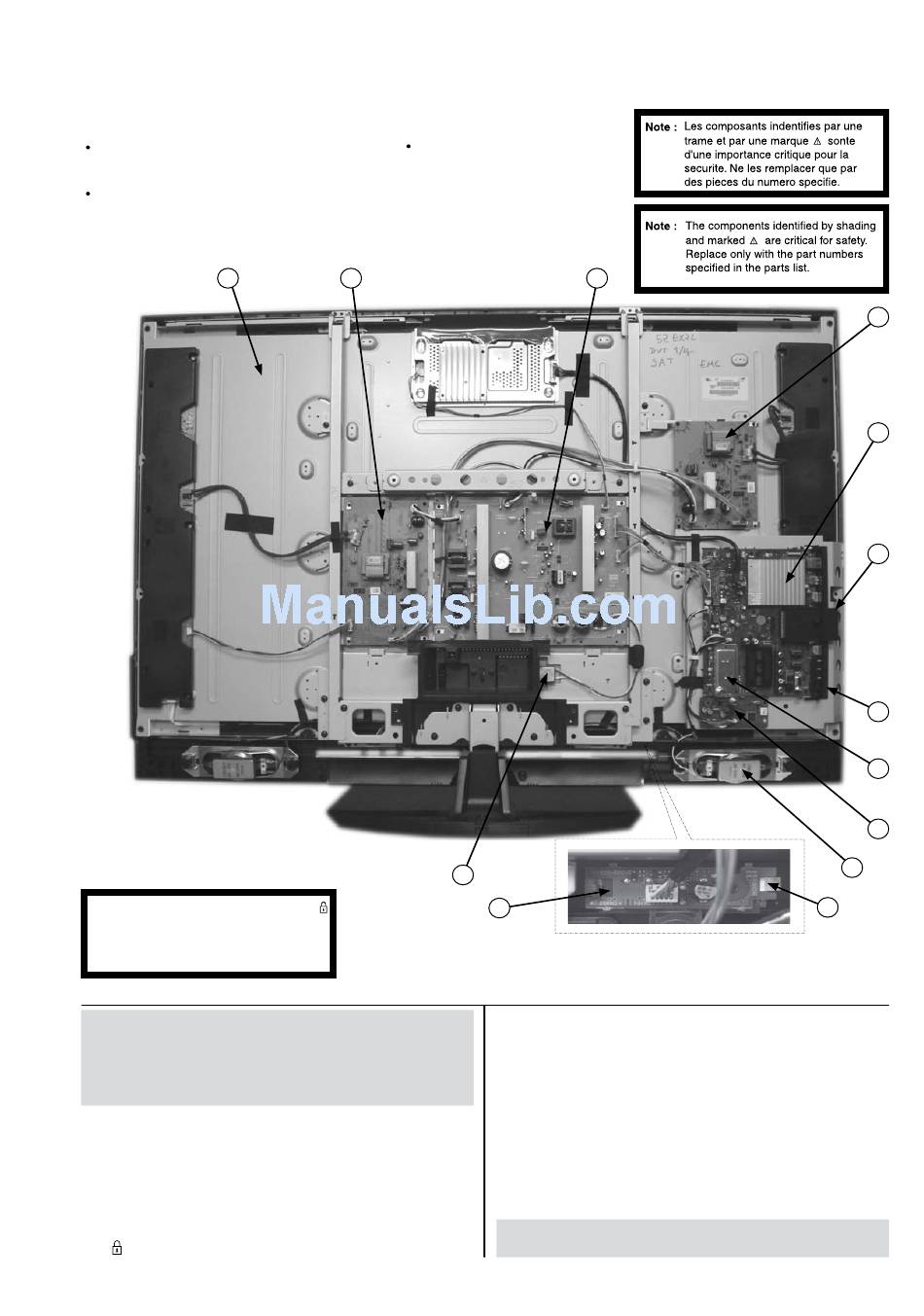

5-1. CHASSIS

Note : The components identified by mark
contain confidential information.
Strictly follow the instructions when
ever the components are repaired
and/or replaced.
REF.NO. PART.NO
1 £ 1-802-886-11 LCD PANEL (32 INCH FHD TFT) 32 inches
£ 1-802-885-11 LCD PANEL (37 INCH FHD TFT) 37 inches
£ 1-802-877-21 LCD PANEL (40 INCH FHD TFT) 40 inches
£ 1-802-876-12 LCD PANEL (46 INCH FHD TFT) 46 inches
£ 1-802-875-13 LCD PANEL (52 INCH FHD TFT) 52 inches
2 A-1663-196-A D5 BOARD, COMPLETE
Ver 2.0 3 1-474-152-13 POWER UNIT(G2)
1-474-162-13 POWER UNIT(G4)
A-1660-720-A IP1 BOARD, COMPLETE
A-1660-728-A IP2 BOARD, COMPLETE
1-487-340-11 POWER UNIT(G5)
4 A-1663-200-A D6 BOARD, COMPLETE
5 A-1743-179-A BA BOARD, COMPLETE

EXPLODED VIEWS

1 2
DESCRIPTION REMARK
52 inches
32 inches
37 inches
40 inches
46 inches
52 inches
52 inches
SECTION 5
Items marked "*" are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.
13
12
REF.NO. PART.NO
6 *4-136-306-01 CARD, DUMMY
7 4-132-225-02 BRACKET, SIDE JACK(STD)
8 8-597-702-00 UNIVERSAL SIL-TU SUT-HE101T
9 A-1742-442-A TUS BOARD, COMPLETE
10 1-858-301-11 LOUDSPEAKER
1-858-184-11 LOUDSPEAKER
1-858-169-11 LOUDSPEAKER
1-858-170-11 LOUDSPEAKER
1-858-183-11 LOUDSPEAKER
11 4-123-491-01 GUIDE, IR (B)
12 A-1704-202-A HSN BOARD, COMPLETE
13 £ 1-822-617-11 AC INLET FILTER
£ 1-822-622-11 AC INLET FILTER
- 53 -
3
DESCRIPTION
4
5
6
7
8
9
10
11
REMARK
32 inches
37 inches
40 inches
46 inches
52 inches
40/46 inches
52 inches
