Yamaha RX-V395 RDS Service Manual page 7

VIDEO SECTION
Video Signal Level . . . . . . . . . . . . . . . . . . . . . . 1 Vp-p/75 ohms
Maximum Input Level . . . . . . . . . . . . . . . . . . . 1.5 Vp-p or more
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . 50 dB or more
Monitor Output Frequency Response
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Hz to 10 MHz, –3dB
FM SECTION
Tuning Range
[U.S.A. and Canada models] . . . . . . . . . . . . 87.5 to 107.9 MHz
[China and General models]
(frequency step 100 kHz) . . . . . . . . . . . . 87.5 to 108.0 MHz
(frequency step 50 kHz) . . . . . . . . . . . 87.50 to 108.00 MHz
[Australia, U.K., and Europe models] . . . . 87.50 to 108.00 MHz
50 dB Quieting Sensitivity (S/N 50 dB, 1 kHz, 100% Mod.)
[U.S.A., Canada, China and General models only]
IHF, Mono . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.6 µV
IHF, Stereo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 µV
Usable Sensitivity (75 ohms)
[Australia, U.K. and Europe models only]
DIN, Mono (S/N 26 dB) . . . . . . . . . . . . . . . . . . . . . . . . 0.9 µV
DIN, Stereo (S/N 46 dB) . . . . . . . . . . . . . . . . . . . . . . . . 28 µV
Alternate Channel Selectivity (± 400 kHz)
[U.S.A., Canada, China and General models only] . . . . . . 75 dB
Selectivity (two signals, 40 kHz Dev. ± 300 kHz)
[Australia, U.K. and Europe models only] . . . . . . . . . . . . . 55 dB
Signal-to-Noise Ratio (DIN-Weighted, 40 kHz Dev.)
[Australia, U.K. and Europe models only]
Mono/Stereo . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 dB/69 dB
Signal-to Noise Ratio (IHF)
(U.S.A., Canada, General, China models only)
Mono/stereo . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 dB/75 dB
Harmonic Distortion
Mono/Stereo (1 kHz) . . . . . . . . . . . . . . . . . . . . . . . 0.1%/0.2%
Stereo Separation (1 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . 48 dB
Frequency Response
(20 Hz to 15 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . 0 ± 1 dB
Output Level
[Australia, U.K. and Europe models]
(40 kHz Dev. 1 kHz) . . . . . . . . . . . . . . . . . . . . . . . . 550 mV
[U.S.A., Canada, China and General models]
(100% mod. 1 kHz) . . . . . . . . . . . . . . . . . . . . . . . . 550 mV
Antenna Input . . . . . . . . . . . . . . . . . . . . . . . 75 ohms unbalanced
AM SECTION
Tuning Range
[U.S.A. and Canada models] . . . . . . . . . . . . . . 530 to 1710 kHz
[China and General models]
(frequency step 10 kHz) . . . . . . . . . . . . . . . 530 to 1710 kHz
(frequency step 9 kHz) . . . . . . . . . . . . . . . . 531 to 1611 kHz
[Australia, U.K. and Europe models] . . . . . . . . 531 to 1611 kHz
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 µV/m
Usable Sensitivity
RX-V395/RDS HTR5130/RDS
Output Level
(30% mod. 1 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . 150 mV
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 dB
Antenna Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . Loop antenna
GENERAL
Power Supply
[U.K. and Europe models] . . . . . . . . . . . . . . . . AC 230 V, 50 Hz
[U.S.A. and Canada models] . . . . . . . . . . . . . . AC 120 V, 60 Hz
[Australia model] . . . . . . . . . . . . . . . . . . . . . . . . AC 240 V, 50 Hz
[China model] . . . . . . . . . . . . . . . . . . . . . . . . . . AC 220 V, 50 Hz
[Genaral model] . . . . . . . . . . . AC 110/120/220/240 V, 50/60 Hz
Power Consumption
[U.K., Europe, China, Australia and Genaral models] . . . 260 W
[U.S.A. model] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240 W
[Canada model] . . . . . . . . . . . . . . . . . . . . . . . . . . 260 W/340 VA
Maximum Power Consumption (10% THD, When 5 channels are
driven)
[General model only] . . . . . . . . . . . . . . . . . . . . . . . . . . . . 630 W
AC Outlets
2 SWITCHED OUTLETS
[Europe, Canada, U.S.A., China and General models]
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 W max. total
1 SWITCHED OUTLET
[U.K. and Australia models]
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 W max. total
Dimensions (W x H x D) . . . . . . . . . . . . . . 435 x 151 x 391 mm
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.5 kg (23 lbs. 2 oz.)
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . AM loop antenna
75-ohm/300-ohm antenna adapter [U.K. model only]
Antenna adapter [U.S.A. and Canada models only]
* Specifications subject to change without notice.

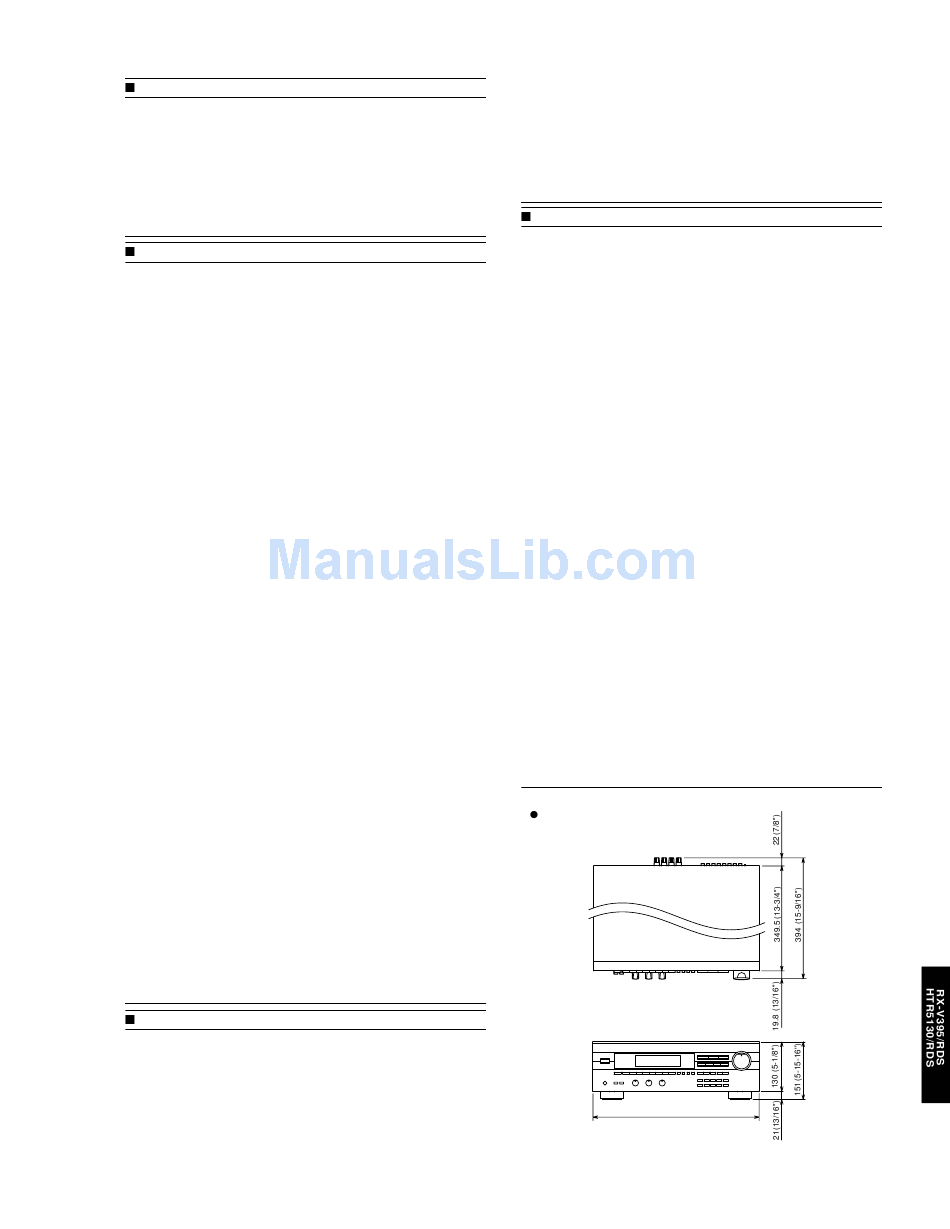

DIMENSIONS
435 (17-1/8'')
(17-1/8" x 5-15/16" x 15-3/8")
Indoor FM antenna
Remote Control Transmitter
Battery
Units : mm (inch)
6
