Summary of Contents for Bose Soundtouch Stereo JC

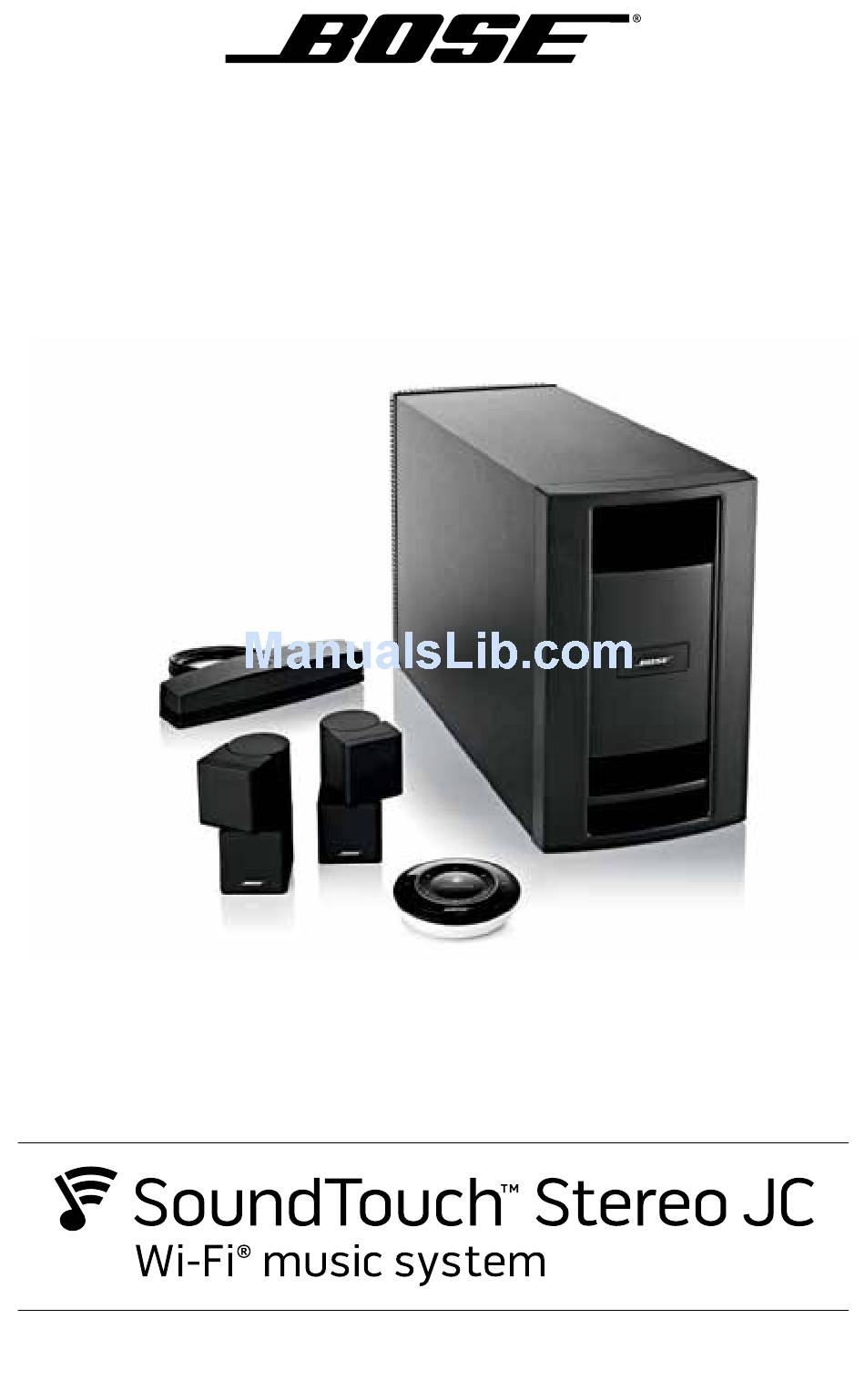

- Page 1 Owner's Guide...
-
Page 2: Safety Information
• The speaker wire and interconnect cables included with the system are not approved for in-wall installation. Please check your local building codes for the correct type of wire and cable required for in-wall installation. • Changes or modifications not expressly approved by Bose Corporation could void the user’s authority to operate this equipment. -
Page 3: Important Safety Instructions
• Consult the dealer or an experienced radio/TV technician for help. Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and all other applicable EU directive requirements. The complete Declaration of Conformity can be found at www.Bose.com/compliance. - Page 4 Windows is a registered trademark of Microsoft Corporation in the United States and other countries. A personal computer is required for system setup. A home Wi-Fi network and Internet access are required. © 2013 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without prior written permission.
-
Page 5: Table Of Contents
Contents Introducing SoundTouch™ from Bose ® Key Benefits ....................Introduction About your SoundTouch™ music system ............System features ..................Setting up the System Unpacking the system ..................Adding the system to your Wi-Fi network ........... ® Installing the SoundTouch™ app ............. -
Page 6: Advanced Features
Contents ADAPTiQ ® Performing the ADAPTiQ calibration ............® Advanced Features Alternate setup method ................... Disabling Wi-Fi capability ................® Re-enabling Wi-Fi capability ................Care and Maintenance Adding a Wi-Fi network ................... ® Troubleshooting ....................Cleaning ....................... 28 Customer service ....................28 Limited warranty information ................. -
Page 7: Introducing Soundtouch™ From Bose
™ powerful control. • Simply add additional systems at any time for a multi-room listening experience. • Wide selection of Bose audio systems lets you choose the right solution for any ® room or outdoor space. -
Page 8: Introduction
Introduction About your SoundTouch™ music system The SoundTouch Stereo JC Wi-Fi music system provides an elegant way to bring ™ ® high quality sound wirelessly into any room. Use the free SoundTouch app to set ™ up and control your system. See “Adding the system to your Wi-Fi network” on page 10. -
Page 9: Setting Up The System
Contact Bose customer service for assistance. Note: If part of the system is damaged, do not use it. Contact your authorized Bose dealer or Bose customer service. Please refer to the contact list in the carton for contact information. -
Page 10: Adding The System To Your Wi-Fi
EXPLORE > SETTINGS > Systems > ADD SYSTEM to add another system. Installing the SoundTouch™ app From a computer that is on your Wi-Fi network, open a browser and go to: http://www.Bose.com/soundtouch_app Tip: If you want SoundTouch to play your iTunes or Windows Media Player ™... -
Page 11: Connecting The System To Your Home Wi-Fi
Wi-Fi network. The app instructs you to connect the system. Place the Acoustimass module on a sturdy surface, close to an AC (mains) ® power source. Connect the wireless adapter to the Bose link connector on the back of the ® Acoustimass module. - Page 12 Setting up the System When prompted by the app, plug the small end of the USB cable into the SETUP A connector on the SoundTouch wireless adapter. ™ SoundTouch wireless ™ adapter SETUP A connector Plug the other end of the USB cable into a USB port on your computer. The app instructs you to enter your network credentials.
-
Page 13: Placing The Speakers
® To purchase wall mounting brackets or floor stands, contact your local Bose dealer or visit www.Bose.com. Place the Jewel Cube speakers on a sturdy, level surface; one to your left and ®... - Page 14 Setting up the System CAUTIONS: • Do not stand the module on its front or back end. • Do not put electronic media such as video or audio tapes on or next to the module for long periods of time. The magnetic field surrounding the module may erase some or all of the recorded material.
-
Page 15: Connect The Speakers
Setting up the System Connect the speakers What you need: Acoustimass ® Speaker Module cables Note: See “Appendix A: Acoustimass connector panel” on page 30 for details. ® Lay the Acoustimass module on its side. Insert the left (L, gray) speaker ®... -
Page 16: Placing The Soundtouch™ Wireless Adapter
Setting up the System Placing the SoundTouch™ wireless adapter The SoundTouch wireless adapter provides the network connection for the ™ SoundTouch Stereo JC Wi-Fi music system. It must remain in range of the Wi-Fi ™ ® router, and within 70 feet (21 m) of the SoundTouch controller. -
Page 17: Controlling The System Using The App
Controlling the System using the App Using the SoundTouch ™ The SoundTouch app is a software application that enables you to control the ™ system from your computer, smartphone, or tablet. Using the app, your smart device acts as a rich remote for your SoundTouch system. -
Page 18: Downloading The App For Your Mobile Device
Controlling the System using the App Downloading the app for your mobile device Bose offers a free mobile version of the SoundTouch app so you can control ® ™ the system from your smartphone or tablet. To install the app for your smartphone or tablet: •... -
Page 19: Using The System
Using the System Playing music with the SoundTouch™ controller During the setup process, you were prompted to connect the SoundTouch ™ controller to the system. If your SoundTouch controller is not connected, launch ™ app and click EXPLORE > SETTINGS > Systems, select your the SoundTouch ™... -
Page 20: Playing An Airplay Stream From An Airplay Compatible Device
System on and connected to Wi-Fi network Solid amber System in setup mode Blinking slow amber Disconnected from Wi-Fi network Blinking fast amber Firmware error - call Bose service Wi-Fi networking disabled or system connected to Ethernet 20 - English... -
Page 21: Personalizing Your Presets
Personalizing your Presets How presets work You can personalize six presets to your favorite streaming music services, stations, playlists, artists, albums, or songs from your music library. You can access your music at any time with a simple touch of a button on the SoundTouch controller. -
Page 22: Performing The Adaptiq ® Calibration
ADAPTiQ ® Performing the ADAPTiQ calibration ® What you need: SoundTouch controller ADAPTiQ headset ™ ® The ADAPTiQ audio calibration system customizes the sound of your system to ® the acoustics of your listening area. Note: You must complete SoundTouch setup before performing ADAPTiQ audio ™... - Page 23 ADAPTiQ® Press and release ADAPTiQ on the Acoustimass module connector panel. ® The system announces the selected language. ADAPTiQ button ® To select a different language, press ADAPTiQ repeatedly until you hear the language you want. Place the module in its final position and orientation (standing on its feet or laying on its side).
-
Page 24: Advanced Features Alternate Setup Method
Control button for 2-6 seconds. When the amber Wi-Fi indicator blinks, release the Control button. The Wi-Fi indicator should be solid amber. Wi-Fi indicator Control button On your computer, tablet or smartphone, activate Wi-Fi and join the Bose SoundTouch Wi-Fi network. ® ™... -
Page 25: Disabling Wi-Fi Capability
Advanced Features Disabling Wi-Fi capability ® The SoundTouch wireless adapter has built-in Wi-Fi capability that enables wire- ™ less connectivity and AirPlay. Press and hold the Control button on the back of the SoundTouch wireless ™ adapter for 6-10 seconds. When the Wi-Fi indicator turns off, release the Control button. -
Page 26: Care And Maintenance
™ Problem What to do Cannot complete • Make sure the SoundTouch wireless adapter is plugged into the ™ Bose link connector and the Acoustimass network setup module is connected ® ® to AC (mains) power. • Ensure network name and password are correct. - Page 27 There is no sound • Make sure the Acoustimass module is plugged into power, and ® the wireless adapter is connected to the Bose link connector. ® • Make sure the speaker cable plugs are pushed all the way into the Jewel Cube connectors.
-
Page 28: Cleaning
• Do not use solvents, chemicals, or sprays. • Do not allow liquids to spill or objects to drop into any openings. Customer service For additional help using the system, contact Bose customer service. See the contact list included with your SoundTouch Stereo JC Wi-Fi music system. -
Page 29: Technical Information
Technical Information SoundTouch™ Acoustimass Module ® Dimensions and Weight • 8.0 in. wide x 21.7 in. deep x 13.0 in. high (20.7 cm x 55.2 cm x 33.2 cm) • 26.2 lb (11.9 kg) Power rating 100-120/220-240V 50/60Hz 350W Power consumption (OFF mode): <=4W Temperature range 32°... -
Page 30: Appendices Appendix A: Acoustimass
Appendices Appendix A: Acoustimass connector panel ® The Acoustimass module connector panel includes speaker connectors, the ® ADAPTiQ calibration system connectors and button, and an power connector. ® Bose link ADAPTiQ ® connector button AC Power connector Left and ADAPTiQ... -
Page 31: Appendix B: Wall Mounting The Soundtouch™ Wireless Adapter
Appendices Appendix B: Wall mounting the SoundTouch™ wireless adapter Vertical Horizontal orientation orientation Connector Connector panel panel is is facing up. facing left. Follow these instructions to wall mount your SoundTouch wireless adapter. Install ™ either vertically with the connector panel facing left, or horizontally with the con- nector panel facing up. -
Page 32: Appendix C: Wall Mounting The Soundtouch™ Controller
Appendices Appendix C: Wall mounting the SoundTouch™ controller The wall mount bracket contains magnetic material. Please WARNING: contact your physician if you have any questions whether this might affect the operation of your implantable medical device. Follow these instructions to wall mount your SoundTouch controller. Use the ™ bracket as a template to mark the holes. Bracket Wallboard (anchors and screws supplied): Use a in. -
Page 33: Appendix D: Using A Desktop Computer To Connect To The Network
Acoustimass module to power, it reconnects to your Wi-Fi network. ® ® See “Placing the speakers” on page 13. AC power cord Bose link ® cable Acoustimass ® USB cable Note: Connect the USB cable to the SoundTouch wireless adapter only ™... - Page 34 ©2013 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM370788 Rev. 00...
