Dimplex EF12 Series Instructions

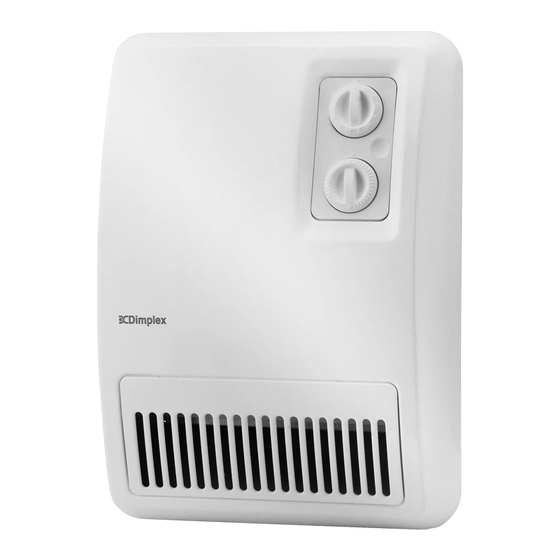

Deluxe Wall Mounted Fan Heater
EF12 Series

IMportant InStructIonS

Read all instructions before using this appliance and retain
for future reference.
1. The heater is splash proof and is suitable for operation
on a 208/240 Volt electrical supply.
2. The fan heater has a maximum load of 1.5 kW at 208
Volt and 2kW at 240 Volt, and is designed for permanent
wall mounting on the bracket supplied only.
3. The device is only suitable for room heating within
enclosed rooms.
4. Repairs and corrective measures may only be carried out
by a qualified technician.
5. Disconnect the power supply in the event of a fault (pull
out the device plug or switch off the fuse).
6. Observe the minimum clearances.
7. Children or persons who are not capable of operating
the device safely must not operate the heater. Ensure
that children do not play with the device or are left
unsupervised in the vicinity of the heater.
8. Do not operate the heater in rooms where highly
flammable substances are used (e.g. solvents, etc.).
9. Connecting lead must not be laid over the device.
10. Potential dangers can arise when the device switches on
automatically, e.g. devices which have been covered or
blocked by objects since they were last used can cause
fire.
11. The outer surfaces of the device, and in particular the air
outlet grid, become hot during operation.
12. Do not place aerosols or other containers susceptible to
heat in the direct air flow of the unit.
13. Do not cover the heater. To prevent overheating and
possible fire, do not place material or garments on the
heater, or obstruct the air inlet or outlet grille.

SavE tHESE InStructIonS

Installation Instructions

WarnInG: Do not install the heater immediately below a
fixed socket outlet.
WarnInG: If installing in a bathroom, heater must not
be installed in such a location that a person using a bath or
shower can reach the switches and other controls.
See Figure 1 for dimensions of the heater.
The heater must only be installed and operated on a
vertical wall as shown in Figure 2. Clearance from any
vertical surface must be no less than one (1) inch (25 mm),
clearance from any horizontal surface must be no less than
9¼ inches (230 mm) to the bottom of the heater and 12
inches (300 mm) to the top.
In addition, a minimum clearance of three (3) feet (900
mm) between inflammable objects e.g. curtains, towels or
heat-sensitive plastics, and the front of the unit must be
maintained.
Figure 1
11¾"
250 (300 mm)
300
Figure 2
>1"
(25 mm)
250
300

Electrical connection

Verify that the supply voltage is the same as that stated on
the heater (AC supply only).
This heater is designed for use on a 208/240V 60Hz AC
single-phase supply. Connection requires a supply wire
that must consist of two wires plus ground and have a rating
capable of handling all loads on the circuit.
Make all relevant electrical connections within an installed
junction box and ensure all wiring meets all local electrical
and building codes. Where local code requires the
disconnection of all ungrounded supply lines, a double pole
isolating switch must be fitted to facilitate isolation.
Connection to the heater should be made using the provided
fitted cable clamp assembly at the back of the heater to meet
local code requirements.
WarnInG: Always use a qualified and licensed
electrician for all wiring and electrical connections. Improper
wiring could lead to a fire hazard.
4¾"
(120 mm)
280
16"
405
(405 mm)
250
>12"
(300 mm)
280
405
>9¼"
250
(230 mm)
7209940100R02
