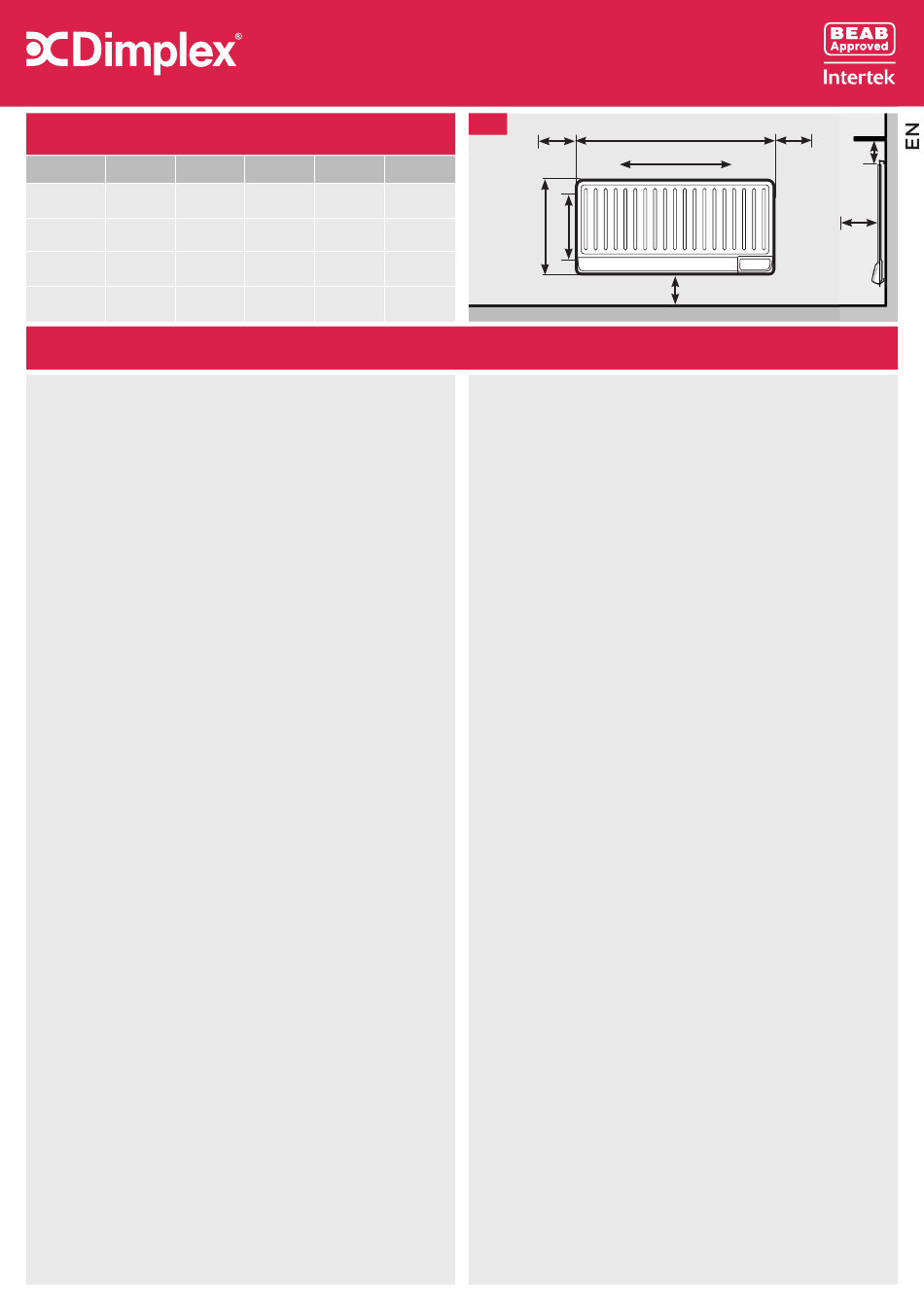

Dimensions
Model(s) Watt A
B075E 750 570mm
C100E 1000 840mm
D150E 1500 1105mm
E200E 2000 1373mm
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
IMPORTANT SAFETY ADVICE
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience or knowledge if they
have been given supervision or instruction
concerning the use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be kept
away unless continuously supervised. Children
aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that
it has been placed or installed in its intended
normal operating position and they have been
given supervision or instruction concerning
the use of the appliance in a safe way and
understand the hazards involved. Children
aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance
or perform user maintenance.
CAUTION - Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
WARNING - In order to avoid overheating, do
not cover the heater.
DO NOT use this heater in the immediate
surroundings of a bath, a shower or a swimming
pool.
CAUTION - In order to avoid a hazard due to
inadvertent resetting of the thermal cutout,
this appliance must not be supplied through
an external switching device, such as a timer
or connected to a
switched on and off by the utility
Installation and Operating Instructions
B C
659mm 405mm 527mm
659mm 675mm 527mm
659mm 940mm 527mm
659mm 1208mm 527mm
circuit that is regularly

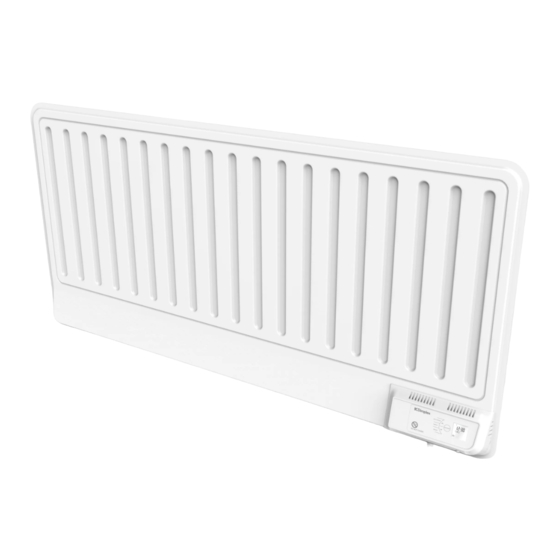

MK1 Oil-filled Radiator
Fig. 1
150mm
(min)
D
'B' 'D'
IMPORTANT - If the supply cord is damaged,
it must be replaced by the manufacturer, its
service agent or similarly qualified persons in
order to avoid a hazard.
This heater is filled with a precise quantity of
special oil. Repairs requiring the opening of
the oil container are only to be made by the
manufacturer or service agent who should be
contacted if there is an oil leak.
When scrapping the heater, follow the regulations
concerning the disposal of oil.
DO NOT COVER THE RADIATOR or place
material or garments on it, or obstruct the air
circulation around the radiator, for example with
the curtains or furniture, as this could cause
overheating and a fire risk.
The radiator complies with stringent safety
standards but to ensure efficient operation
SURFACES OF THE RADIATOR WILL BECOME
HOT AND CONTACT WITH THESE AREAS
SHOULD BE AVOIDED.
If young children, the aged or infirm are likely
to be left in the vicinity of the heater, we advise
that adequate precautions should be taken. We
recommend that a guard be fitted to ensure
contact with the heater is avoided and objects
cannot be inserted into the product.
This heater must not be located immediately
below a socket-outlet.
DO NOT use the radiator if it has been dropped or
damaged or the mains lead has been damaged,
until it has been examined by a qualified engineer.
DO NOT use the radiator if it develops an oil leak.
Unplug the radiator and contact your supplier or
our Customer Help Line.
(IP20)
300002936 Issue 1
'A'
'C'
75mm (min)
150mm
Shelf
(min)
305mm
(min)
Minimum
front
clearance
300mm
(min)
