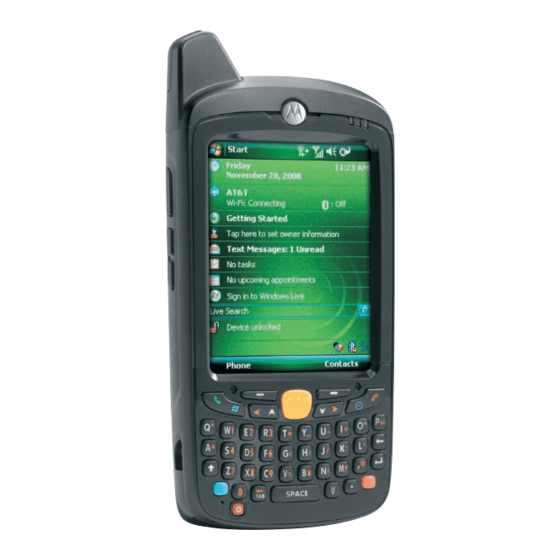

Motorola MC55 Quick Start Manual

MC55
Note: Remove protective shipping film that covers the touch screen, exit window and camera window
before using.
Quick Start Guide
12
1
2
3
4 (Note 1)
13
14
15
16
17
18
19
Note 1: To reset the MC55, press and hold the Power button for five (5) seconds.
9 3
3 3 3
2
10
2
2 4 3 3
4
11
5
1
1
4
1 Scan/Action Button
8 6
2 Up/Down Button
ok ok
3 Microphone
10
1 2 DEF 3 9
8 4 Power Button F1 ABC
F2 F3
TAB BKSP
5 I/O Connector GHI 4 5 MNO 6 10
7 F4 JKL F6
F5
SHIFT 9
6 Keypad PQRS 7 TUV 8 WXYZ
7 F7 F8 F9 ENT
7 Scan/Action Button
0 SPACE # 8
F10 ESC
8 Touch Screen
7
(with screen protector)
9 Scan/Decode LED
Alpha-Numeric Keypad
Numeric Keypad
10 Charging/Battery
Blue Key Blue Key
Status LED
6 11 Radio Status LED Use this key to access function keys shown on the keypad Use this key to access function keys shown on the keypad
12 Phone Speaker in blue. in blue.
13 Handstrap > Press the Blue key once to activate this state, followed by > Press the Blue key once to activate this state temporarily,
14 Battery another key. followed by another key.
15 Battery Latch > Press the Blue key twice to lock this state.
Orange Key
> Press the Blue key a third time to unlock.
16 Camera Flash (optional)
Use this key to access the secondary layer of characters. Orange Key
17 Camera (optional)
> Press the Orange key once to lock the keypad into Alpha
18 Exit Window Use this key to access the secondary layer of characters
state.
(see Data Capture Options) and actions.
19 Tether > Press the Orange key a second time to return to the normal
5 > Press the Orange key once to activate this state
20 Scan/Action Button state.
temporarily, followed by another key.
21 Action Button
> Press the Orange key twice to lock this state.
3
22 Stylus > Press the Orange key a third time to unlock.
23 Speaker 4 3 9
1
5 1 Talk
2 Navigation
3 Soft Key
2 4 Scan/Action Button
10 ok
5 End
6 Orange Key
2 7 Backlight
8 Blue Key
2 2
9 OK
10 Start Menu
23
PIM Keypad
22
Notifications
Scan/Decode LED: Radio Status LED:
Green: RF active
Red: Scanning active
21
Green: Good Decode
Scan/Decode
20 Charging/Battery Status
Charging/Battery Status LED:
Radio Status
Slow blinking amber: Battery charging
Solid amber: Fully charged
Fast blinking amber: Charging error
Insert the Battery
Charge the MC55
1. Insert the battery, bottom first, into the battery compartment.
2 Use the Single-slot USB cradle
2. Press down on the battery until
or Four-slot cradles (Charge Only
5
the battery latch snaps into
or Ethernet) to charge the battery
place.
in the MC55.
9
You can also charge a spare battery
using the Single-slot cradle.
2
6
1
Remove the Battery
Charging/Battery Status LED
Slow Blinking Amber = Charging
Solid Amber = Fully charged
Fast Blinking Amber = Charging error
1
1. Slide battery latch to the right.
The battery ejects slightly.
Charge the Battery
2. Grasp the battery and lift
from the MC55.
Use the Four-slot Battery Charger
to charge batteries separately.
2
Note: The 2400 mAh battery charges in less than four hours and the 3600 mAh battery charges in less
than six hours.
SIM Card Installation Install ActiveSync ®
1. Remove battery pack.
Download ActiveSync ® 4.5 or higher from http://www.microsoft.com
2. Lift rubber access door.
and follow the instructions to install ActiveSync onto the host computer.
3. Slide SIM card holder up to unlock.
4. Lift card holder.
5. Insert SIM card into SIM holder.
1
NOTE :
Communicate with Host
The proper position of the SIM card—the card connector (i.e.,
gold area) should be facing outward with the bevelled corner
facing away.
6. Lower the SIM card holder down.
7. Slide SIM card holder down to lock into place.
8. Close rubber access door.
9. Reinstall battery pack.
Enter Your PIN
After installing the SIM card activate your mobile service
connection. In most cases, SIM cards are preset with a PIN
(Personal Identity Number), provided by your service provider.
2
1. Press the Power button to turn on the MC55.
2. Tap Start > Phone.
3. Enter the PIN from your service provider.
4. Tap Enter.
Turn On the Phone Function
1. Launch the Wireless Manager application.
• On the Today screen, tap the Wireless Manager icon.
or
• On the Today screen, tap the signal icon and select
Wireless Manager. 3
2. On the Wireless Manager screen, tap Phone to turn on the
phone function. The signal icon (wireless off) changes to (not connected) and then to (searching)
indicating the MC55 is searching for a mobile connection. This may take a few seconds. The signal icon
then changes to once a good mobile connection is established.
Turn Off the Phone Function
1. Launch the Wireless Manager application.
•
On the Today screen, tap the Wireless Manager icon.
or
• On the Today screen, tap the signal icon and select Wireless Manager.
Create a Partnership
2. On the Wireless Manager screen, tap Phone to turn off phone function.
Follow the on-screen ActiveSync instructions to establish
a connection between the MC55 and the host computer.
