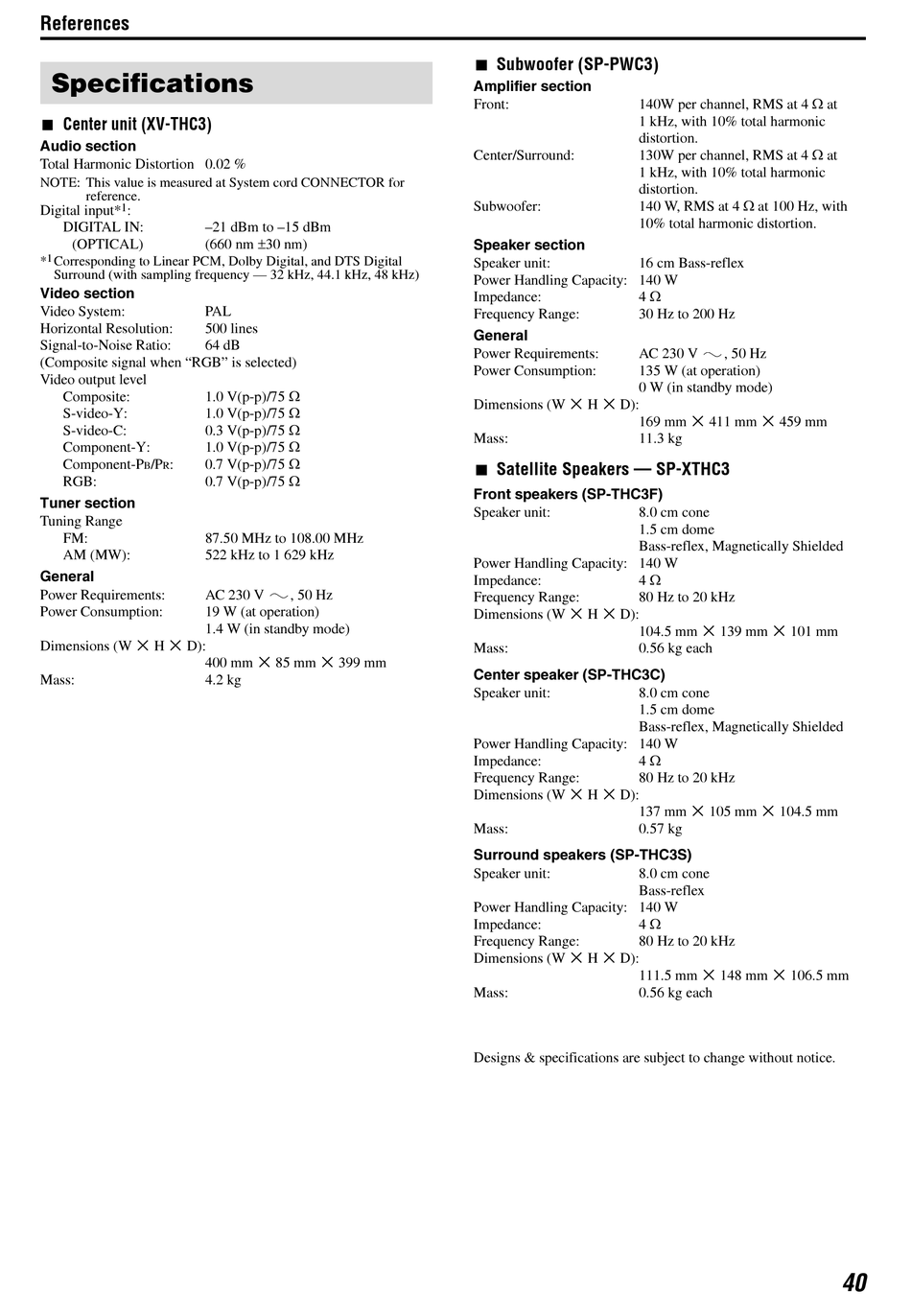

Specifications

7 Center unit (XV-THC3)
Audio section
Total Harmonic Distortion 0.02 %
NOTE: This value is measured at System cord CONNECTOR for
reference.
1
Digital input* :
DIGITAL IN: –21 dBm to –15 dBm
(660 nm E30 nm)
(OPTICAL)
1
* Corresponding to Linear PCM, Dolby Digital, and DTS Digital
Surround (with sampling frequency — 32 kHz, 44.1 kHz, 48 kHz)
Video section
Video System: PAL
Horizontal Resolution: 500 lines
Signal-to-Noise Ratio: 64 dB
(Composite signal when "RGB" is selected)
Video output level
1.0 V(p-p)/75 C
Composite:
1.0 V(p-p)/75 C
S-video-Y:
0.3 V(p-p)/75 C
S-video-C:
1.0 V(p-p)/75 C
Component-Y:
0.7 V(p-p)/75 C
Component-P B /P R :
0.7 V(p-p)/75 C
RGB:
Tuner section
Tuning Range
FM: 87.50 MHz to 108.00 MHz
AM (MW): 522 kHz to 1 629 kHz
General
Power Requirements: AC 230 V
Power Consumption: 19 W (at operation)
1.4 W (in standby mode)
Dimensions (W M H M D):
400 mm M 85 mm M 399 mm
Mass: 4.2 kg
, 50 Hz
7 Subwoofer (SP-PWC3)
Amplifier section
140W per channel, RMS at 4 C at
Front:
1 kHz, with 10% total harmonic
distortion.
130W per channel, RMS at 4 C at
Center/Surround:
1 kHz, with 10% total harmonic
distortion.
140 W, RMS at 4 C at 100 Hz, with
Subwoofer:
10% total harmonic distortion.
Speaker section
Speaker unit: 16 cm Bass-reflex
Power Handling Capacity: 140 W
4 C
Impedance:
Frequency Range: 30 Hz to 200 Hz
General
Power Requirements: AC 230 V
Power Consumption: 135 W (at operation)
0 W (in standby mode)
Dimensions (W M H M D):
169 mm M 411 mm M 459 mm
Mass: 11.3 kg
7 Satellite Speakers — SP-XTHC3
Front speakers (SP-THC3F)
Speaker unit: 8.0 cm cone
1.5 cm dome
Bass-reflex, Magnetically Shielded
Power Handling Capacity: 140 W
4 C
Impedance:
Frequency Range: 80 Hz to 20 kHz
Dimensions (W M H M D):
104.5 mm M 139 mm M 101 mm
Mass: 0.56 kg each
Center speaker (SP-THC3C)
Speaker unit: 8.0 cm cone
1.5 cm dome
Bass-reflex, Magnetically Shielded
Power Handling Capacity: 140 W
4 C
Impedance:
Frequency Range: 80 Hz to 20 kHz
Dimensions (W M H M D):
137 mm M 105 mm M 104.5 mm
Mass: 0.57 kg
Surround speakers (SP-THC3S)
Speaker unit: 8.0 cm cone
Bass-reflex
Power Handling Capacity: 140 W
4 C
Impedance:
Frequency Range: 80 Hz to 20 kHz
Dimensions (W M H M D):
111.5 mm M 148 mm M 106.5 mm
Mass: 0.56 kg each
Designs & specifications are subject to change without notice.
