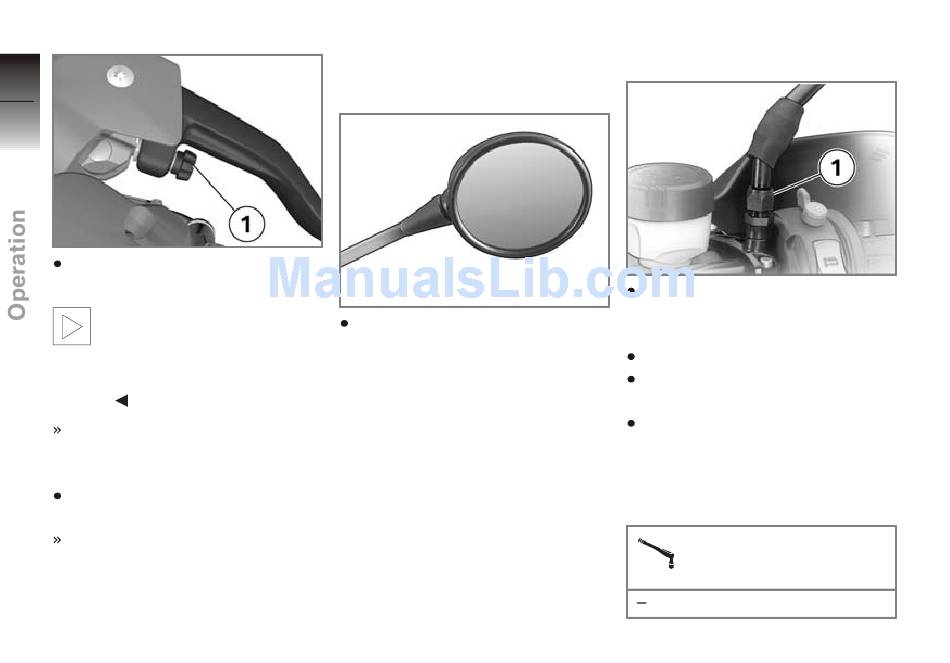

Turn adjusting screw 1 clock-
wise.
z
The adjusting screw has
a limit position and can
be turned more easily when
you press the handbrake lever
forward.
Distance between handlebar
grip and handbrake lever in-
creases.
Turn adjusting screw 1 coun-
terclockwise.
Distance between handlebar
grip and handbrake lever de-
creases.

Mirrors

Adjusting mirrors
Move mirror into desired posi-
tion by twisting.
Adjusting mirror arm
Slide up protective cap over
threaded fastener on mirror
arm.
Loosen nut 1.
Turn mirror arm into desired
position.
Tighten the nut to the spec-
ified tightening torque, while
holding the mirror arm to en-
sure that it does not move out
of position.
Mirror on clamping piece
18 lb/ft (25 Nm)
