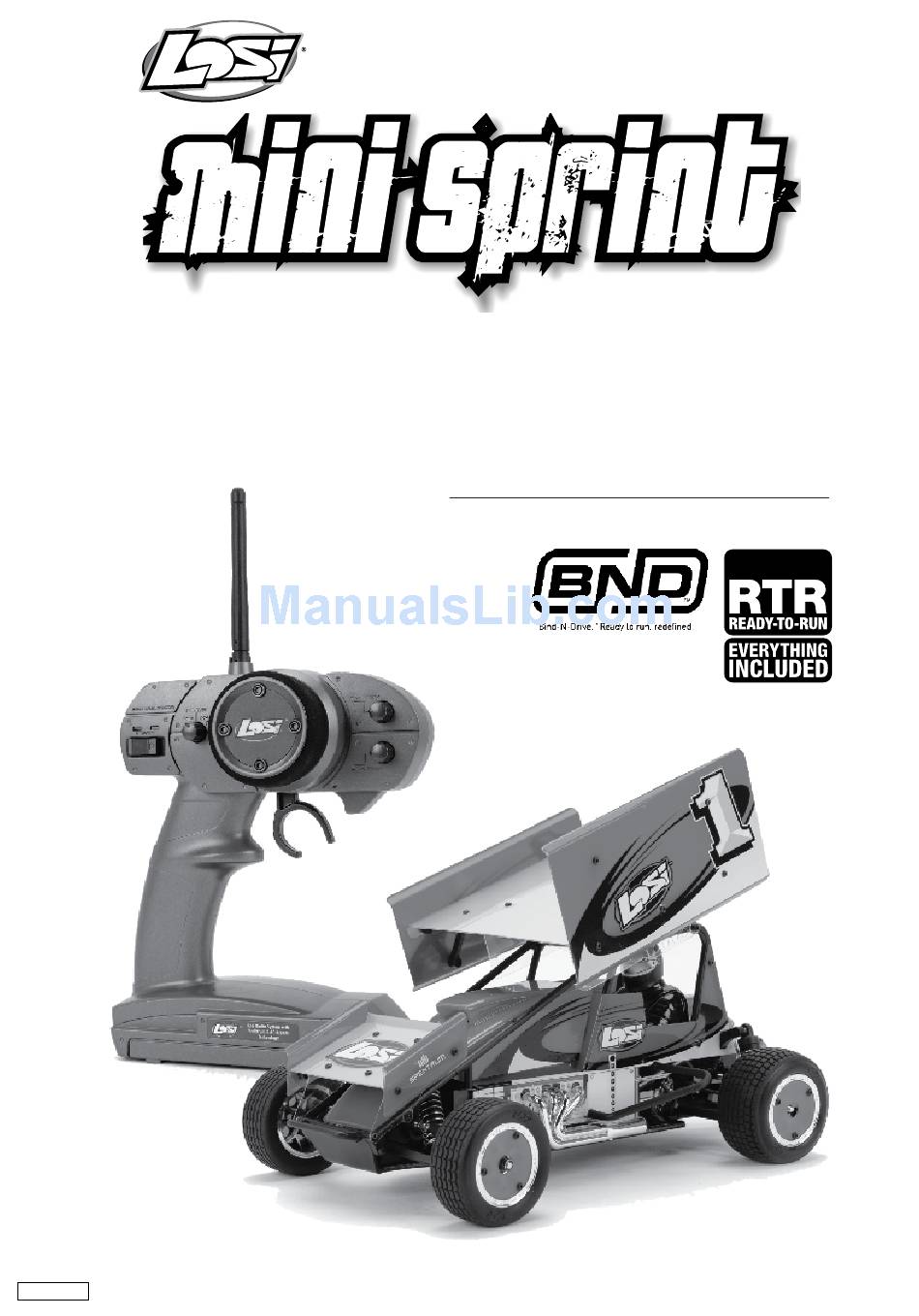

Thank you for choosing the Mini Sprint from Losi. This guide contains the basic instructions for
operating your new Mini Sprint. While the Mini Sprint is great for first-time R/C drivers, it does require
some mechanical experience and/or parental supervision for drivers under 14. It is critical that you
read all of the instructions in order to operate your model correctly and avoid unnecessary damage.
Please take a moment to look over all the printed materials before operating your new Mini Sprint.
800-0436
1/18 SCALE
Operation Manual
MINI SPRINT CAR
®
Age recommendation
14 years or over. This is not a toy. This product is not
intended for use by children without adult supervision.
©2010 Horizon Hobby Inc.
Printed 6/2010
Advertisement
Table of Contents
Related Manuals for Team Losi Mini Sprint
Summary of Contents for Team Losi Mini Sprint
- Page 1 Thank you for choosing the Mini Sprint from Losi. This guide contains the basic instructions for operating your new Mini Sprint. While the Mini Sprint is great for first-time R/C drivers, it does require some mechanical experience and/or parental supervision for drivers under 14. It is critical that you read all of the instructions in order to operate your model correctly and avoid unnecessary damage.
-
Page 2: Quick Start
NOTICE: All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. - Page 3 Plug the battery pack into the charger and let it charge for 3 hours for the first time. After running, or when the Mini Sprint slows noticeably, recharge the battery pack for 5 to 6 hours for a full charge.
-
Page 4: Getting Started
GETTING STARTED STEP Always turn on the transmitter first by sliding the switch on the left side of the wheel from left to right. The small red and green lights above the switch should both light up. If not ,you need to check for low or incorrectly installed batteries. -
Page 5: Troubleshooting Guide
Guide Mini Sprint Troubleshooting Guide Doesn’t operate Battery not charged or plugged in Charge battery / plug-in Receiver switch not “On” Turn on receiver switch Transmitter not “On” or low battery Turn on / replace batteries Motor runs but rear... -
Page 6: Safety Precautions
The following is an overview of the various functions and adjustments found on the Mini Sprint radio system. Since the Mini Sprint operates on a radio signal you control, it is important for you to read and understand about all of these functions and adjustments before driving. -
Page 7: Esc Specifications
esc SPECIFICATIONS Supports LiPo / NiMh battery type 2 different modes: 1. Forward/Reverse & Smart Brake Mode 2. Forward only Mode One touch setup LED indicator Immediately after ESC is turned ON (for 2 sec): Only the RED LED flashing = LiPo Battery Only the GREEN LED flashing = NiMh Battery During Normal Operation: Stop/Neutral (Depends on Mode)-Fwd/Reverse Mode = GREEN LED on solid... - Page 8 esc setup procedure Battery Selection: When the ESC is turned on the LED will flash for 2 seconds to indicate the Selected Battery Type. While the LED is flashing you can press the button to select the other battery type. After the button is pressed the LED will be flash for 2 more seconds.
- Page 9 Re-Binding the Transmitter to the Receiver The Losi DSM radio system included in the Mini Sprint operates on 2.4 GHz, and provides 79 different channels which are automatically selected when the transmitter and vehicle are turned on. The communication between the transmitter and receiver starts in the few seconds after the transmitter and vehicle are both turned on.
-
Page 10: Chassis Tuning
When adjusted properly, you should be able to hold the rear tires firmly and barely be able to push the spur gear forward with your thumb. To track test, turn the Mini Sprint on and place it on the ground. As you push it backwards allowing it to roll freely, punch the throttle. - Page 11 Ride Height This is the height the chassis sits and runs at. Spring spacers included with the Mini Sprint, when installed between the shock top and spring, will increase the pre-load on the spring and raise the chassis. You may want to try this when running on extremely rough surfaces.
- Page 12 Changing to a smaller pinion will give you quicker acceleration and possibly a bit longer run time. This would be good for short layouts or when running hotter motors. The pinion on the Mini Sprint offers the best balance of both. To change the pinion, loosen the motor screws, and slide the motor back.
-
Page 13: Losi Dsm Radio System
LOSI DSM Radio System This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400 GHz to 2.4835 GHz frequency range. -
Page 14: Warranty Services
Warranty Information Warranty Period asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be Exclusive Warranty- Horizon Hobby, Inc., (Horizon) assumed nor accepted for any resulting damage or injury. warranties that the Products purchased (the "Product") By the act of use, setup or assembly, the user accepts all will be free from defects in materials and workmanship at resulting liability. -
Page 15: Warranty Information
COMPLIANCE INFORMATION FOR THE EUROPEAN UNION DECLARATION OF CONFORMITY (in accordance with ISO/IEC 17050-1) (in accordance with ISO/IEC 17050-1) No. HH20100704 No. HH20100409 Product(s): Losi Mini Sprint Product(s): 1/18 Mini-Sprint Bind & Drive Item Number(s): LOSB0206 Item Number(s): LOSB0206BD Equipment class:... - Page 16 INSTRUCTION FOR DISPOSAL OF WEEE BY USERS IN THE EUROPEAN UNION This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
