CMO Operations & Logistics
Multimedia Creation & Support
Bochum / Germany
nokia
6101
RM-76/RM-77
Transceiver characteristics:
• Tri-band GSM coverage on up to five continents
• 6101 RM-76 (GSM 900/1800/1900)
RM-77 (GSM 850/1800/1900)
• 6102 RM-76 (GSM 900/1800/1900)
RM-77 (GSM 850/1800/1900)
• 6103 RM-161 (GSM 900/1800/1900)
• 6102i RM-162 (GSM 850/1800/1900)
• Digital VGA camera
• Two color displays: 128 x 160 pixel internal display
with up to 65,536 colors and external mini display
• Video recording and playback
• FM stereo radio and headset
• XHTML browser
• Five-way navigation key including select key
Email: supports SMTP, POP3, and IMAP4 protocols
•
3.5 MB internal shared memory
•
• Infrared
• Bluetooth (6103 RM-161/162; 6102i RM-162 only)
• USB with Pop-Port™ Connector
• Integrated XHTML browser connects over TCP/IP
• EDGE, class 6: download speed up to 177.6 kbps, uplink speed up
to 118.4 kbps
• GPRS class 10: download speed up to 85.6 kbps, uplink speed up
to 42.8 kbps
• HSCSD class 6: downlink speed up to 43.2 kbps, uplink speed up
to 28.8 kbps TCP/IP

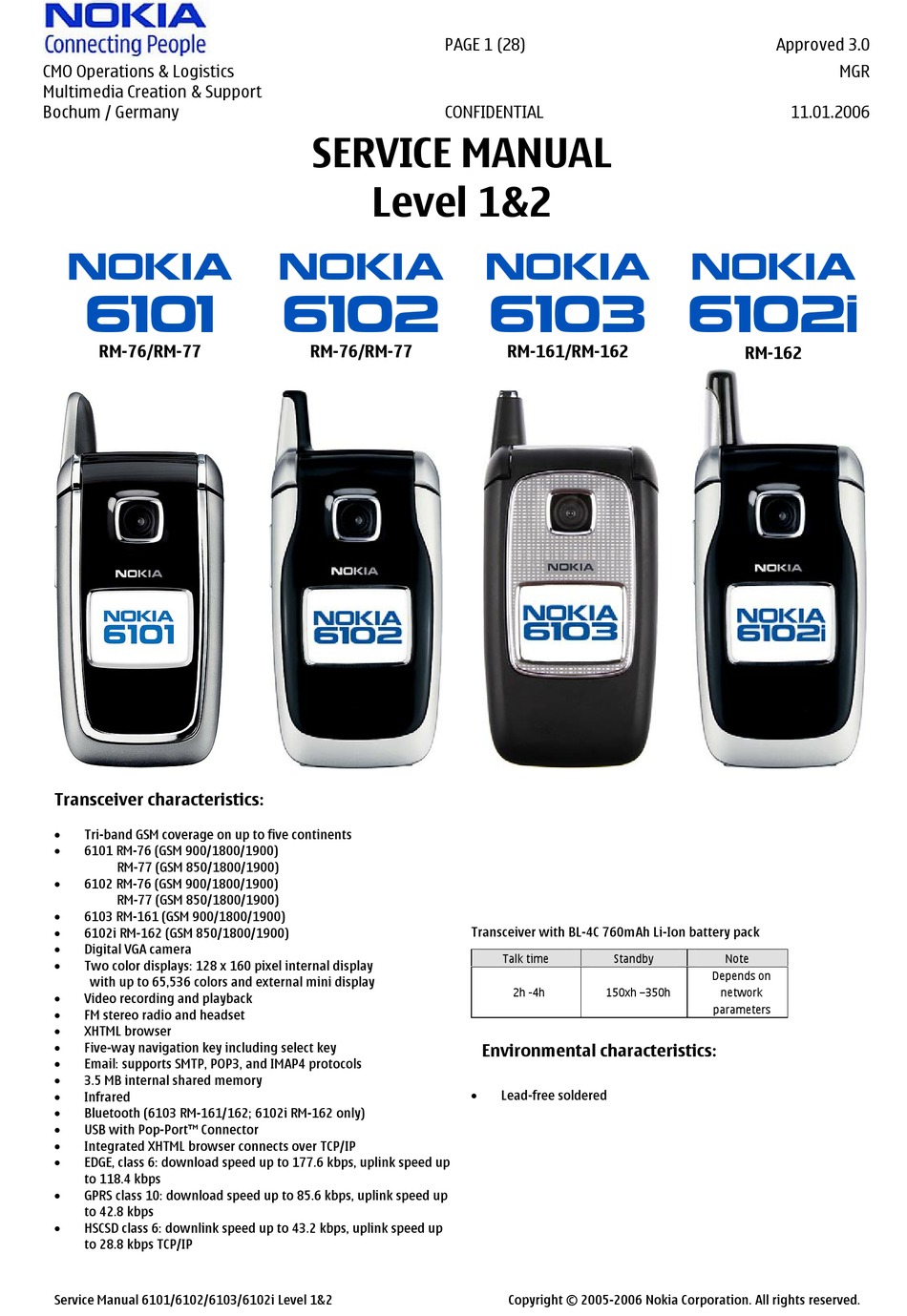

Service Manual 6101/6102/6103/6102i Level 1&2
PAGE 1 (28)
CONFIDENTIAL
SERVICE MANUAL
Level 1&2
nokia
6102
RM-76/RM-77
nokia
6103
RM-161/RM-162
Transceiver with BL-4C 760mAh Li-Ion battery pack
Talk time Standby
2h -4h 150xh –350h
Environmental characteristics:
• Lead-free soldered
Copyright © 2005-2006 Nokia Corporation. All rights reserved.
Approved 3.0
MGR
11.01.2006
nokia
6102i
RM-162
Note
Depends on
network
parameters
