York V* Series Technical Manual

TECHNICAL GUIDE
MAXA-MI$ER
V* Series
Unitized Energy Recovery
Ventilators

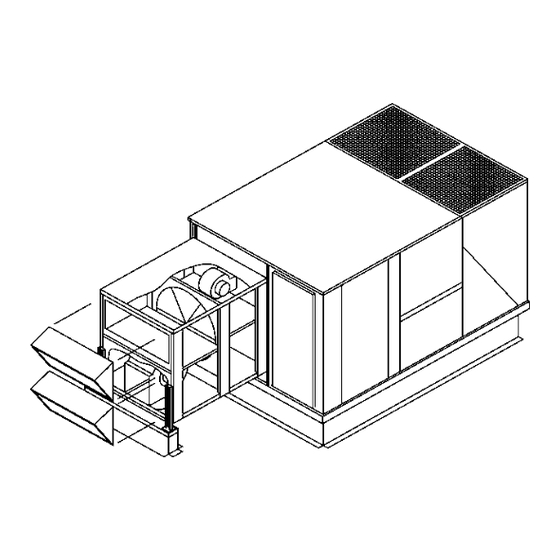

ERV Unit with a Champion® Series Packaged Unit
RV Unit with Predator® Packaged Unit
ERV Unit with Sunline® Packaged Unit
Energy recovery COMPONENT
accordance with ARI Standard 1060-2000 and
certified to ARI. Actual performance in packaged
equipment may vary.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
®

DESCRIPTION

•
•
•
®
•
•
•
•
•
•
•
•
•
•
•
•
•
•
rated in
Reduces cooling load at design temperatures up to 4 tons per
1000 cfm of outside air.
Reduces heating load up to 2.5 Tons Btuh per 1000 CFM of out-
side air.
Dry energy transfer. Moisture in supply (intake) air stream is
transferred to exhaust air stream in a vapor state, eliminating
condensate plumbing from the UERV.
Attaches directly to the York rooftop units. All mounting equip-
ment is provided.
Separate fused power supply.
Filters / mist eliminators are provided on the entering air open-
ings.
Adjustable support legs are provided.
Two modes of operation (Pivoting Wheel Models only)
• Recovery mode during normal energy recovery operation.
• True economizer mode when outside sensor calls for
economizer operation (3 - 12.5 ton packaged units
equipped with economizers). U. S. Patent 5,548,970.
Pivoting wheel models used with packaged unit with econo-
mizer. Sequence of operation controlled by economizer. (select
models only)
Balancing dampers provided on VR, VH and VU Modules.
(Except Millennium or VR74 and VR122)
Centrifugal blowers (both intake and exhaust for high static
capability and low sound levels).
Heavy gauge galvanized steel cabinets corrosion protected with
powder paint process that match York units.
Fully insulated cabinet.
ARI certified internal enthalpy wheel is provided.
Internal enthalpy wheel made of polymeric material with silica
gel impregnated into the material. The enthalpy wheel has a
five year limited warranty.
Internal enthalpy wheels are easily cleanable. Large wheels (25
inch diameter and above) are split into easily removable pie
segments. Smaller wheels can be removed from the ERV.
Continuous operation down to 10 ºF (-12 ºC) without defrost at
indoor relative humidity up to 40%. For temperatures below 10
ºF (-12 ºC), Optional Low Ambient Control Kit is required. Kit
includes temperature sensor to control the ERV before frost
build up can occur on recovery wheel.
®
Note: MAXA-MI$ER UERV's are designed for use with
rooftops using 14" high or greater roof curbs.
ETL Certified per UL 1995 and CSA 22.2
246681-YTG-B-0607
