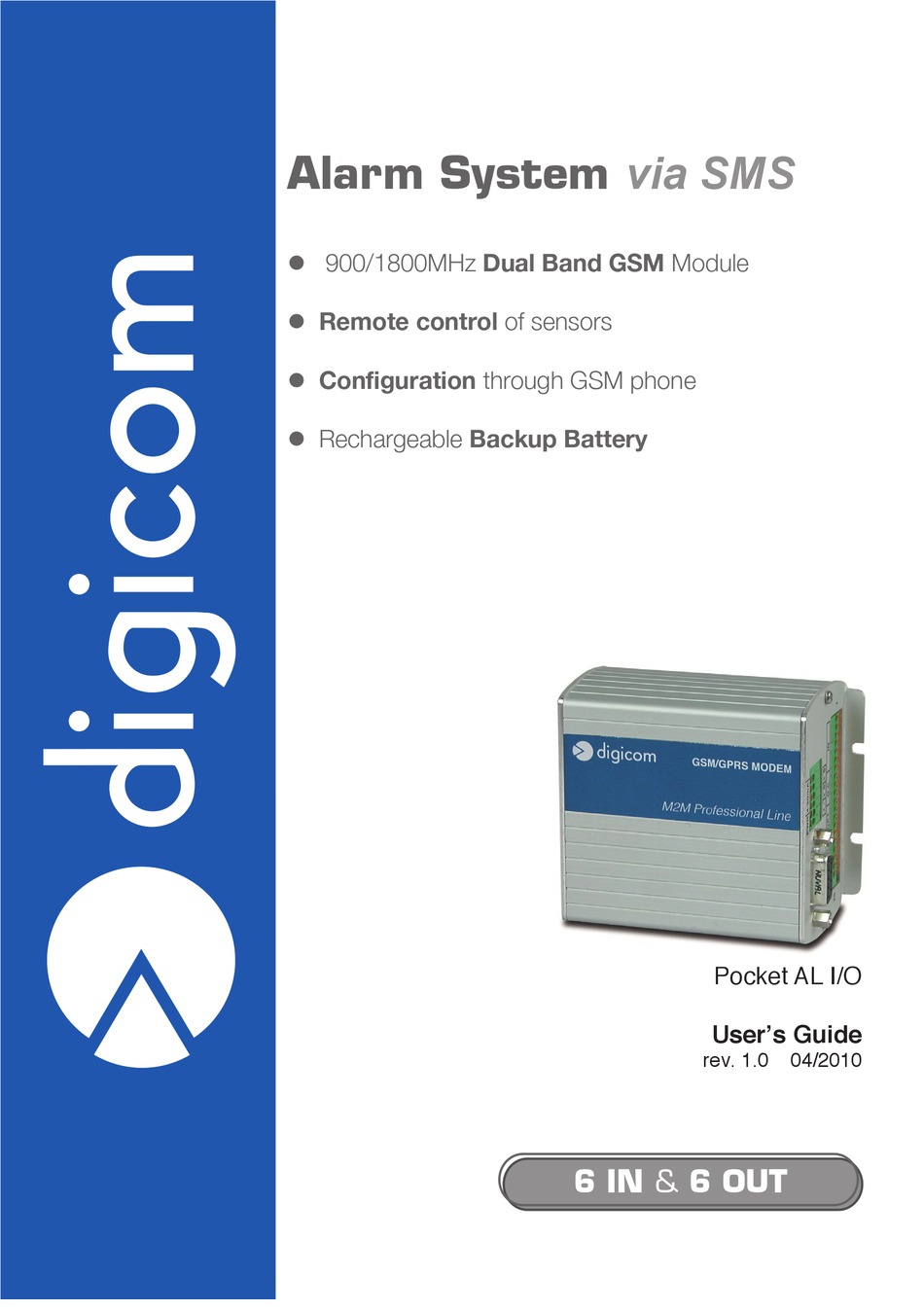

- Page 1 Alarm System via SMS 900/1800MHz Dual Band GSM Module Remote control of sensors Configuration through GSM phone Rechargeable Backup Battery Pocket AL I/O User’s Guide rev. 1.0 04/2010 6 IN & 6 OUT...
-
Page 3: Table Of Contents
3.8.3. Standby confirmation meSSage ........................3.12 3.9. CONTACTS STATuS CHECK ......................3.13 3.9.1. device StatuS forwarding ..........................3.13 MANAGEMENT THROUGH RING ........................ 4.1 POCKET AL I/O APPLICATIONS ........................5.1 5.1. M2M APPLICATION ..........................5.1 5.1.2. alarm meSSageS ..............................5.1 5.1.3. outputS management ............................5.1 5.1.4. -
Page 4: Preface
OF CONFORMITY We, Digicom S.p.A., with registered office at Cardano al Campo (VA - Italy) - Via Volta 39, declare under our sole responsibility, that the products named Pocket AL I/O, to which this declaration refers to, satisfy the essential requirements of following Directive: - 1999/5/CE 9th March 1999, R&TTE (concerning radio equipment and telecommunication terminal equipment and the... -
Page 5: Safety Warnings
Pocket AL I/O Index - Preface SAFETY WARNINGS Read these instructions and norms carefully before powering the device.Violation of such norms may be illegal and cause hazard situations. For any of the described situations please refer to the specific instructions and norms. - Page 6 Pocket AL I/O Index - Preface INFORMATION FOR USERS According to the 2002/95/CE, 2002/96/CE and 2003/108/CE Directives, relative to reduction in the use of hazardous substances in electrical and electronic apparatus, as well as to disposal of waste materials. The symbol of a crossed box applied on the apparatus or on its package indicates that at the end of its useful life the product must be collected separately from other waste materials.
-
Page 7: Introduction
Furthermore you will be able to remote interact by sending appropriate SMS that will pilot the opening/closing of the outputs. Pocket AL I/O has been designed to operate with the networks of all the GSM operators both directly and in roaming mode. -
Page 9: Installation
Before going on with the configuration, it is necessary to complete the hardware installation of Pocket AL I/O. Connect the sensors to the input contacts of Pocket AL I/O and then connect the eventual devices to be remote piloted to the output pins. When Pocket AL I/O receives the configuration messages, it will store the current situation of that input as “non alarmed”... - Page 10 470Ω to limit the current. If you want to control the 230V bulb through the open collector output of Pocket AL I/O, you must connect to Pocket AL I/O an external relay and a protection diode for the internal transistor. In this case it is necessary to build a little external circuit inserting a 1N4007 or 1N4148 diode and then to connect a proper relay.
-
Page 11: Relay Outputs
Pocket AL I/O supports both active and passive 4-20mA sensors. Passive Sensors Pocket AL I/O manages passive sensors that have a maximum power of 12V. Connect the sensor between pins 3 and 4 or between pins 5 and 6 of the 6 PIN terminal board. -
Page 12: Connection Of External Antenna
SIM, press on it and push it inside the device, then release it. 2.1.6. Power supply Pocket AL I/O power supply is between 5 and 32 Vcc (Pwr of 6 PIN terminal board). With a 12Vcc power supply give at least 500mA. -
Page 13: Powering On For The First Time
• At the first power on check the status of Power and Status led. • After few seconds Pocket AL I/O will register to the GSM network and the Power led will start blinking; the Status led will give the indication of the signal. -
Page 15: Configuration
Pocket AL I/O is setup with simple configuration commands through the RS232 serial interface (terminal emulator set at 115200bps, 8, N,1) or through SMS messages using a standard mobile phone, to the SIM card number inserted in Pocket AL I/O. -
Page 16: Description Of Configuration Messages
When sending the SMS, the GSM network may communicate to the Services Center that the message has not been delivered: in these cases Pocket AL I/O will go on with the next number. Once the user list is over, it will wait for 1 minute and it will try again with the unsuccessful numbers. -
Page 17: Starting Configuration
#ACCLIST#+393351234567#+393409876543# #ACCLIST#0# 3.3.2. Configuration of device ID It allows the configuration of the device ID. This will be inserted in all the messages sent by Pocket AL I/O to allow the user receiving the SMS to recognize the sender. Command:... -
Page 18: Configuration Test
#CONFIG# Pocket AL I/O will send the configuration of all the set contacts. If the command is sent via SMS, Pocket AL I/O will answer the message by formatting the replay in one or more messages. Example of configuration forwarding... -
Page 19: Search For Gsm Network
GSM service. In these cases the GSM operator may disable the device from the GSM cell to which it is registered (ETSI 070905) cutting off Pocket AL I/O. For this reason Pocket AL I/O makes an automatic search of the GSM network. It is also possible to set the periodical update for the registration to the GSM network. -
Page 20: Digital Inputs Configuration
OPEN or CLOSED. Pocket AL I/O can be set to send the alarm ON message when the changing from “alarm off” to “alarm on” is detected and to send the alarm OFF message when the contact returns in “alarm off” status. -
Page 21: Sms Alarm Messages
1)GasAlarm OFF 3.5. ANAlOG INPUTS CONfIGURATION Pocket AL I/O can read the values of two analog inputs where it is possible to connect analog sensors that operate with 4-20mA power. To each single contact you can associate an input mnemonic name, 2 threshold values that can define 3 or 2 zones and the detection interval. -
Page 22: Sms Alarm Messages
3.6. OUTPUT CONfIGURATION Pocket AL I/O is equipped with four digital outputs (Open Collector) and two relays outputs to remote interact after an alarm signalling, for example to open or to close a tank valve after the detection of exceeded level. -
Page 23: Outputs Status Modification (Sms Messages)
After Pocket AL I/O receives the command, it will modify the output current status into the opposite status for the period defined by x. When the period defined by x is over, Pocket AL I/O will automatically restore the previous status. Pocket AL I/O will notify the output current status after the automatic restore, then after x seconds. -
Page 24: Backup Battery Configuration
Pocket AL I/O factory configuration (default) foresees that when there is no power the device immediately turns off (disabled battery). The user must set the battery management as needed. Pocket AL I/O can be set so that when there is no power, the battery becomes operative for a set time (from 1 to 60 minutes). -
Page 25: Standby Management
For particular needs you can also leave Pocket AL I/O always in Standby status. In this way, as you will not be automatically informed, you can verify the inputs status by remote querying Pocket AL I/O with the #TEST# message described in the next paragraph. -
Page 26: Standby Confirmation Message
Pocket AL I/O Configuration 3.8.3. Standby confirmation message The enabling and disabling of STANDBY status must be confirmed with an SMS message; Pocket AL I/O will send it only to the authorized user that requested it. • Pocket AL I/O ID •... -
Page 27: Contacts Status Check
STATUS: OFF = Pocket AL I/O disabled in Standby condition Pocket AL I/O will send the current status of all the set contacts. If the requested information cannot be inserted in a sole SMS, it will be necessary to send multiple SMS. The contacts that haven't been already set will not be inserted in the configuration. -
Page 29: Management Through Ring
4. MANAGEMENT THROUGH RING Pocket AL I/O can be set to perform some actions when it receives a phone ring. This operating mode, if compared with the SMS one, is free of charge as Pocket AL I/O will manage the action associated to the phone ring without answering the call. -
Page 31: Pocket Al I/O Applications
5.1. M2M APPLICATION In this application a couple of Pocket AL I/O interacts without the presence of a user. After an input status change of the first device a notification is sent directly to the second Pocket that will open or close the output. -
Page 32: Particular Managements
Cancellation user 2 To test the configuration: #Ux?# Pocket AL I/O will send back the single user configuration. #U?# Pocket AL I/O will send back all the users list and the key of the output associated to the GATE application. - Page 36 Italy 21010 Cardano al Campo VA via Alessandro Volta 39 http://www.digicom.it...
